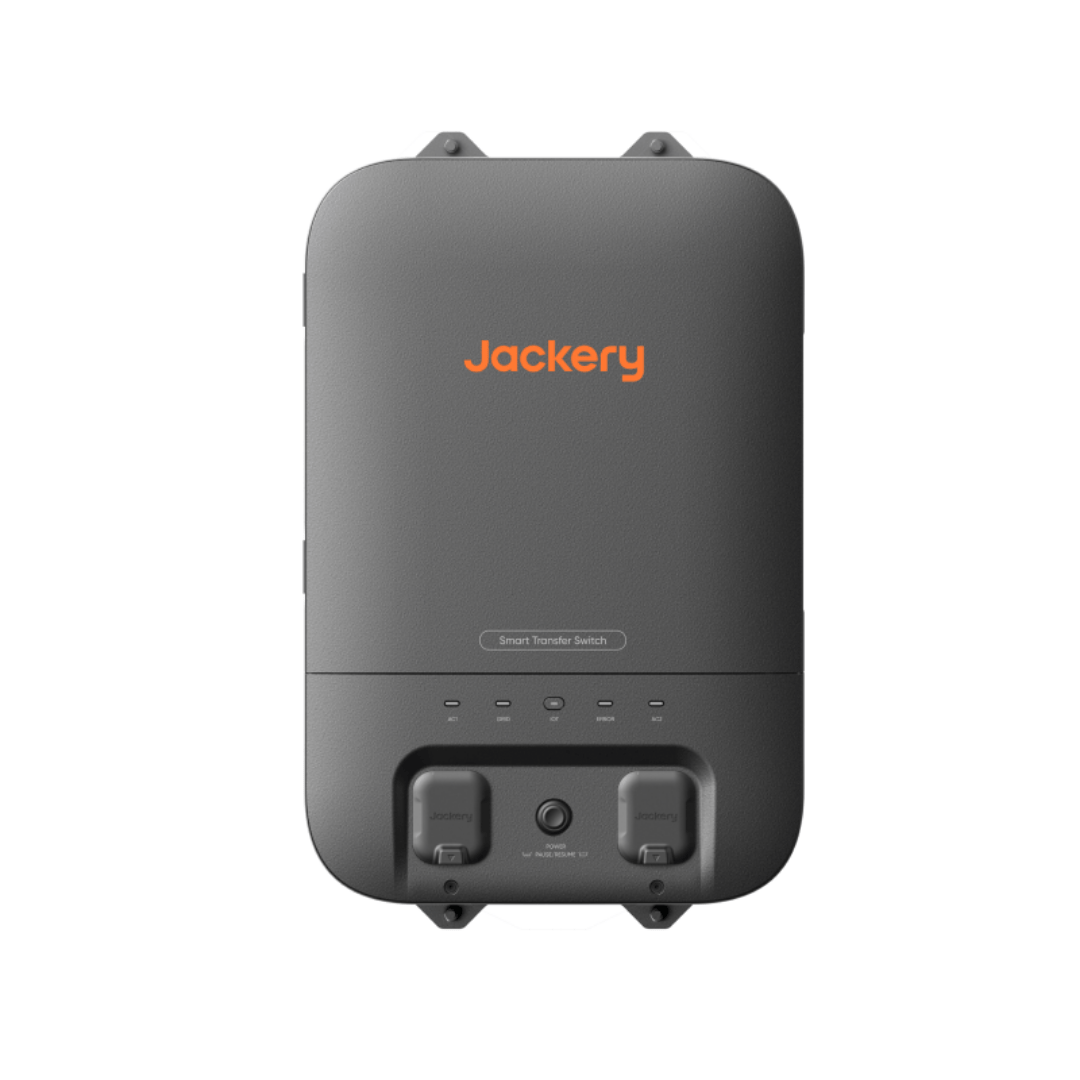

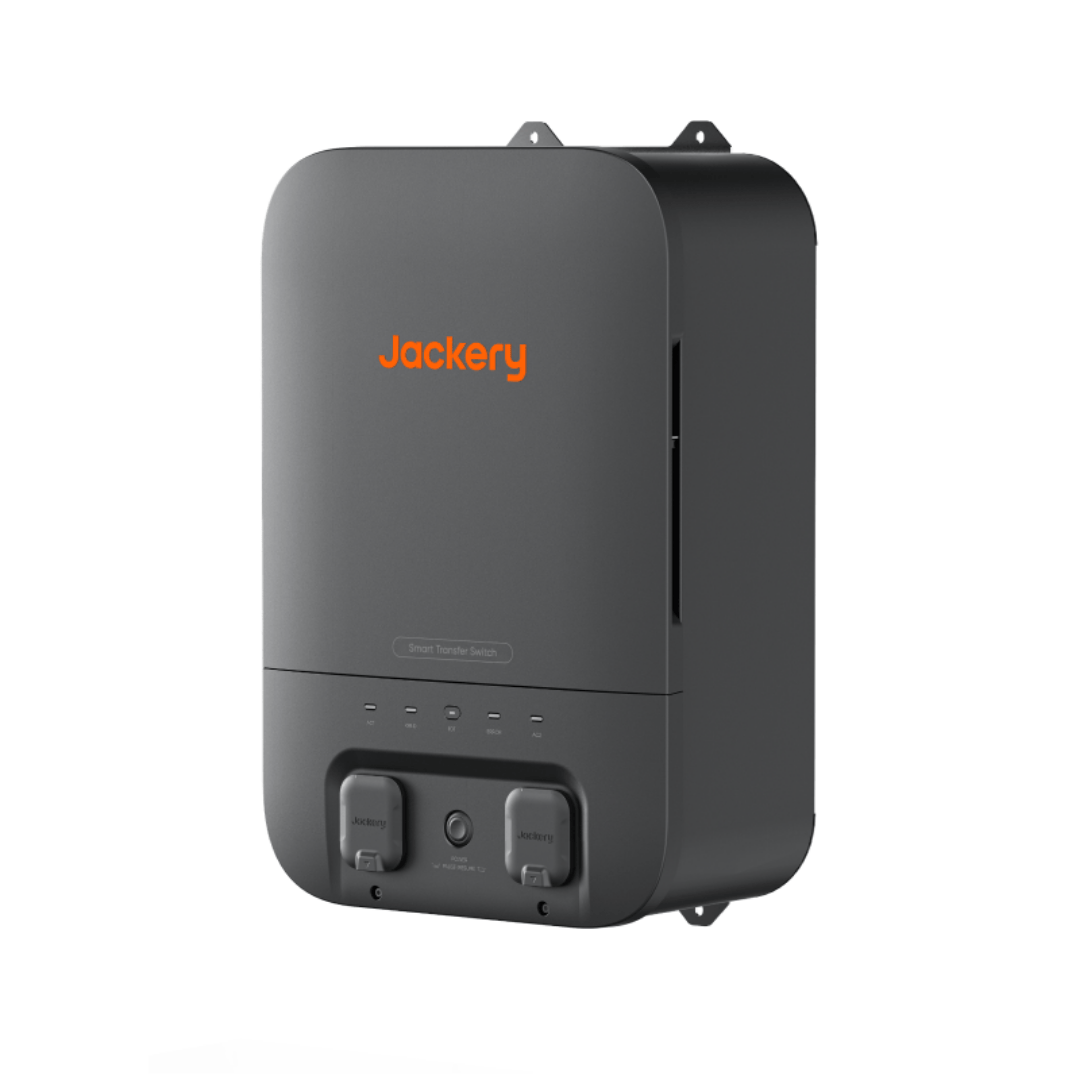

Jackery Smart Transfer Switch

EXCLUSIVELY FOR THE EXPLORER 5000 PLUS

Power Your Home with the Jackery Transfer Switch

The Jackery Smart Transfer Switch provides UPS backup within 20ms, keeping essential devices running during power outages.

Built to work exclusively with the Jackery Explorer 5000 Plus, it delivers a seamless power switch between solar panels, rooftop PV systems, and grid power.

Take Control with the Smart Transfer Switch

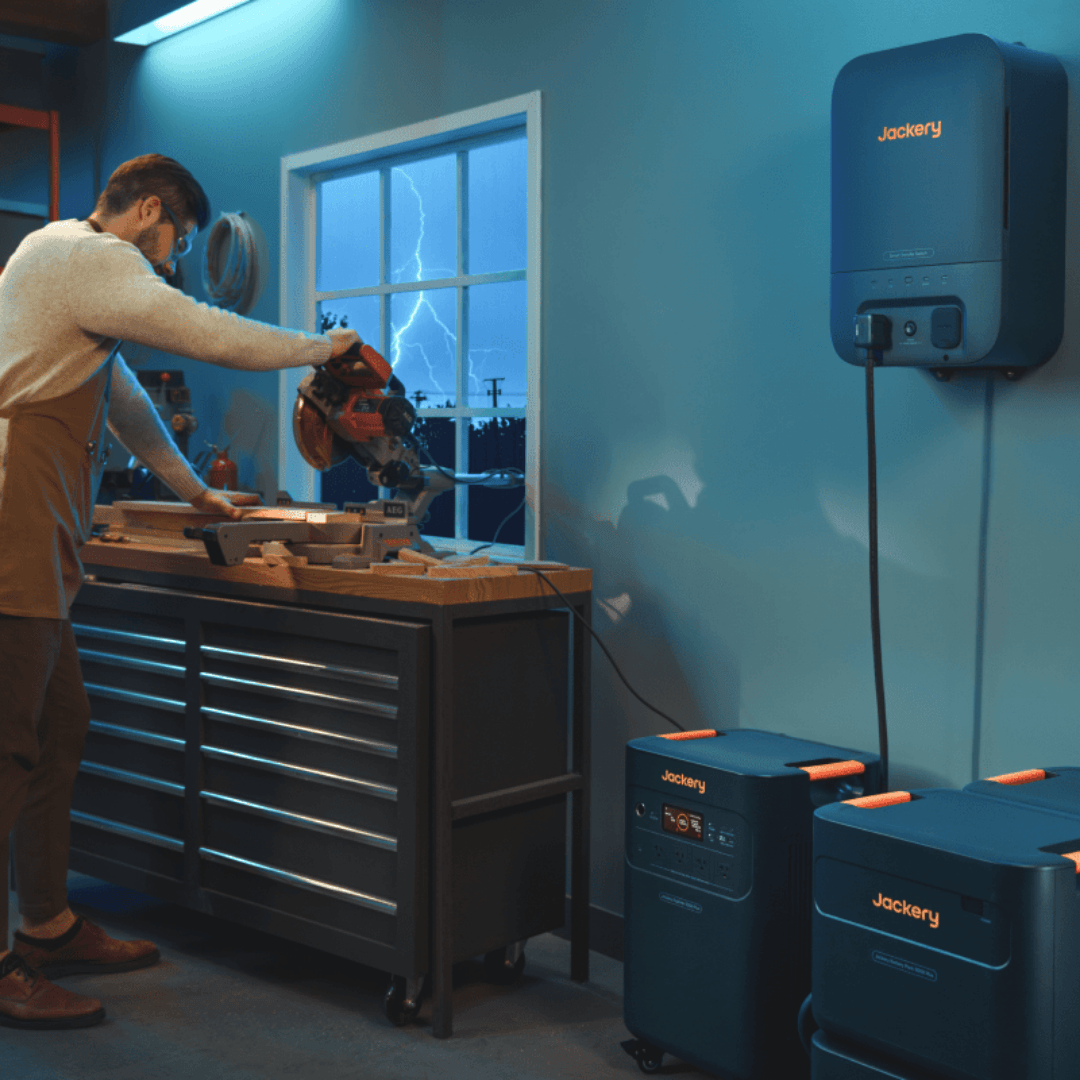

Pair the Jackery Smart Transfer Switch with your Jackery solar generator for a reliable backup power solution. Monitor circuits, energy usage, and storage level with smart app control for greater efficiency and optimized energy consumption.

Keep Essentials Running with Jackery UPS

From refrigerators to network services, sump pumps, and well pumps, the Jackery UPS supports up to 12 essential household circuits. With uninterrupted operation and a quick 0.02s transfer, your essential appliances never stop.

Simplify Power Management with a Battery Transfer Switch

The battery transfer switch helps reduce electricity costs by enabling charging-discharging mode. It automatically switches between stored and grid power during peak hours, ensuring efficient energy consumption and greater savings.

Rely on a Transfer Switch for Solar Energy

Thistransfer switch for solar integrates smoothly with rooftop PV systems, giving you a clean and sustainable energy source. It’s compact, maintenance-free, and built for efficient indoor use.

Install Your Smart Generator Transfer Switch with Ease

The smart generator transfer switch is lightweight and simple to set up. We recommend using your own certified electrician, assigned electrician, or trusted third-party installation companies.

Jackery provides installation videos, the STS user guide, and tech support, but installation is the customer’s responsibility and at their own expense.

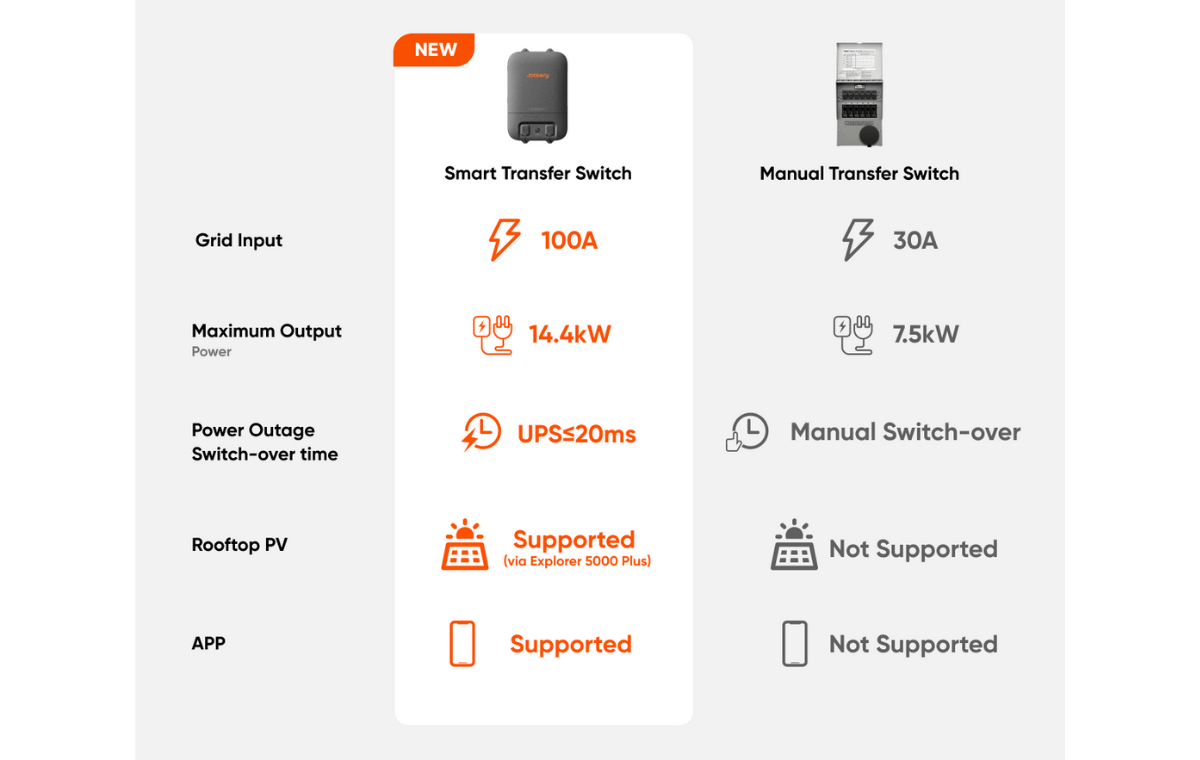

Smart vs. Manual Jackery Transfer Switch

The Jackery Smart Transfer Switch offers app-based monitoring, UPS backup, and automatic switching for greater efficiency. The manual transfer switch requires direct user control and does not provide automatic UPS backup.

Why Choose the Jackery Smart Transfer Switch?

• Seamless 20ms UPS backup
• Works only with Jackery Explorer 5000 Plus (essential requirement)
• Smart app management for real-time energy usage
• Supports solar input and multiple power sources
• Compact, reliable, and built for essential household circuits

Jackery Smart Transfer Switch Specs

• Model No.: JA-TS02A

• AC Voltage (Nominal): 120V/240V~ 60Hz

• Feed-In Type: Split Phase

• Max Input Current: 100A Grid / 60A Power Station

• Max Output Current: 60A Home Load / 33.4A Power Station

• Max Input Short-Circuit Current: 10KA

• Overvoltage Category: IV

• UPS Backup Time: ≤20ms

• Enclosure Type: NEMA Type 1 Distribution Panel

• Number of Load Branches: 12

• Main Circuit: 2 AWG

• Branch Circuit: 14 AWG / 12 AWG / 10 AWG

• Communication: Wi-Fi & Bluetooth

• Operating Temp: -20°C~40°C (-4°F~104°F)

• Weight: 25.57 lbs / 11.6 kg

• Dimensions: 22 x 14.7 x 7.87 in (56 x 37.4 x 20 cm)

Package Includes:

• Jackery Smart Transfer Switch

• Marking-off Template

• Power Input/Output Cable

• 2 × Wall Bracket

• 4 × M4 Phillips Flat Head Screw

• User Manual

Jackery Smart Transfer Switch Manual

Jackery Smart Transfer Switch Installation Manual

Jackery Smart Transfer Switch Removal Manual

Frequently Asked Questions

How does Jackery Smart Transfer Switch work?
The Jackery Smart Transfer Switch detects grid outages and switches power within 20ms to the Jackery Explorer 5000 Plus, keeping essential circuits active.

Is the Jackery Smart Transfer Switch compatible with all Jackery products?
No, it only works with the Jackery Explorer 5000 Plus and must be paired via the Jackery app.

Can I install the Smart Transfer Switch myself?
Yes, but we recommend hiring your own certified electrician or third-party installation companies for safety and compliance.

What appliances can the Jackery Smart Transfer Switch power?
It supports up to 12 essential circuits, including refrigerators, sump pumps, well pumps, lighting, and network services.
