Mango Power S Pro Microinverter 5000W set
$1,709.00 - $1,838.00$2,109.00 - $2,238.00
✅ Authorized Dealer for Mango Power
🟢
Availability: In Stock. Secure Your Order TODAY!
📦
SKU: MPS01US1N002
- 🥭 Free Shipping & No Tax!
- 🚚 Ships in 1-5 Business Days
Have Questions?
Chat, Call, or Text a Specialist
Found a better price? We will match or beat it! 1-844-945-3625
- Description
- Installation and State Regulations
- Federal Solar Tax Credit
- Best Price Guarantee!
- Why Buy From Us
Description

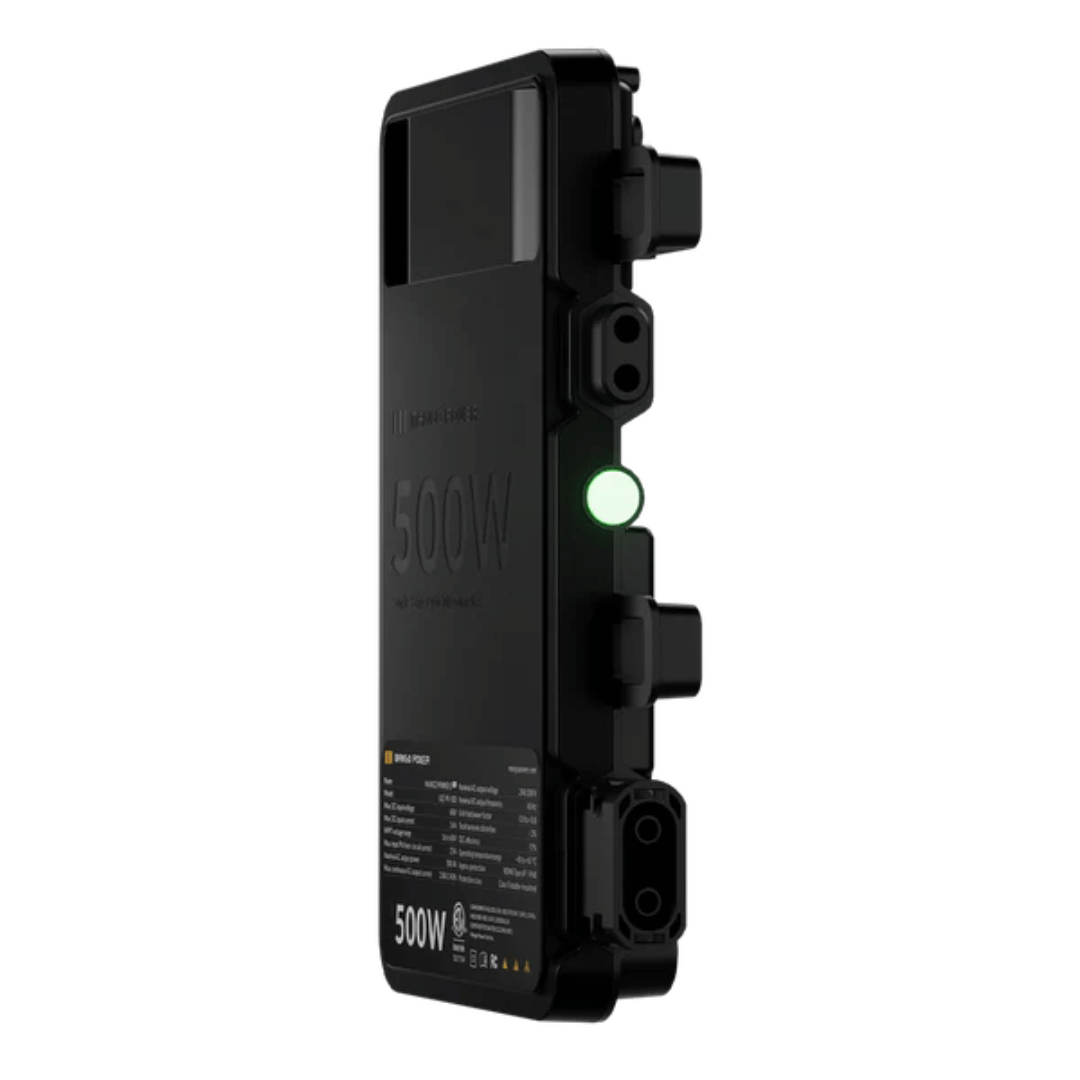

Mango Power S Pro Microinverter 5000W Set: Peak Efficiency for Rooftop Solar
Transform your home into a powerhouse of clean energy with the Mango Power S Pro Microinverter 5000W Set. Recognized as a top-tier single-stage cyclo microinverter system, this comprehensive set is engineered specifically for permanent rooftop installations. Delivering an impressive 97% CEC efficiency and 99.9% MPPT efficiency, this 5000W solar microinverter set ensures highly precise and stable power tracking. By converting DC power to AC power directly at the module level, it offers a streamlined, highly reliable path for your energy, giving you complete peace of mind and maximum solar harvest from sunrise to sunset.
Important Installation Notes:

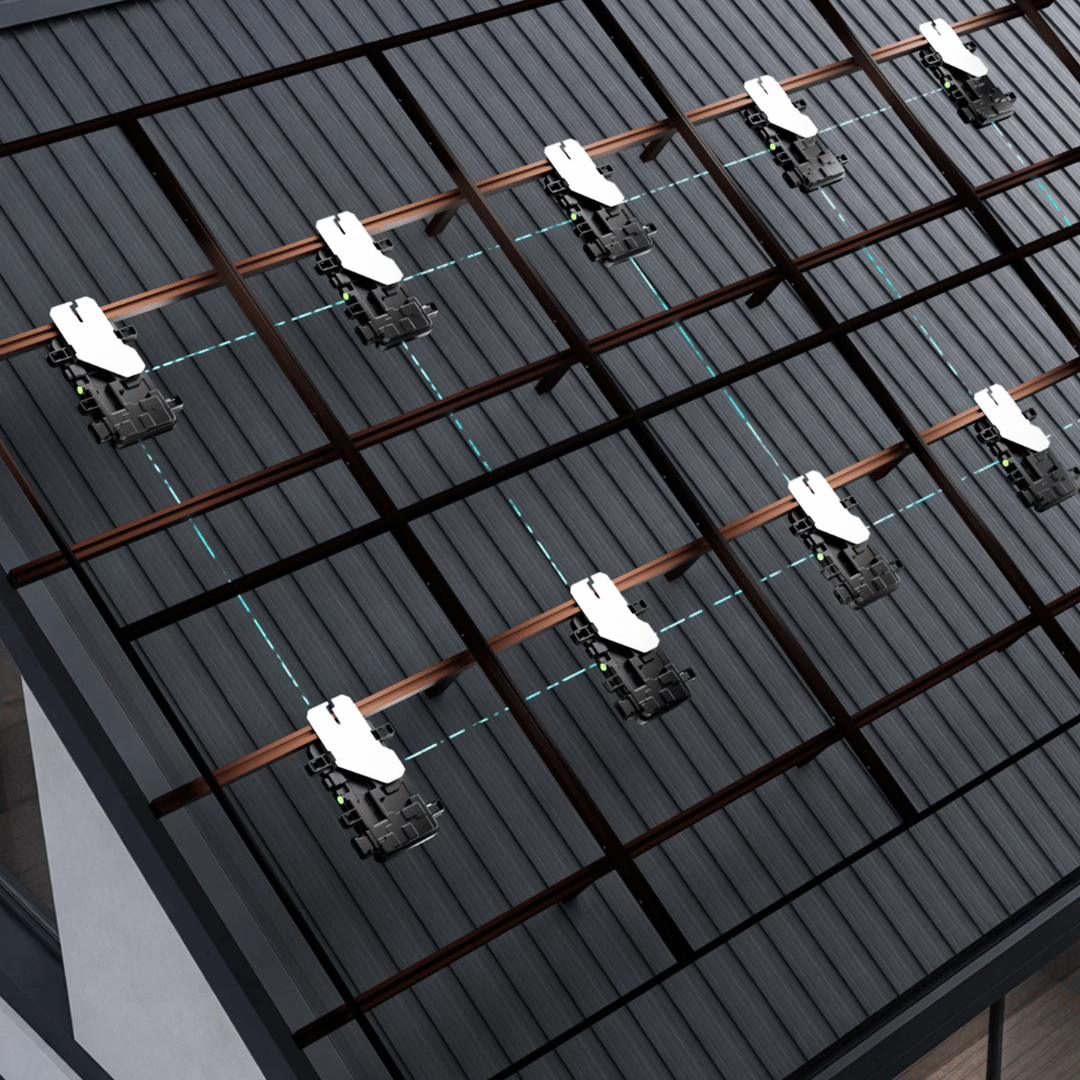

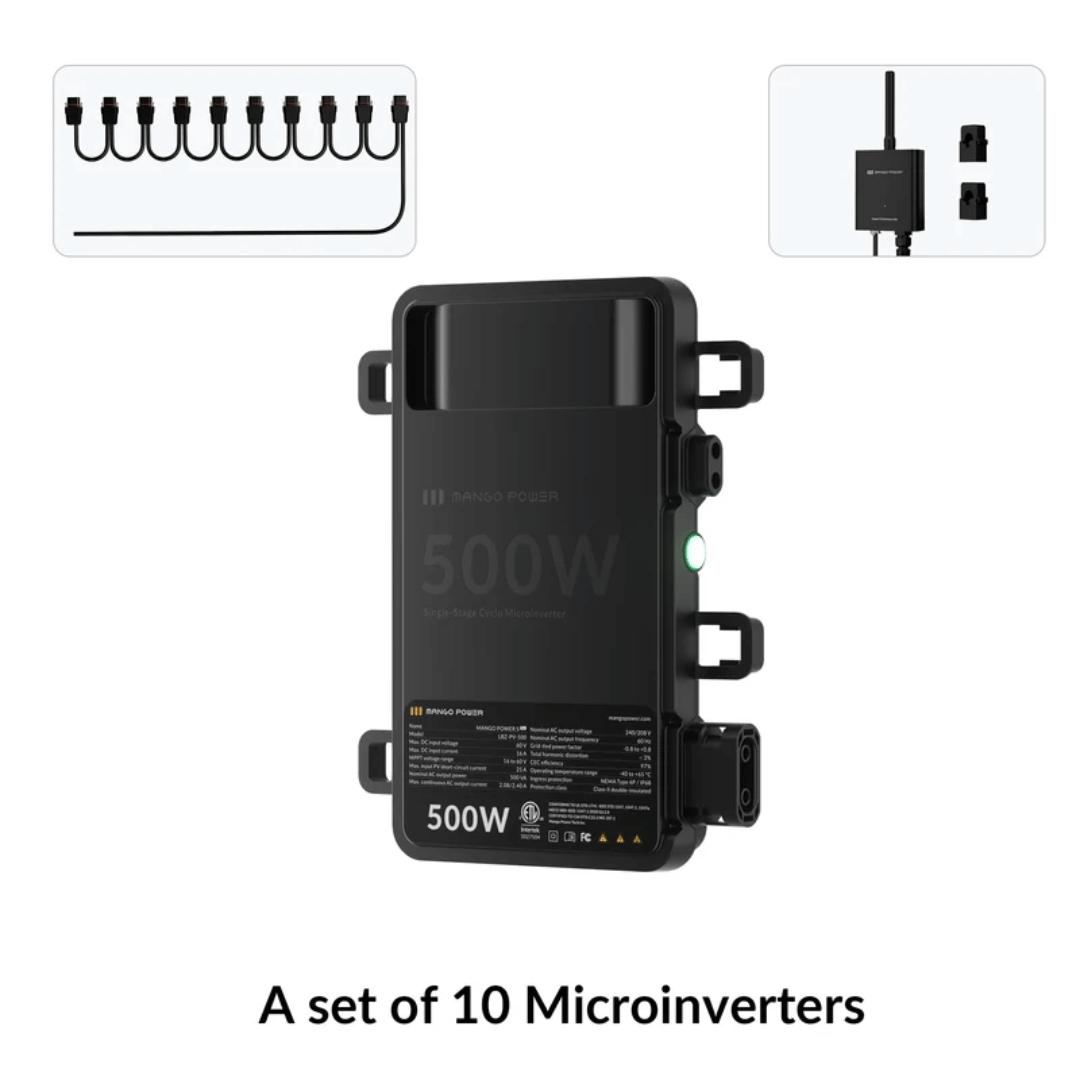

- For states outside of Utah, it is highly recommended to pair this system with the Smart Gateway Lite for compliant zero-export control.
- The Mango Power S Pro Microinverter requires a compatible AC cable (Mango Power S Pro Cable 10-in-1, sold separately) for proper operation. For safety and proper setup, installation should be completed by a licensed local electrician.

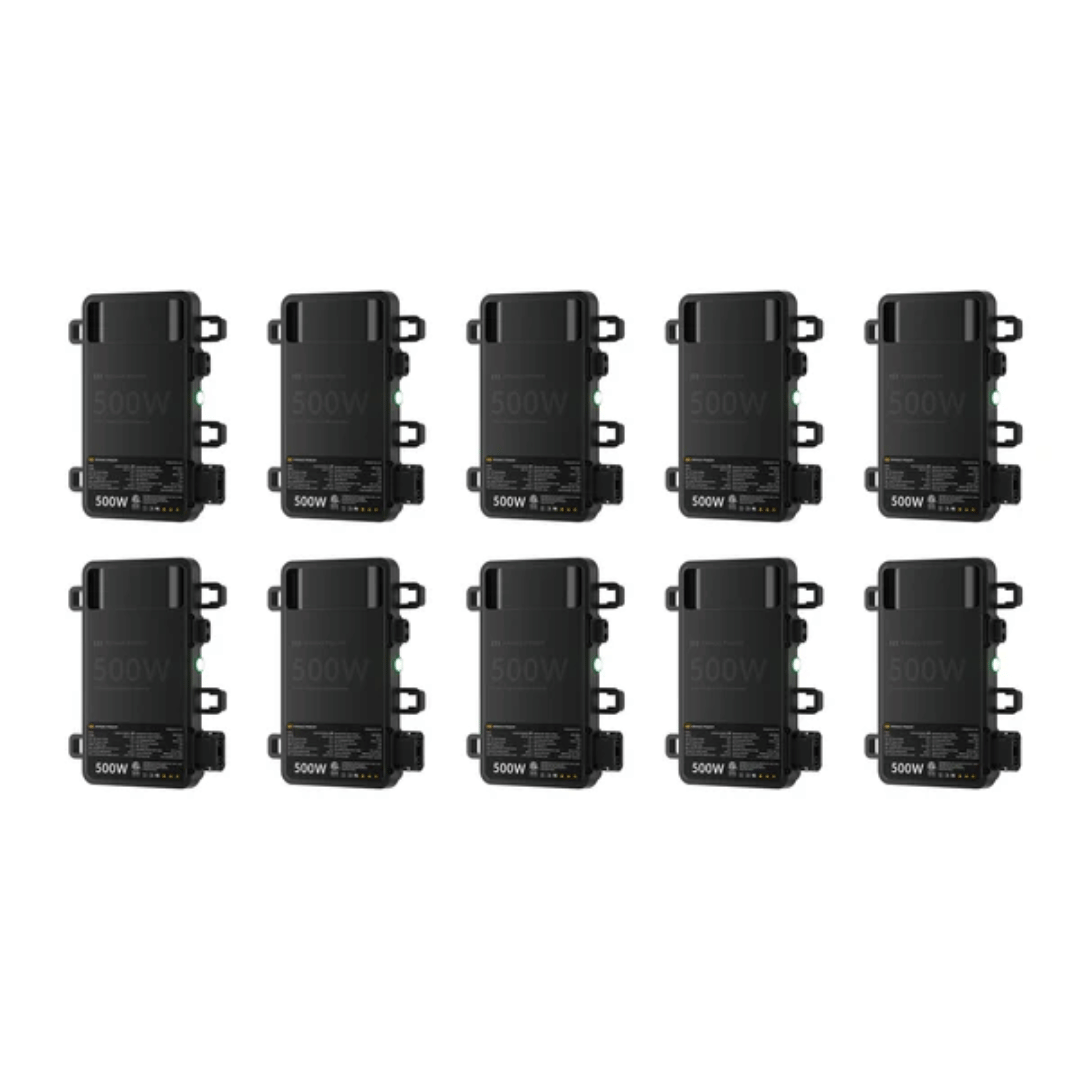

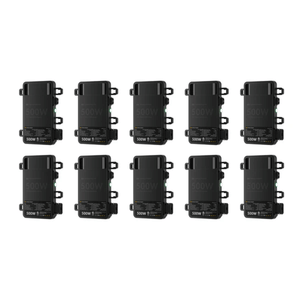

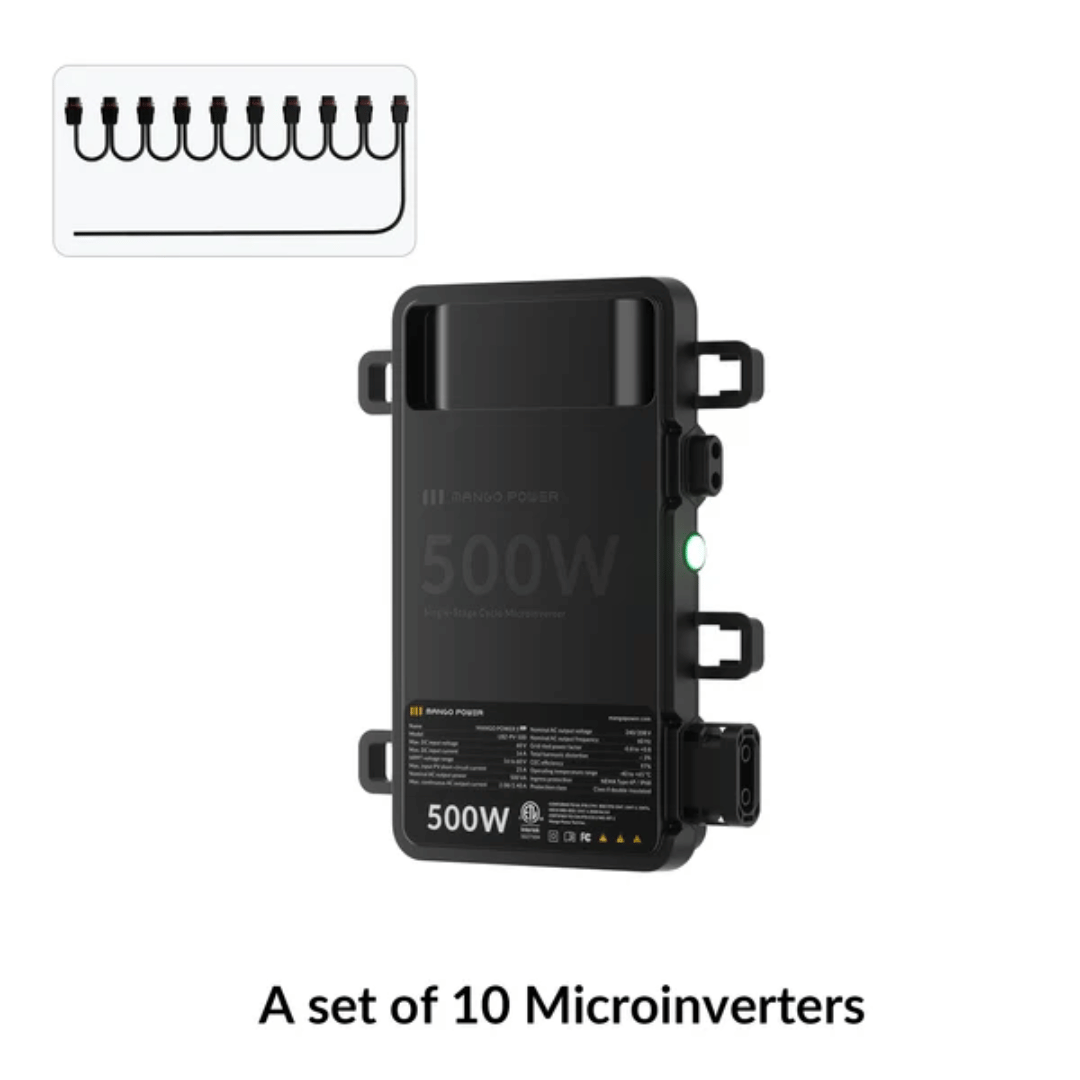

- This product is sold as a set of 10 microinverters, each rated at 500W.

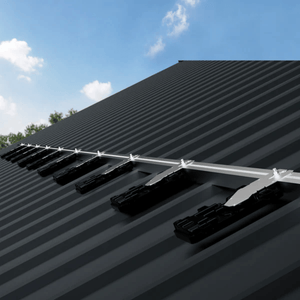

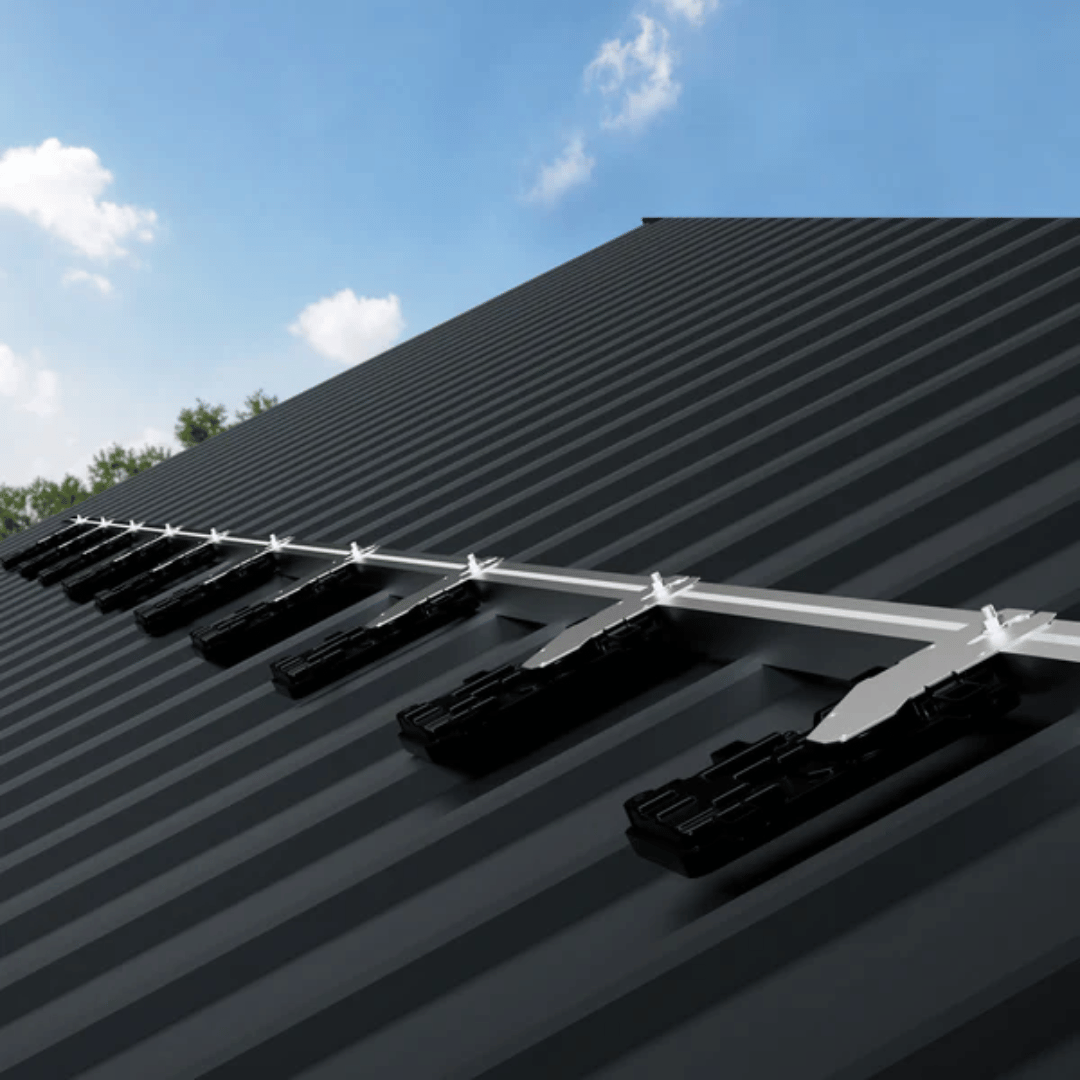

- It is designed for rooftop installation, and you may purchase additional solar panels separately if needed.
Key Features
Universal Roof Adaptability & Shade Resilience
No matter the complexity or angle of your roof layout, these independent microinverters ensure that localized shading or falling debris on a single panel won’t bottleneck your entire array. By isolating each panel's output, the system successfully extracts the absolute maximum energy harvest from every available ray of sunshine.
Extended Dawn-to-Dusk Energy Capture
Capture more usable power throughout the entire day. Powered by an advanced single-stage cyclo architecture, this system achieves a premium 97% CEC efficiency by waking up earlier in the morning and operating later into the evening than traditional inverters, providing your home with superior operational uptime.
Simplified Single-Stage Engineering
Experience a 30% reduction in internal components, translating directly to a 2.5x leap in overall hardware reliability. By removing redundant power conversion stages, the microinverters establish a shorter, highly optimized energy path that minimizes potential failure points.

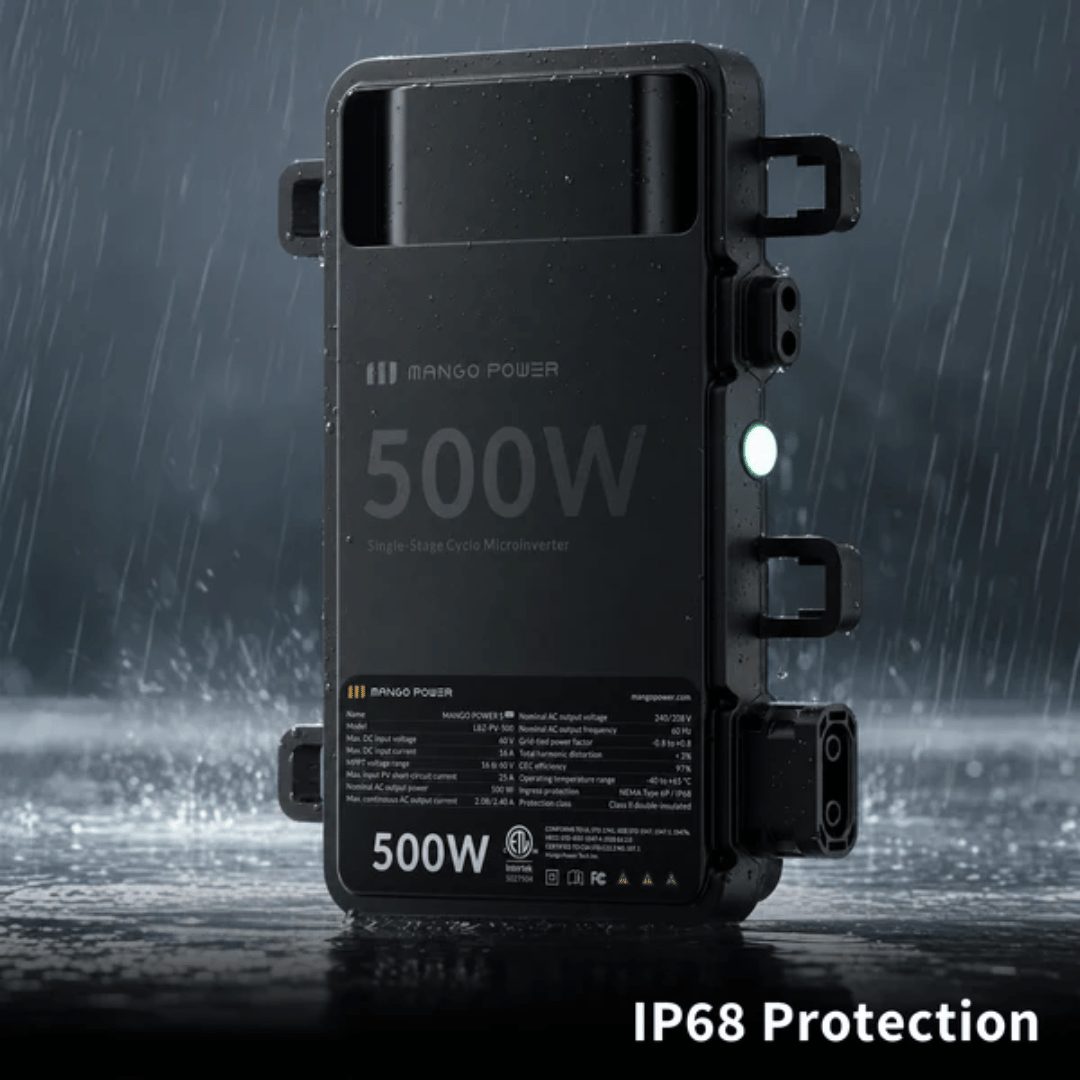

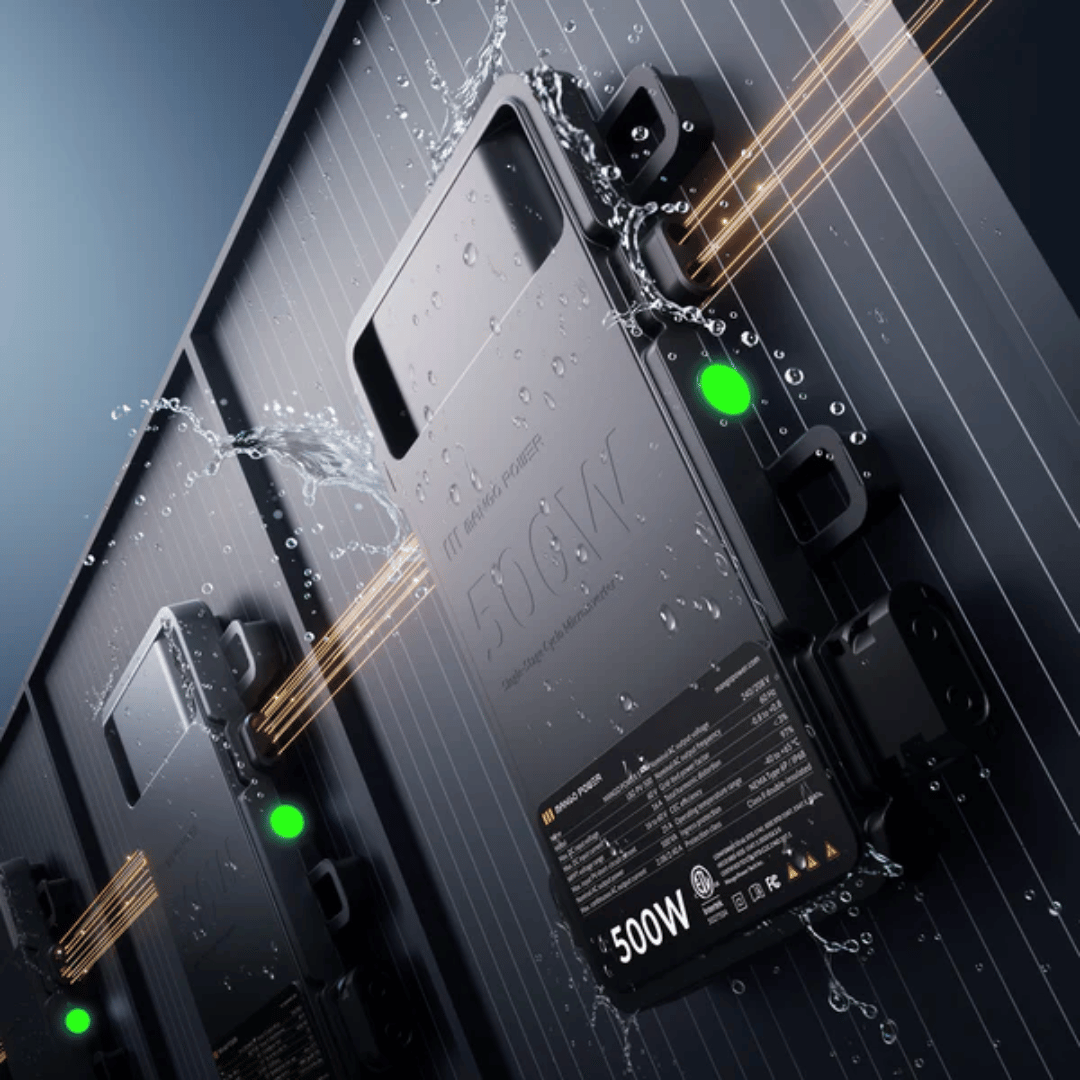

Hermetically Sealed Climate Protection
Engineered to withstand the harshest environments, the rugged NEMA Type 6P / IP68 enclosure is entirely dustproof, waterproof, and fanless. It ensures completely quiet and safe power generation across punishing outdoor temperature fluctuations ranging from -40°F to 149°F.
Decade-Spanning Design Longevity
Invest with confidence in a power architecture engineered to outlast standard home appliances. Backed by a massive 219,000-hour design life guarantee, these microinverters align perfectly with the long-term lifespan of premium solar panels and carry an industry-leading 25-year warranty.
Instantaneous Safety Shutdown Response
Enjoy complete peace of mind with a module-level hazard response that vastly exceeds standard NEC compliance. In the event of an electrical anomaly, the system triggers an ultra-fast rapid shutdown in under 100 microseconds—stopping power flow 300,000 times faster than code requires.
Rigorous Utility & Grid Certifications
The entire system is fully compliant with the strictest North American safety, quality, and grid interconnection mandates, proudly carrying official CA Rule 21 (UL 1741-SA), IEEE 1547:2018 (UL 1741-SB), and CSA C22.2 certifications.
Streamlined Modular Integration
Deploy your array quickly using convenient plug-and-play connectors, and link the system instantly via a one-click Wi-Fi mesh network. Once online, you can track real-time power data and system metrics flawlessly through the custom mobile app. (Note: Requires Mango Power S Pro Cable 10-in-1, sold separately. Professional installation by a licensed electrician is recommended).

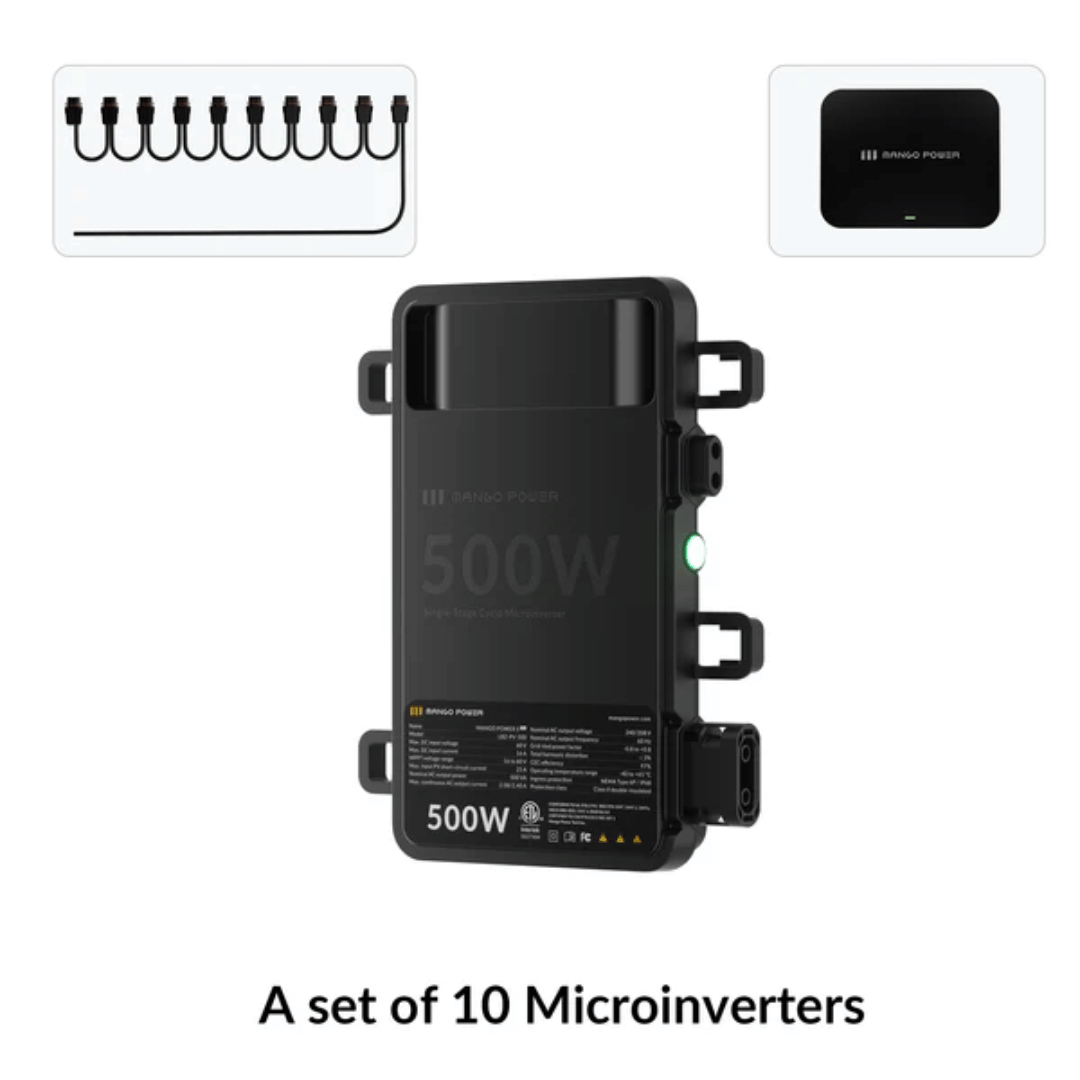

What's Included
If you are investing in a comprehensive rooftop solar array, you need an inverter system that adapts to your home's unique environment. This rooftop solar microinverter set fits perfectly on any roof layout and remains exceptionally reliable even in the shade. Unlike traditional string inverters where a single shadow can cripple your entire energy output, these microinverters operate with independent module-level tracking. This means that if one panel is obscured by a cloud, chimney, or tree branch, it will absolutely not affect the performance of the rest of the system. You guarantee maximum energy harvest from every single ray of sunshine, ensuring a faster return on your solar investment.

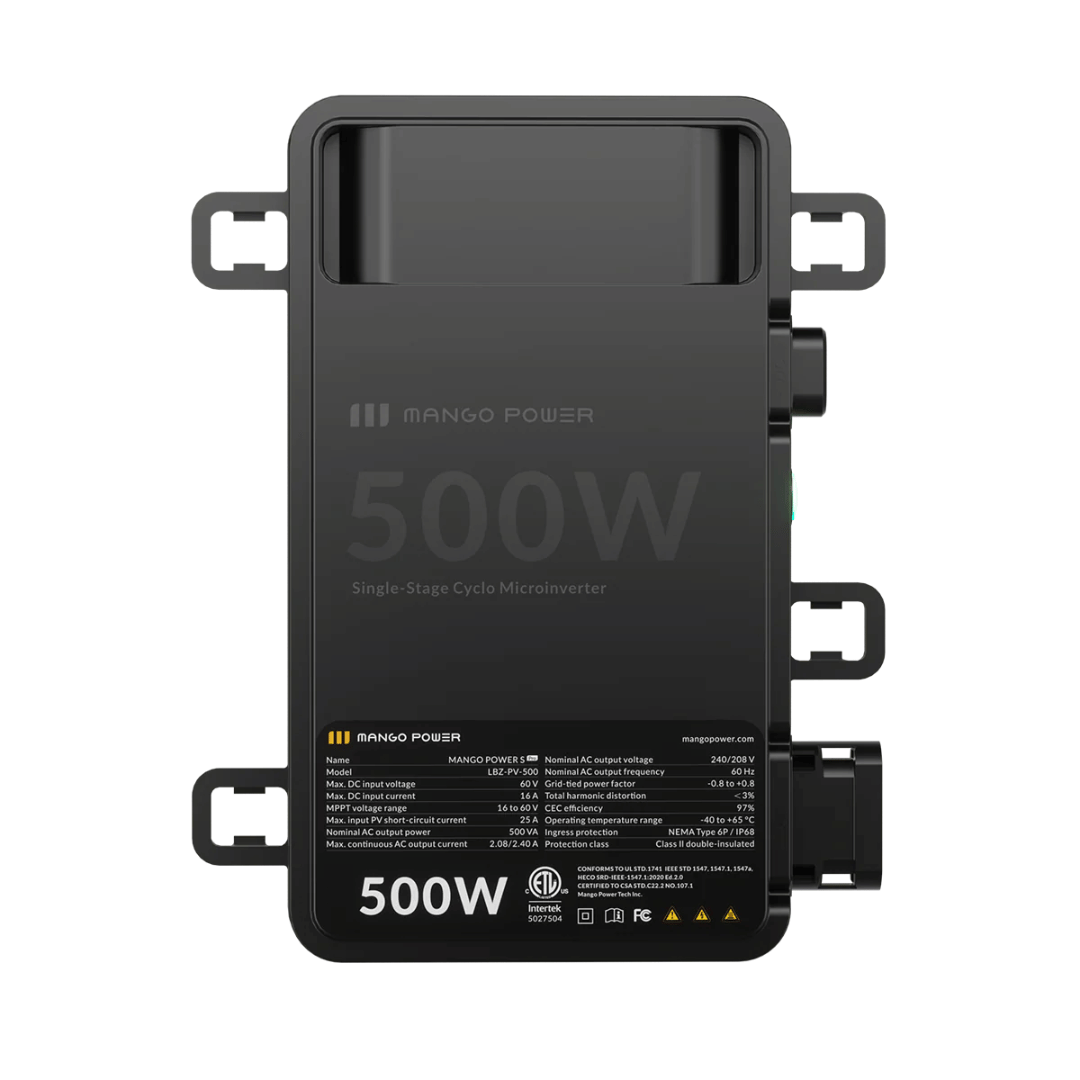

Technical Specifications
- Nominal Output Power (VA): 500W (Per Microinverter; 5000W Total for Set of 10)
- CEC Efficiency: 97%
- Power Factor Setting: 0.99
- Power Factor (Adjustable): 0.8 leading – 0.8 lagging
- Total Harmonic Distortion: < 3%
- Night Power Consumption: < 50 mW
- Enclosure Rating: NEMA Type 6P / IP68
- Cooling System: Natural Convection (Fanless)
- Operating Temperature Range: -40°C to +65°C (-40°F to 149°F)
- Storage Temperature Range: -40°C to +85°C (-40°F to 185°F)
- Dimensions (per unit): 221.5 × 129.0 × 32.5 mm
- Weight (per unit): 1.2 kg (2.64 lbs)
- Pollution Degree: III
- Max Altitude: 4000 m (< 13,123 ft)
- Communication: Built-in Wi-Fi
- Warranty: 25 Years
Questions About the Mango Power S Pro Microinverter? Chat, Call, or Text us We can help you configure your solar setup! Call for the best deal. 1-844-945-3625
Frequently Asked Questions
Are solar panels included in this set?
No. This product is a set of 10 microinverters designed to be paired with a rooftop solar installation. Solar panels must be purchased separately to complete your array.
What extra cables do I need to make this work?
For proper operation and safe wiring, you must purchase the compatible Mango Power S Pro Cable 10-in-1, which is sold separately.
Do I need to hire a professional to install these microinverters?
Yes. Because this system is intended for permanent rooftop installation and connects directly to your home's electrical grid, we strongly recommend having the system installed by a licensed local electrician to ensure safety and code compliance.
What happens if part of my roof is shaded during the day?
Because this system utilizes module-level microinverters rather than a central string inverter, shading on one or two panels will only affect those specific panels. The rest of your rooftop array will continue to harvest solar energy at maximum capacity.
Installation and State Regulations
Due to Utah state legislation H.B. 340 Solar Power Amendments, this product is currently approved for plug‑and‑play sale and installation only in Utah.
(We meet all power grid certifications of UL1741 and IEEE1547 and can be installed.)
For other states within the United States, the product can still be used if configured as a Zero Export system – but this requires:
-
Successful grid interconnection approval (per local utility rules)
-
Professional electrical inspection
-
Installation of a Mango Power Smart Gateway Lite (to enable Zero Export functionality)Please note that specific requirements should be obtained from local government.
Federal Solar Tax Credit
A Brief Overview of the U.S. Home Energy Tax Credit
Discover the financial advantages of the U.S. federal solar tax credit for homeowners considering installing a solar system in their main residence. This incentive provides a 30% discount on the current cost of a solar system. If you've set up a system in 2022, it's advisable to speak with your tax consultant to see if you're eligible for a higher credit rate.
Understanding the U.S. Federal Solar Tax Credit:
This tax credit is tailored for homeowners and applies to solar systems installed in primary homes. The credit covers a percentage of qualifying expenses, and thanks to the recent Inflation Reduction Act, the scope of the Investment Tax Credit (ITC) has broadened. Solar systems installed from 2022 to 2032 are eligible for a 30% tax credit, which will drop to 26% in 2033 and 22% in 2034. There's no cap on the amount you can claim.
What Expenses Are Eligible:
Qualifying expenses include solar photovoltaic panels, attic fan power systems (except for the fan itself), labor costs for installation and setup, balance-of-system components, and applicable sales taxes. Standalone batteries with a capacity of 3 kWh or more may also be eligible! For instance, if the solar system you initially purchase includes a single battery with a capacity of less than 3 kWh, but you also buy extra batteries during the installation process that bring the total capacity to more than 3 kWh, then the entire setup may be eligible for the tax credit.
How to Determine Your Eligibility:
To confirm your eligibility for this federal solar credit, review the guidelines set forth by the U.S. Department of Energy and consult your tax advisor.
Steps to Claim the U.S. Federal Solar Tax Credit:
Verify Eligibility: Speak with your tax advisor to confirm your eligibility and to understand how to make the most of the credit.
Fill Out IRS Form 5695: This form, available online, is specifically for claiming renewable energy credits. Guidelines for completing the form are provided.
Apply Credits on Your 1040: Use the total credit amount from Form 5695 to lessen your tax liability on your Form 1040.
