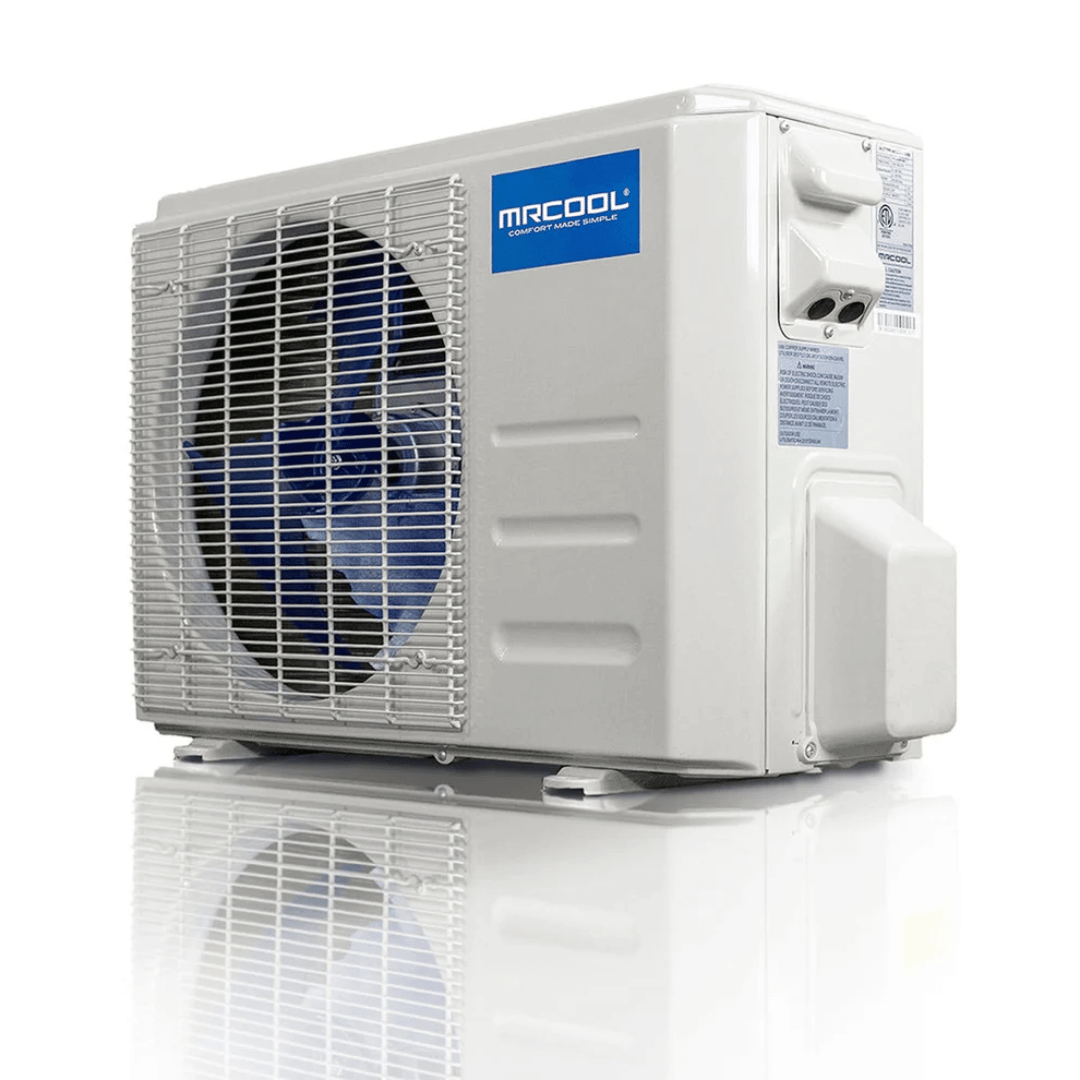

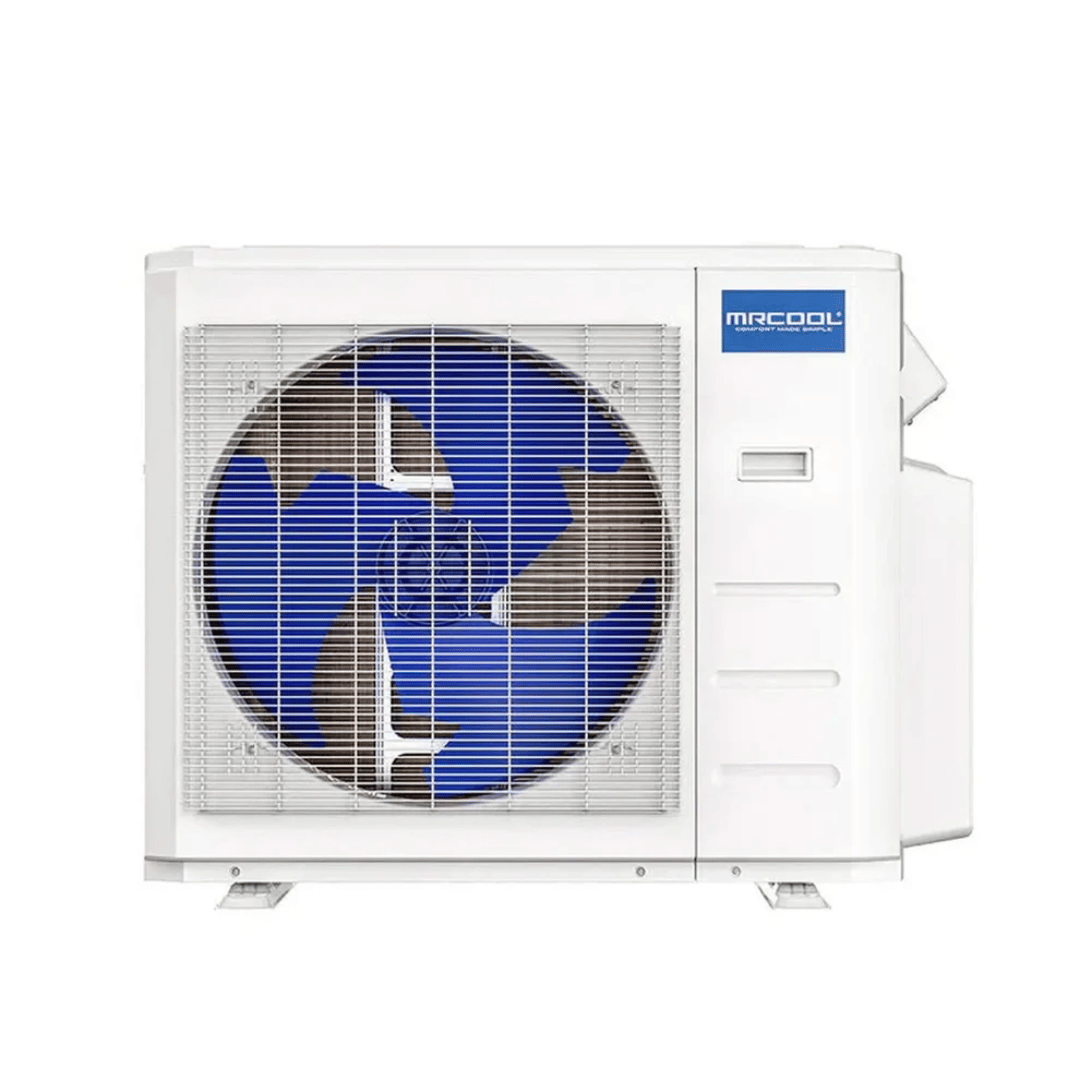

MRCOOL 5th Gen Advantage 12K BTU Heat Pump Condenser 115V
$726.80$923.04
Have Questions?
Chat, Call, or Text a Specialist
Found a better price? We will match or beat it! 1-844-945-3625
- Description
- Best Price Guarantee!
- Why Buy From Us
Description
Reliable Efficiency: MRCOOL 5th Gen Advantage 12k BTU Heat Pump Condenser (115V)
Power your cooling and heating system with the MRCOOL 12k BTU Heat Pump Condenser, the durable outdoor component of the Advantage 5th Gen series. Designed for high efficiency and longevity, this unit operates on standard 115V household power, making it an excellent replacement or upgrade for compatible split systems.
Now engineered with R-454B refrigerant, this condenser lowers your carbon footprint while delivering superior thermodynamic performance. It boasts an impressive 21.2 SEER2 rating, ensuring that your home stays comfortable without driving up energy costs. Built to withstand the elements, it features Gold Fin™ corrosion-resistant coating, protecting the coil from salty air and humidity to extend the lifespan of your unit.
Note: This listing is for the Outdoor Condenser Unit Only. It must be paired with a compatible indoor air handler and installed by a licensed HVAC professional.
Key Features
- R-454B Eco-Performance: Pre-charged with the latest low-GWP refrigerant, ensuring compliance with new environmental regulations and future serviceability.
- Gold Fin™ Protection: A specialized anti-corrosive coating on the condenser coils prevents rusting and damage from harsh weather or coastal environments.
- High-Efficiency Operation: Delivers a 21.2 SEER2 rating, maximizing cooling and heating output while minimizing electricity usage.
- Standard 115V Power: Runs on a standard 115-volt circuit, simplifying electrical hookups compared to 230V commercial-grade requirements.
- Quiet Outdoor Performance: Engineered with a permanently lubricated fan motor and sound-dampening construction to operate as quietly as 54 dB(A).
- Auto-Restart Function: In the event of a power outage, the unit automatically resumes operation at its previous settings once power is restored.
- Broad Operating Range: Capable of heating and cooling in a wide range of outdoor temperatures, ensuring year-round comfort.
Defend Against Rust and Salt Damage
Coastal environments and high humidity destroy standard metal parts. This unit fights back with Gold Fin technology. A specialized gold coating covers the condenser coils to stop corrosion before it starts. Rain and salt spray slide right off the surface.
You get a reliable machine that lasts much longer than unprotected models. The permanently lubricated fan motor blocks out dirt to reduce maintenance needs.
Take Total Control from Anywhere
You do not need to leave the couch to change the temperature. The SmartHVAC module connects your system to Wi-Fi instantly. You can adjust the heat or AC settings using your smartphone app on iOS or Android.
It also pairs with Amazon Alexa and Google Assistant for simple voice commands. You manage your home climate exactly how you want it from any location.
Technical Specifications
- Brand Name: MRCOOL
- Series: Advantage 5th Gen
- Model: A-12-HP-C-115D-O
- Unit Type: Mini-Split Condenser (Outdoor Unit)
- Cooling Capacity: 12,000 BTU (1 Ton)
- Heating Capacity: 12,000 BTU
- Voltage: 115V
- Phase: 1
- Cycle: 60 Hz
- SEER2 Rating: 21.2
- Refrigerant Type: R-454B
- Refrigerant Volume: 24.34 oz (Pre-charged)
- Max Fuse Breaker: 20 A
- Min Circuit Ampacity: 19 A
- Decibel Rating: 54 dB(A)
- Compressor Type: Rotary (DC Inverter)
- Liquid Line Size: 1/4 inch
- Suction Line Size: 3/8 inch
- Max Lineset Length: 82 ft
- Net Dimensions (W x H x D): 30.12" x 21.85" x 11.93"
- Net Weight: 61.29 lbs
- AHRI Certified: Yes
- ETL Listed: Yes
Frequently Asked Questions
Can I use this condenser with any brand of air handler?
No. This condenser is designed to communicate specifically with MRCOOL Advantage Series indoor air handlers. Mixing brands or series often results in communication errors and voided warranties.
Is this a DIY unit?
No. The Advantage Series is a standard mini-split system. It requires a licensed HVAC technician to connect the refrigerant lines, vacuum the system, and release the charge.
Does this unit come with the copper line set?
No. Since this listing is for the condenser only, line sets and communication wires are typically sold separately or supplied by your installer.
What is the benefit of the Gold Fin coating?
Gold Fin is a protective layer applied to the condenser coils. It prevents corrosion from rain, salt air, and humidity, significantly extending the life and efficiency of the unit.
