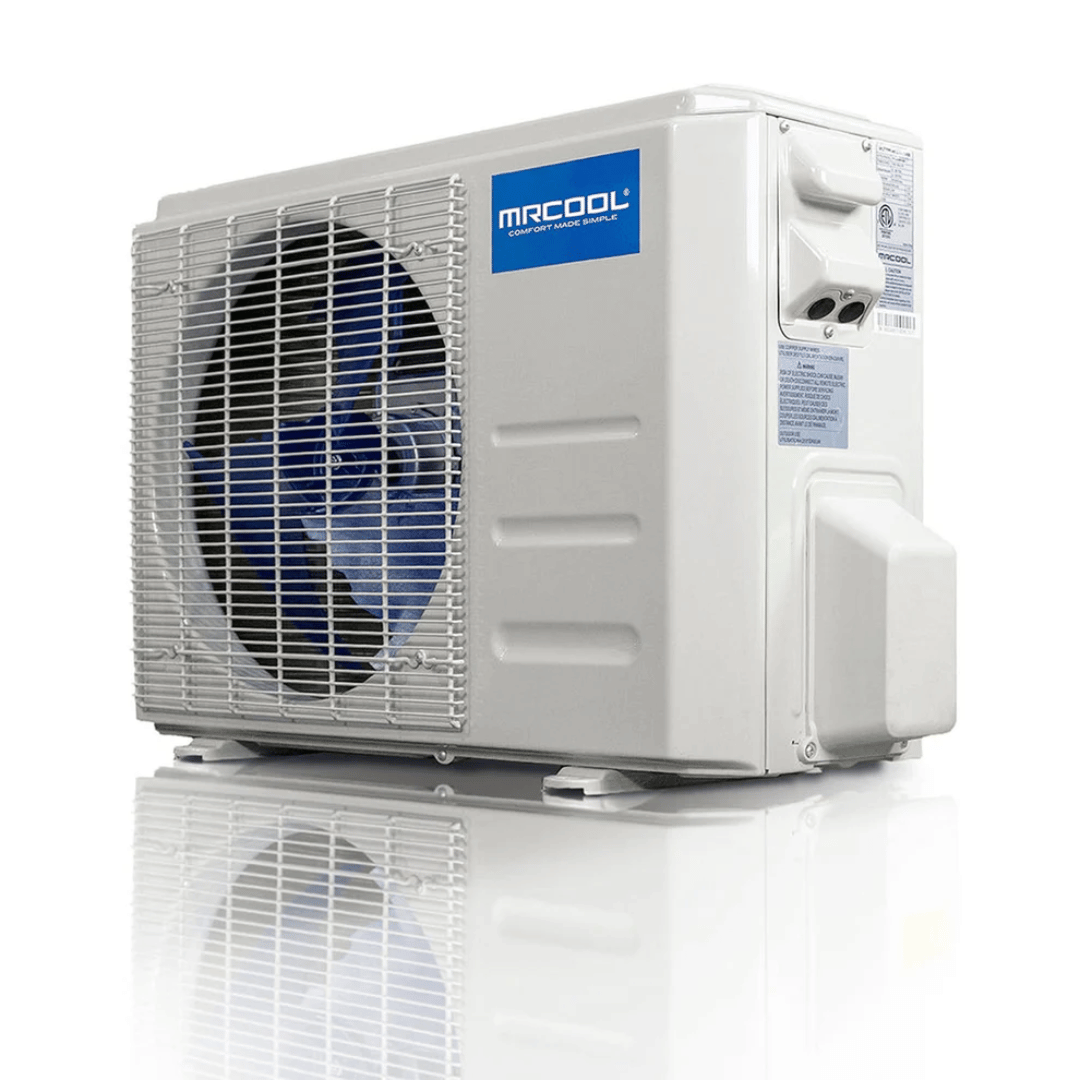

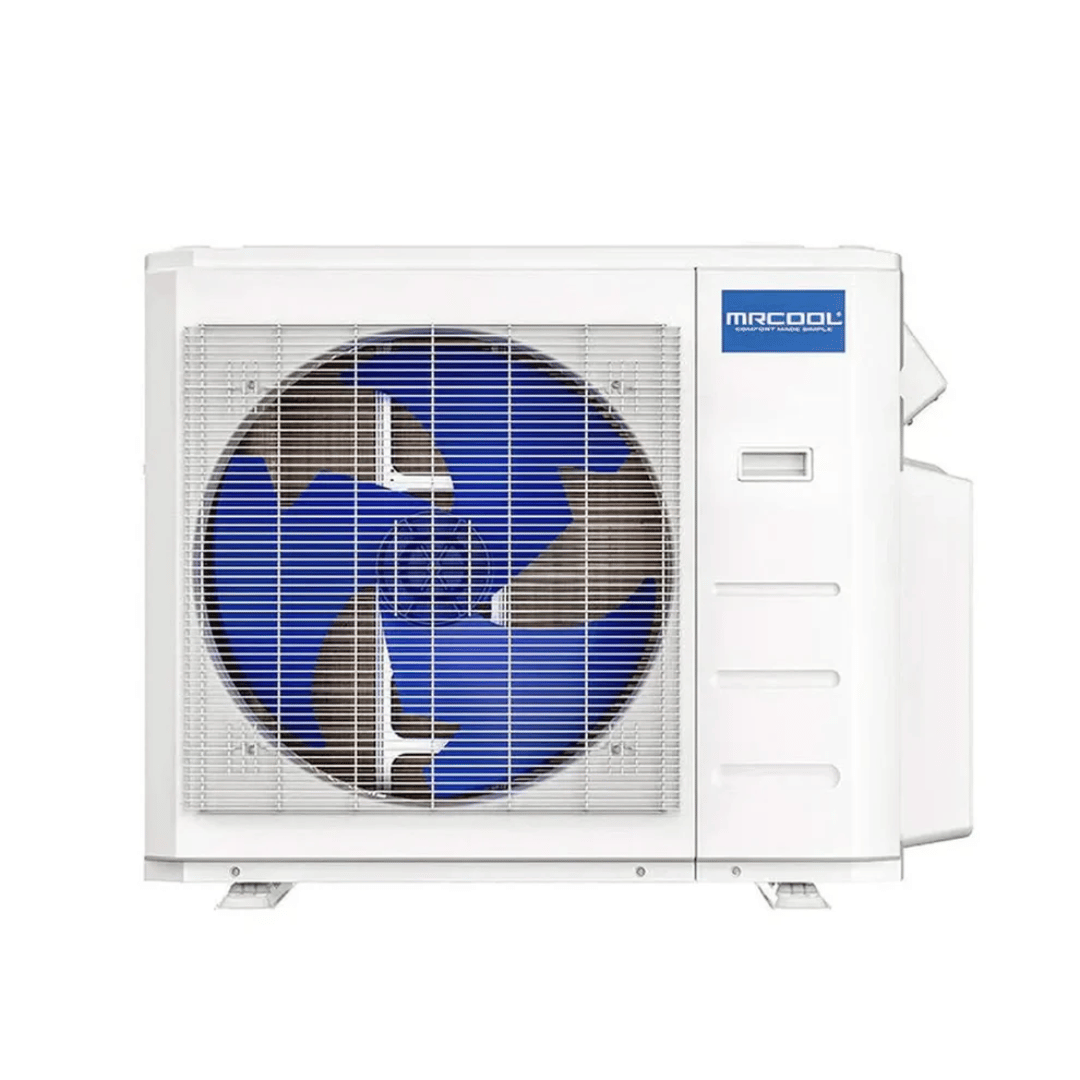

MRCOOL 5th Gen Advantage 12K BTU Heat Pump Condenser 230V
$701.50$890.91
Have Questions?
Chat, Call, or Text a Specialist
Found a better price? We will match or beat it! 1-844-945-3625
- Description
- Best Price Guarantee!
- Why Buy From Us
Description
Reliable Efficiency: MRCOOL 5th Gen Advantage 12k BTU Heat Pump Condenser (115V)
Ensure reliable climate control with the MRCOOL 12k BTU Heat Pump Condenser, the powerful outdoor heart of the Advantage 5th Gen series. Operates on a robust 208-230V power supply, this condenser is designed for superior electrical efficiency and consistent performance in residential applications.
Updated with eco-friendly R-454B refrigerant, this unit meets the latest environmental standards while delivering a high SEER2 efficiency rating to keep utility costs low. It features Gold Fin™ technology, a corrosion-resistant coating that shields the coils from moisture and salt air, ensuring durability even in tough weather conditions.
Important: This listing is for the Outdoor Condenser Unit Only. It requires a compatible indoor air handler and must be installed by a licensed HVAC professional.
Key Features
- 230V High-Voltage Operation: Engineered for 208-230V circuits, offering stable performance and often requiring lower amperage wire gauges compared to 115V models.
- R-454B Future-Proofing: Pre-charged with the newest low-GWP refrigerant, ensuring your system complies with federal regulations and remains serviceable for years to come.
- Gold Fin™ Corrosion Resistance: Protective coating on the condenser coils prevents rusting and degradation, significantly extending the lifespan of the unit in humid or coastal areas.
- Smart Home Capable: When paired with the Advantage Series air handler, this unit supports Wi-Fi connectivity for control via the SmartHVAC app, Amazon Alexa, and Google Assistant.
- Quiet Outdoor Operation: Features a permanently lubricated fan motor and sound-insulating design to keep outdoor noise levels as low as 54 dB(A).
- Automatic Restart: Restores operation to previous settings automatically after a power failure, ensuring your home returns to comfort without manual intervention.
Defend Against Rust and Salt Damage
Coastal environments and high humidity destroy standard metal parts. This unit fights back with Gold Fin technology. A specialized gold coating covers the condenser coils to stop corrosion before it starts. Rain and salt spray slide right off the surface.
You get a reliable machine that lasts much longer than unprotected models. The permanently lubricated fan motor blocks out dirt to reduce maintenance needs.
Take Total Control from Anywhere
You do not need to leave the couch to change the temperature. The SmartHVAC module connects your system to Wi-Fi instantly. You can adjust the heat or AC settings using your smartphone app on iOS or Android.
It also pairs with Amazon Alexa and Google Assistant for simple voice commands. You manage your home climate exactly how you want it from any location.
Technical Specifications
- Brand Name: MRCOOL
- Series: Advantage 5th Gen
- Model: A-12-HP-C-230D-O
- Unit Type: Mini-Split Condenser (Outdoor Unit)
- Cooling Capacity: 12,000 BTU (1 Ton)
- Heating Capacity: 12,000 BTU
- Voltage: 208-230V
- Phase: 1
- Cycle: 60 Hz
- SEER2 Rating: 21.3
- Refrigerant Type: R-454B
- Refrigerant Volume: 24.69 oz (Pre-charged)
- Max Fuse Breaker: 15 A
- Min Circuit Ampacity: 13 A
- Decibel Rating: 54 dB(A)
- Compressor Type: Rotary (DC Inverter)
- Liquid Line Size: 1/4 inch
- Suction Line Size: 3/8 inch
- Max Lineset Length: 82 ft
- Net Dimensions (W x H x D): 30.12" x 21.85" x 11.93"
- Net Weight: 59.08 lbs
- AHRI Certified: Yes
- ETL Listed: Yes
Frequently Asked Questions
Does this condenser work with the 115V air handler?
No. You cannot mix voltage platforms. This 230V condenser must be paired with a 230V indoor air handler. Mixing voltages will damage the equipment and is a safety hazard.
Can I install this unit myself?
No. The Advantage Series is not a DIY product. It requires a licensed HVAC professional to braze or flare the line sets, pull a vacuum, and release the refrigerant charge.
Does this unit come with electrical cables?
No. The interconnect wire (signal wire) and the main power whip are not included with the standalone condenser. These are typically supplied by your installer or sold separately.
What size breaker do I need for this 230V model?
This unit requires a double-pole breaker. The specifications call for a Max Fuse/Breaker of 15 Amps and a Minimum Circuit Ampacity (MCA) of 13 Amps.
