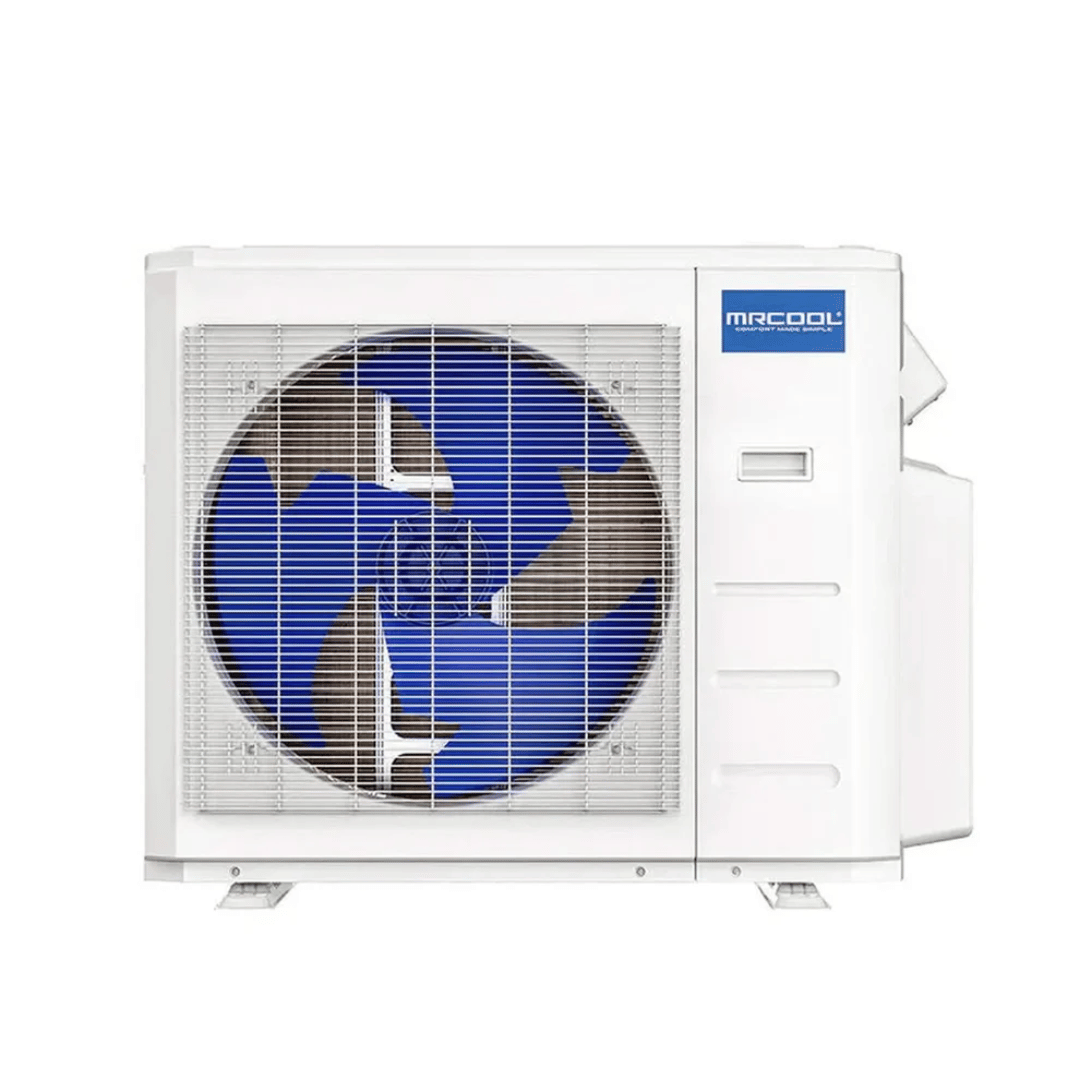

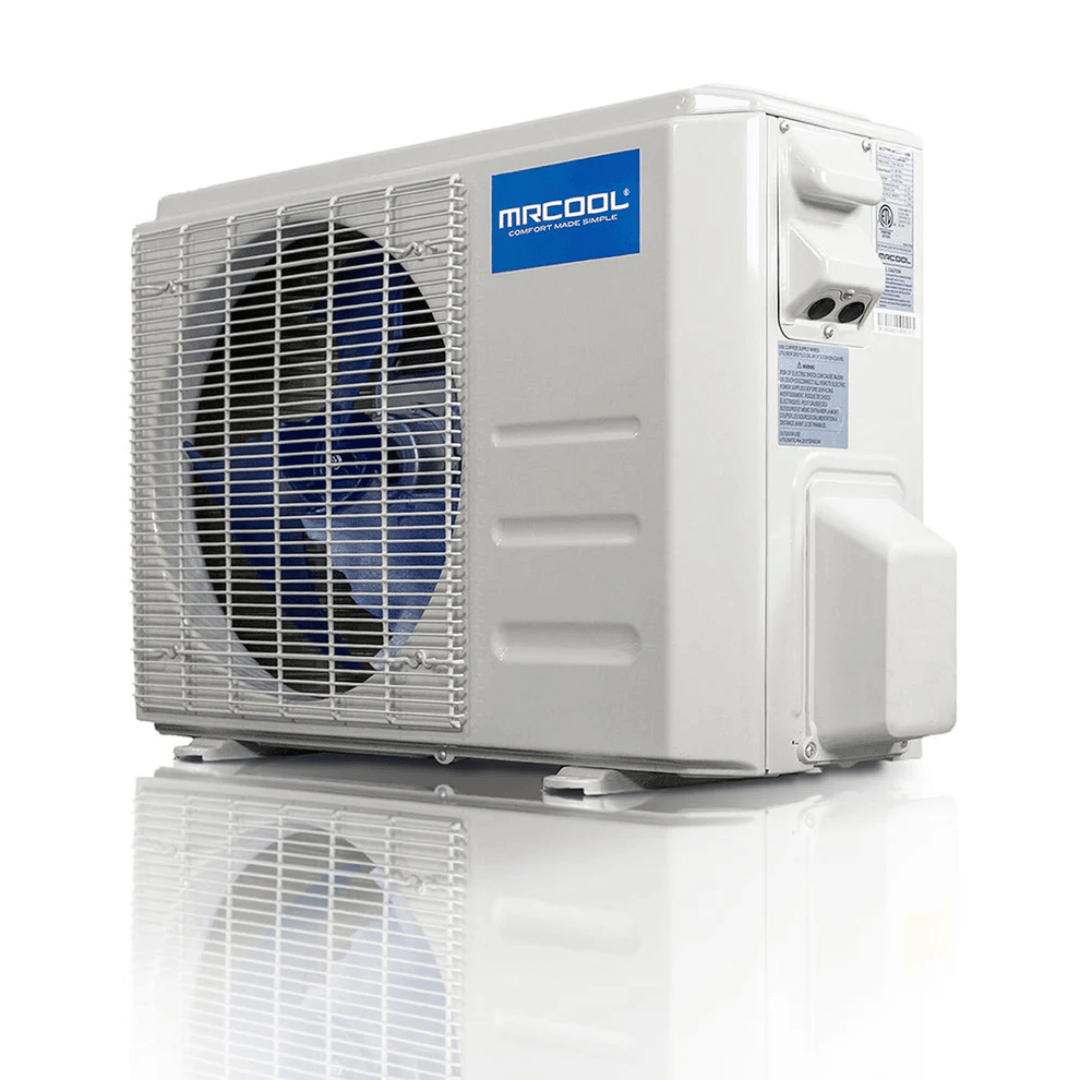

MRCOOL 5th Gen Advantage 18K BTU Heat Pump Condenser 230V
$930.00$1,161.00
Have Questions?
Chat, Call, or Text a Specialist
Found a better price? We will match or beat it! 1-844-945-3625
- Description
- Best Price Guarantee!
- Why Buy From Us
Description
Reliable Power: MRCOOL 5th Gen Advantage 18k BTU Air Condenser (230V)
Power your home comfort system with the MRCOOL 18k BTU Air Condenser, the heavy-duty outdoor heart of the Advantage 5th Gen series. Designed to drive heating and cooling for spaces up to 800 square feet, this condenser operates on a steady 208-230V power supply, ensuring consistent performance for residential and light commercial applications.
Updated with the latest R-454B eco-refrigerant, this air condenser balances high performance with environmental responsibility. It achieves a robust 19.2 SEER2 efficiency rating, helping to keep energy bills in check. Built for longevity, it features Gold Fin™ corrosion resistance to withstand the elements and a fully enclosed fan motor for quiet, reliable operation year after year.
> Note: This listing is for the Outdoor Air Condenser Only. It must be paired with a compatible indoor air handler and installed by a licensed HVAC professional.
Key Features and Benefits
- R-454B Eco-Performance: Pre-charged with next-generation low-GWP refrigerant, ensuring your system complies with modern environmental regulations and remains serviceable.
- Gold Fin™ Durability: A specialized anti-corrosive coating protects the condenser coils from salt, rain, and humidity, significantly extending the unit's lifespan in coastal or harsh climates.
- High-Efficiency Rating: Delivers a 19.2 SEER2 and 10.8 EER2, maximizing your cooling output while minimizing electrical consumption.
- Robust 230V Power: Engineered for 208-230V circuits, providing the stable, high-capacity power needed for 1.5-ton systems.
- Smart & Connected: When connected to the matching indoor unit, this condenser supports SmartHVAC Wi-Fi control, allowing for remote adjustments via app or voice assistants like Alexa.
- Quiet Outdoor Operation: The permanently lubricated fan motor and sound-dampening design keep operational noise as low as 56 dB(A).
- Auto-Restart: Automatically resumes operation at previous settings after a power outage, restoring your comfort without manual reset.
Defend Against Rust and Salt Damage
Coastal environments and high humidity destroy standard metal parts. This unit fights back with Gold Fin technology. A specialized gold coating covers the condenser coils to stop corrosion before it starts. Rain and salt spray slide right off the surface.
You get a reliable machine that lasts much longer than unprotected models. The permanently lubricated fan motor blocks out dirt to reduce maintenance needs.
Take Total Control from Anywhere
You do not need to leave the couch to change the temperature. The SmartHVAC module connects your system to Wi-Fi instantly. You can adjust the heat or AC settings using your smartphone app on iOS or Android.
It also pairs with Amazon Alexa and Google Assistant for simple voice commands. You manage your home climate exactly how you want it from any location.
Technical Specifications
- Brand Name: MRCOOL
- Series: Advantage 5th Gen
- Model: A-18-HP-C-230D-O
- Unit Type: Air Condenser (Outdoor Unit)
- Cooling/Heating Capacity: 18,000 BTU / 18,800 BTU (1.5 Ton)
- Voltage: 208-230V / 1 Phase / 60 Hz
- SEER2 Rating: 19.2
- Refrigerant: R-454B (40.57 oz Pre-charged)
- Max Fuse Breaker: 20 A
- Min Circuit Ampacity: 15 A
- Sound Level: 56 dB(A)
- Compressor: Rotary (DC Inverter)
- Liquid Line Size: 1/4 inch
- Suction Line Size: 1/2 inch
- Max Line Set Length: 98.4 ft
- Net Dimensions: 31.69" x 21.81" x 12.99"
- Net Weight: 72.31 lbs
- Certifications: AHRI Certified, ETL Listed
Why You Should Get This Air Condenser
- Cost-Effective Repair: The perfect solution for replacing a failed outdoor unit on an existing 18k Advantage system without the expense of buying a full new kit.
- Long-Term Reliability: MRCOOL’s use of Gold Fin technology and high-quality rotary compressors ensures this unit is built to last.
- Versatile Performance: Capable of heating and cooling in a wide range of outdoor temperatures, ensuring year-round usability.
- Warranty Backed: Protected by a 2-Year Compressor and 1-Year Parts warranty when installed by a professional.
Frequently Asked Questions
Can I mix this air condenser with a different brand of indoor unit?
No. This condenser is engineered to communicate specifically with MRCOOL Advantage Series indoor units. Mixing brands often leads to communication errors and voids the warranty.
Is this a DIY installation?
No. The Advantage Series is a standard split system. A licensed HVAC technician is required to connect the copper lines, pull a vacuum, and release the refrigerant charge.
Does this unit come with electrical wiring?
No. The interconnect cable (signal wire) and main power whip are not included with the standalone condenser. These are typically supplied by your installer.
What is the "Gold Fin" feature?
Gold Fin is a protective coating applied to the condenser coils that prevents corrosion from moisture and salt air, which is critical for maintaining efficiency and unit life.
