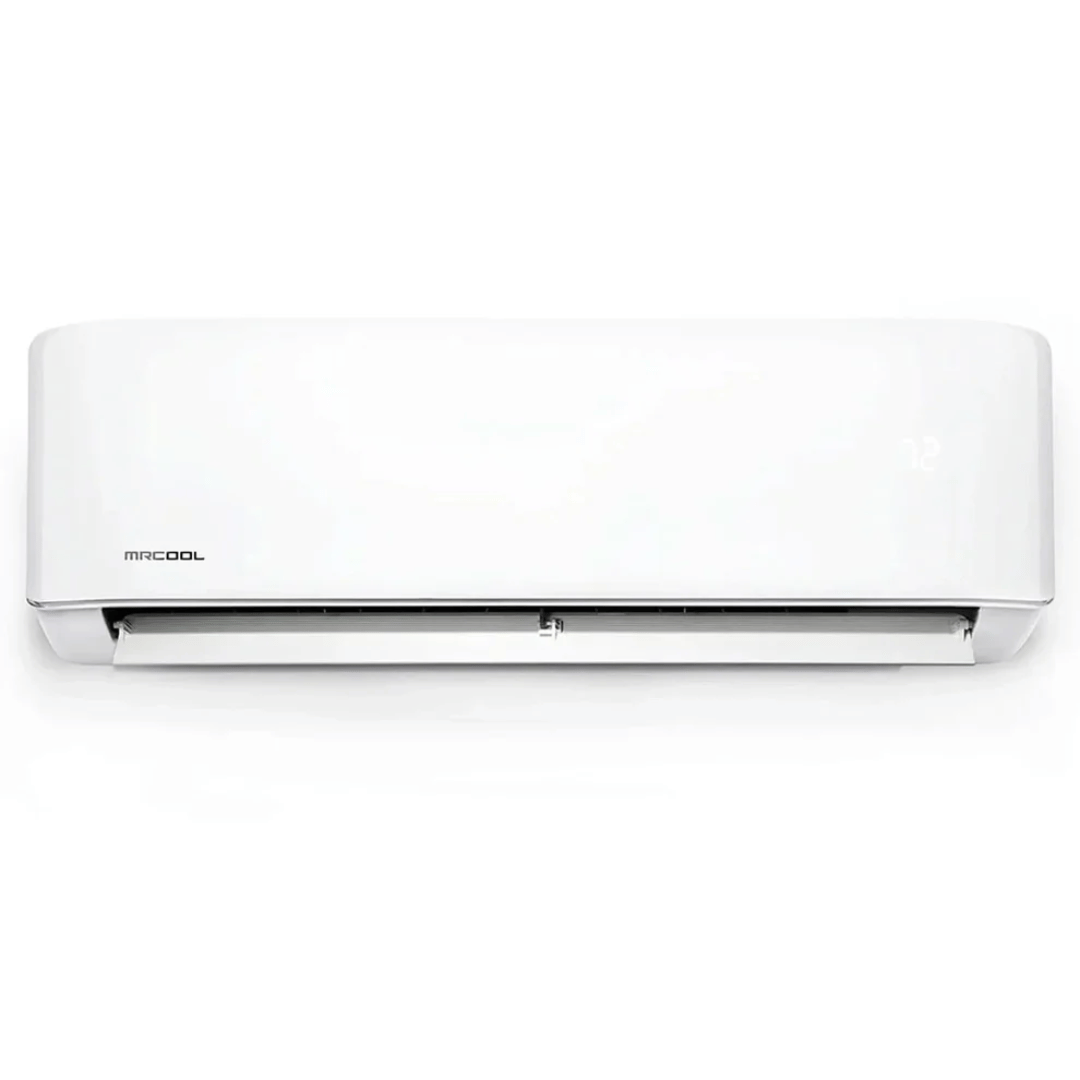

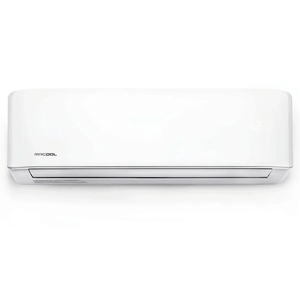

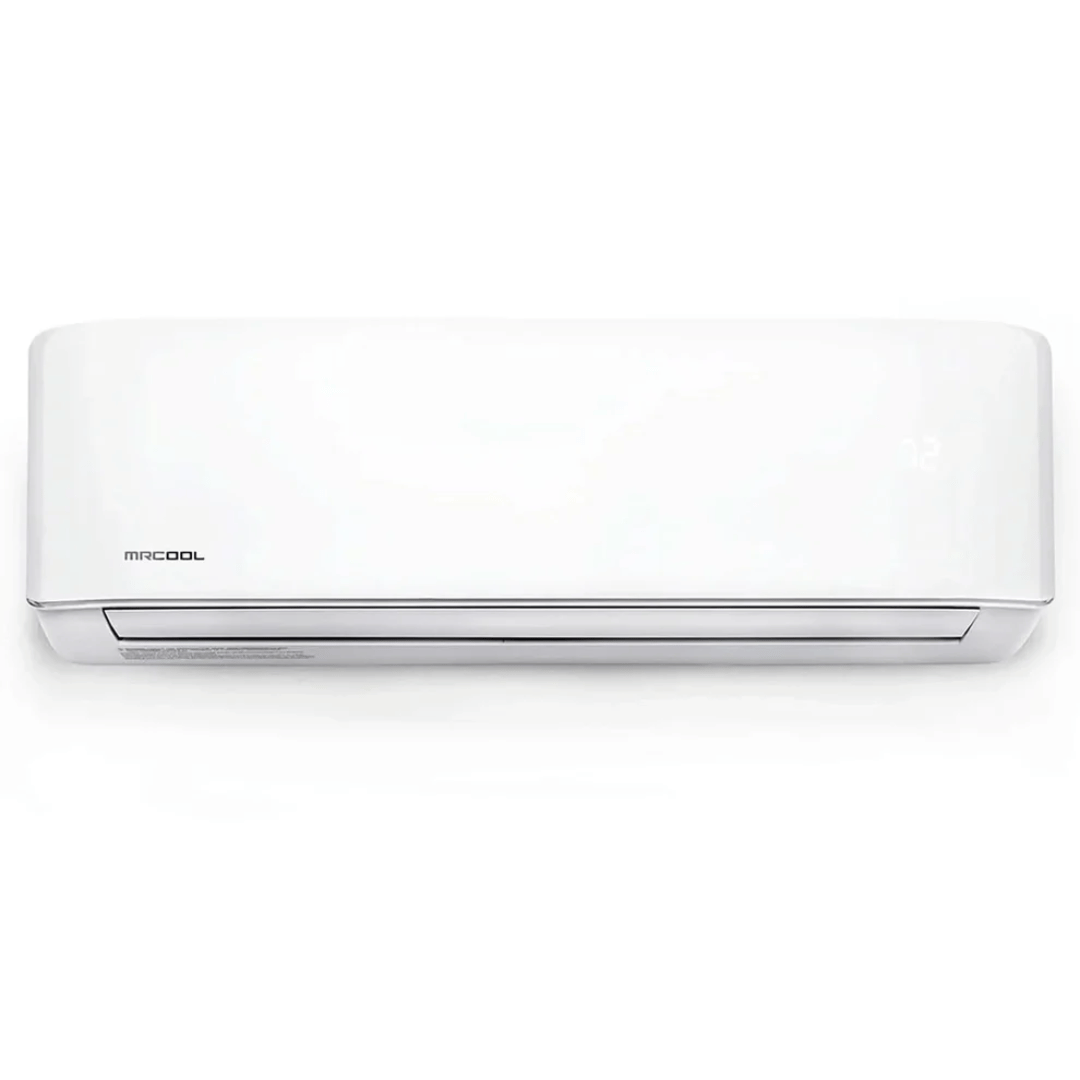

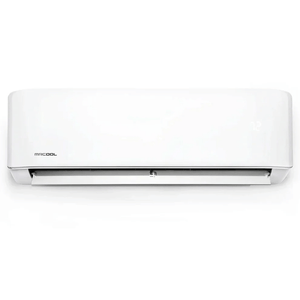

Efficient Climate Control: MRCOOL 5th Gen Advantage 18k BTU Wall Mount Air Handler
Upgrade your indoor comfort with the MRCOOL 18k BTU Wall Mount Air Handler, the high-capacity indoor component of the Advantage 5th Gen series. Designed to condition larger spaces up to 800 square feet, this unit operates on a 208-230V power supply, making it the ideal solution for master suites, open-concept living rooms, basements, and light commercial spaces.
Engineered for the modern home, this wall mount air handler is compatible with the latest R-454B refrigerant, ensuring your system meets new environmental standards while delivering a system efficiency rating of up to 19.2 SEER2. With integrated SmartHVAC Wi-Fi technology, you can monitor and adjust your room's temperature from anywhere using your smartphone or voice commands with Alexa and Google Assistant.
⚠️ Important Installation Notice
This listing is for the Indoor Wall Mount Air Handler Only. It must be paired with a compatible 230V outdoor condenser and installed by a licensed HVAC professional. The unit does not come pre-charged.
Key Features and Benefits
- Powerful Airflow: Designed as a high-capacity wall mount air handler, it delivers up to 429.7 CFM of airflow to rapidly heat or cool large rooms without hot spots.
- SmartHVAC Wi-Fi Control: Built-in module allows for seamless remote control via the SmartHVAC app (iOS/Android) and voice integration with Amazon Alexa and Google Assistant.
- R-454B Compatibility: optimized to work with the next-generation, low-GWP R-454B refrigerant, ensuring eco-friendly operation and future-proof compliance.
- Whisper-Quiet Mode: Despite its power, the fan operates as quietly as 19 dB(A) in low mode, ensuring your sleep or conversations aren't interrupted.
- Intelligent Features: Equipped with Sleep Mode, Louver Position Memory, and Auto Restart, this unit automatically restores your preferred settings after power interruptions.
- Sleek Design: The modern white casing features a hidden LED display, providing a clean look that fits seamlessly on any wall.
Smart Control from Anywhere
Control your MRCOOL® Advantage ductless mini split remotely using your smartphone or voice commands. The system is fully compatible with Amazon Alexa and Google Assistant, allowing temperature adjustments, mode changes, and scheduling through the SmartHVAC app or supported voice devices.
Install Almost Anywhere
Ductless mini split systems offer flexible installation without ductwork or structural disruption.
- Wall-mounted indoor unit preserves windows and floor space
- Ideal for spaces without existing ducts
- Suitable for garages, sunrooms, additions, offices, and remodeled rooms
The Advantage Series brings efficient heating and cooling to spaces traditional HVAC systems can’t easily reach.
Specifications
- Brand Name: MRCOOL
- Series: Advantage 5th Gen
- Model: A-18-HP-WMAH-230D-O
- Unit Type: Wall Mount Air Handler (Indoor Unit)
- Cooling/Heating Capacity: 18,000 BTU
- Voltage: 208-230V
- Phase: 1
- Cycle: 60 Hz
- Refrigerant Compatibility: R-454B (Must be charged on-site)
- SEER2 Potential: 19.2 (System dependent)
- Airflow (CFM): 429.7 (Max) / 217.8 (Min)
- Sound Level: Low 19 dB(A) / High 50.5 dB(A)
- Liquid Line Size: 1/4 inch
- Suction Line Size: 1/2 inch
- Net Dimensions: 37.99" x 12.56" x 8.46"
- Net Weight: 24.47 lbs
- Controller: Remote Control & Wi-Fi Module Included
Frequently Asked Questions
Can I use this 18k air handler with a 12k condenser?
No. You must match the capacity. An 18k wall mount air handler requires an 18k condenser. Mismatching sizes will cause system failure and poor performance.
Does this unit plug into a standard outlet?
No. This is a 230V unit that is hardwired. It receives power and communication signals directly from the outdoor condenser unit.
Is the refrigerant included in this unit?
No. Indoor air handlers are pressurized with nitrogen for testing but do not contain refrigerant. The refrigerant is stored in the outdoor condenser.
Does this fit on the same bracket as the 12k model?
Likely not. The 18k unit is significantly wider (approx. 38 inches) and heavier than the 12k model. You will likely need to adjust your wall bracket spacing.
