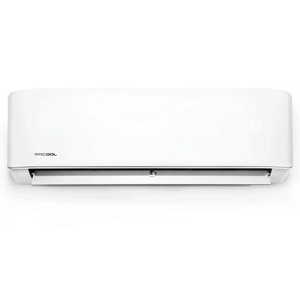

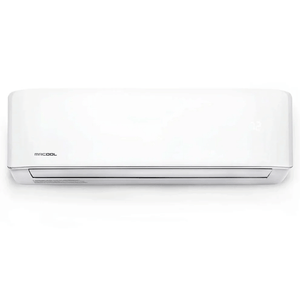

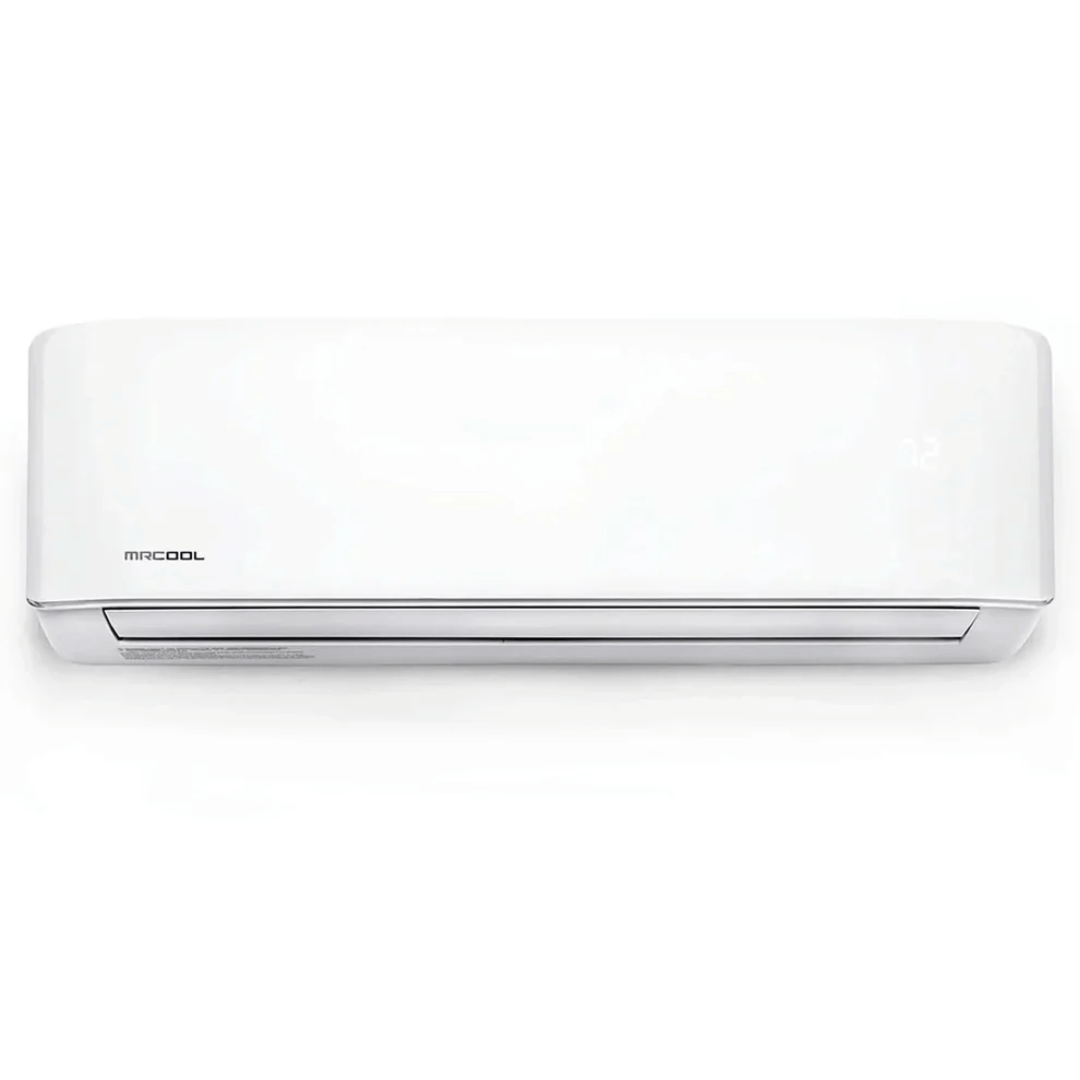

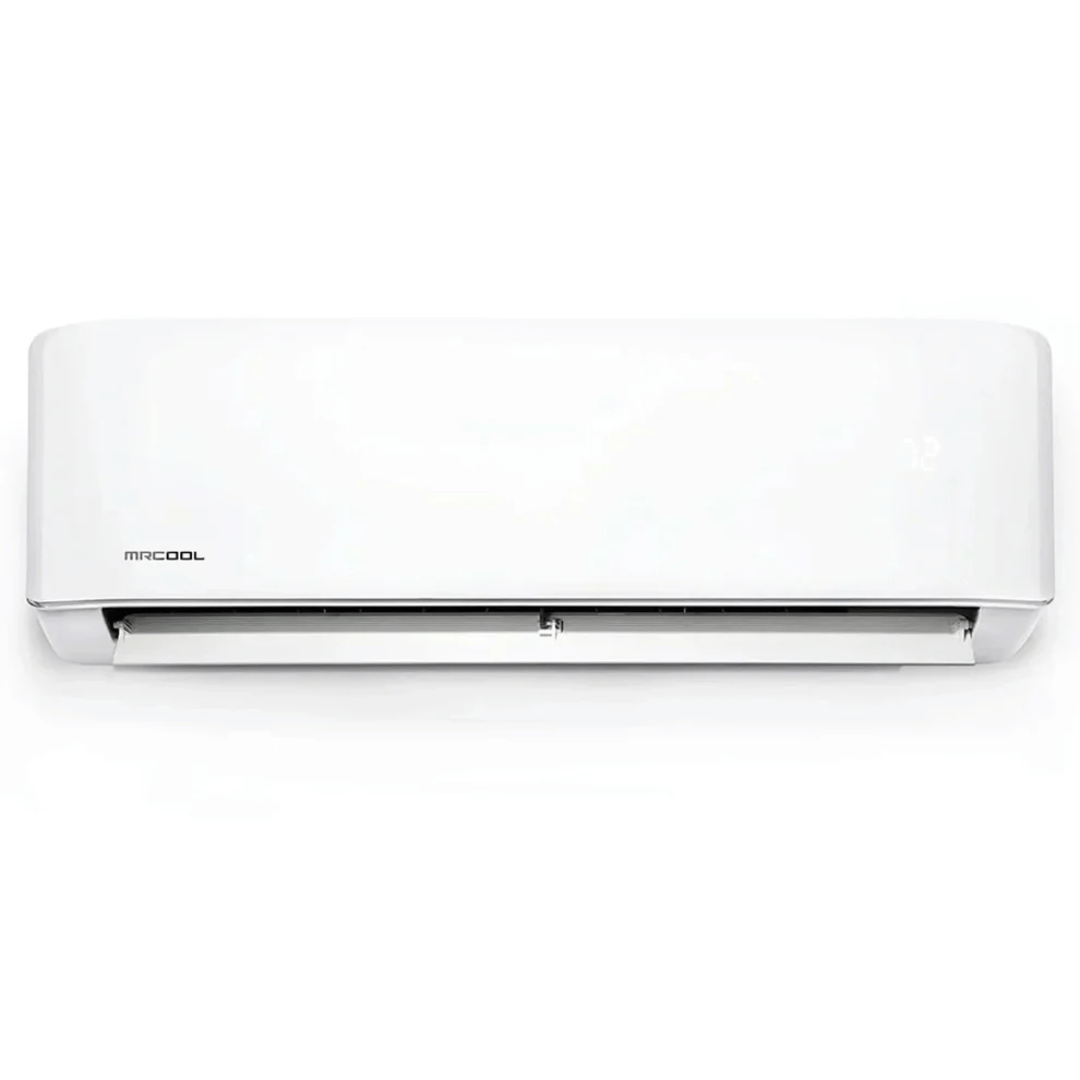

MRCOOL 5th Gen Advantage 24K BTU Wall Mount Air Handler 230V
$528.00$659.00
Have Questions?
Chat, Call, or Text a Specialist
Found a better price? We will match or beat it! 1-844-945-3625
- Description
- Best Price Guarantee!
- Why Buy From Us
Description
Transform Your Living Space with the High-Capacity MRCOOL 24k BTU Wall Mount Air Handler
Elevate the comfort of your largest rooms with the MRCOOL 24k BTU Wall Mount Air Handler, the powerful indoor anchor of the Advantage 5th Gen series. Engineered to condition expansive spaces up to 1,000 square feet, this high-capacity unit runs on a 208-230V power supply, delivering the robust performance needed for open-concept living areas, large master suites, server rooms, or light commercial offices.
Designed for modern efficiency and convenience, this wall mount air handler is compatible with the latest eco-friendly R-454B refrigerant, contributing to a system efficiency rating of up to 18.7 SEER2. It comes standard with the SmartHVAC Wi-Fi module, giving you total control over your climate via the smartphone app or voice commands with Amazon Alexa and Google Assistant.
⚠️ Important Installation Notice
This listing is for the Indoor Wall Mount Air Handler Only. It must be paired with a compatible 24k 230V outdoor condenser and installed by a licensed HVAC professional. The unit does not come pre-charged.
Key Features and Benefits
- Massive Room Coverage: With 24,000 BTUs of power, this wall mount air handler effectively manages the climate in large spaces up to 1,000 sq. ft.
- SmartHVAC Wi-Fi Integration: Adjust temperatures, set schedules, and switch modes from anywhere using the SmartHVAC app (iOS/Android) or voice assistants like Alexa and Google Assistant.
- R-454B Ready: optimized for use with the new low-GWP R-454B refrigerant, ensuring your system meets the latest environmental safety standards.
- High-Efficiency Potential: When paired with the matching condenser, this unit supports an impressive 18.7 SEER2 rating, keeping high-capacity cooling affordable.
- Intelligent Memory: Features Louver Position Memory and Auto Restart, ensuring the unit returns to your exact preferences automatically after a power outage.
- Sleep Mode: Gradually adjusts the temperature throughout the night to ensure comfortable sleep while reducing energy consumption.
Smart Control from Anywhere
Control your MRCOOL® Advantage ductless mini split remotely using your smartphone or voice commands. The system is fully compatible with Amazon Alexa and Google Assistant, allowing temperature adjustments, mode changes, and scheduling through the SmartHVAC app or supported voice devices.
Install Almost Anywhere
Ductless mini split systems offer flexible installation without ductwork or structural disruption.
- Wall-mounted indoor unit preserves windows and floor space
- Ideal for spaces without existing ducts
- Suitable for garages, sunrooms, additions, offices, and remodeled rooms
The Advantage Series brings efficient heating and cooling to spaces traditional HVAC systems can’t easily reach.
Specifications
- Brand Name: MRCOOL
- Series: Advantage 5th Gen
- Model: A-24-HP-WMAH-230D-O
- Unit Type: Wall Mount Air Handler (Indoor Unit)
- Cooling/Heating Capacity: 24,000 BTU (2 Ton)
- Voltage: 208-230V
- Phase: 1
- Cycle: 60 Hz
- Refrigerant Compatibility: R-454B (Must be charged on-site)
- SEER2 Potential: 18.7 (System dependent)
- Controller: Remote Control & Wi-Fi Module Included
- App Compatibility: Yes (iOS & Android)
- Warranty: 1-Year Parts / 1-Year Remote (Requires Professional Installation)
Frequently Asked Questions
Can I use this 24k air handler with a smaller condenser?
No. You must match the capacity exactly. A 24k wall mount air handler requires a 24k condenser. Mismatching sizes will result in poor performance and potential system damage.
Does this unit contain refrigerant?
No. Indoor air handlers are shipped pressurized with nitrogen (for leak testing) but do not contain refrigerant. The refrigerant is stored in the outdoor condenser unit.
Is this unit hardwired or plug-in?
This is a 230V unit that must be hardwired. It receives its power and communication signals directly from the outdoor condenser via the interconnect cable.
Can I install this myself?
No. Unlike the DIY series, the Advantage line requires a licensed HVAC professional to mount the unit, connect the refrigerant piping, and vacuum the system.
