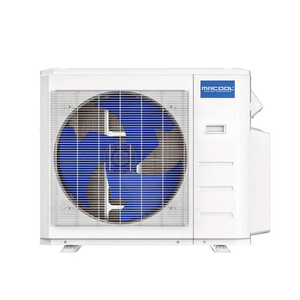

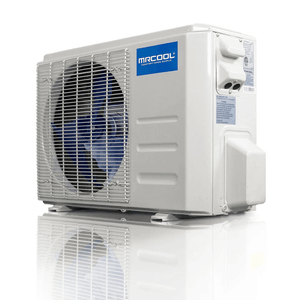

MRCOOL 5th Gen Advantage 36K BTU Heat Pump Condenser 230V
$1,930.00$2,408.00
Have Questions?
Chat, Call, or Text a Specialist
Found a better price? We will match or beat it! 1-844-945-3625
- Description
- Best Price Guarantee!
- Why Buy From Us
Description
Commercial-Grade Power: MRCOOL 5th Gen Advantage 36k BTU Air Condenser (230V)
Experience the ultimate in residential climate control with the MRCOOL 36k BTU Air Condenser, the powerhouse outdoor unit of the Advantage 5th Gen series. With a massive 3-Ton capacity, this unit is engineered to heat and cool large open-concept homes, light commercial spaces, or multi-room zones up to 1,500 square feet.
Running on a robust 208-230V power supply, this heavy-duty condenser is updated with R-454B eco-refrigerant, balancing maximum output with reduced environmental impact. It achieves a dependable 18.0 SEER2 efficiency rating, delivering powerful performance without excessive energy costs. To ensure longevity, the unit is fortified with Gold Fin™ corrosion resistance, protecting the high-volume coils from weather and humidity for years of reliable service.
>Note: This listing is for theOutdoor Air Condenser Only. It must be paired with a compatible 36k indoor air handler and installed by a licensed HVAC professional.
Key Features and Benefits
- Maximum Room Coverage: Delivers 36,000 BTUs (3 Tons) of heating and cooling, making it the ideal solution for large living rooms, workshops, or small office buildings.
- R-454B Future-Proofing: Pre-charged with next-generation low-GWP refrigerant, ensuring your system meets the latest federal efficiency and environmental standards.
- Gold Fin™ Protection: A specialized anti-corrosive coating shields the condenser coils from salt, rain, and oxidation, which is vital for maintaining efficiency in a high-capacity unit.
- Smart Home Capable: When paired with the Advantage Series air handler, this unit supports SmartHVAC Wi-Fi control via app, Amazon Alexa, and Google Assistant.
- Energy Efficient: Maintains an 18.0 SEER2 rating, providing the perfect balance of commercial-grade power and residential energy savings.
- Quiet Operation: Despite its size, the fully enclosed fan motor and advanced sound dampening keep operational noise low (~54-60 dB), minimizing outdoor disturbance.
- Auto-Restart: Automatically resumes operation at the previous settings after a power failure, ensuring large spaces return to comfort quickly.
Defend Against Rust and Salt Damage
Coastal environments and high humidity destroy standard metal parts. This unit fights back with Gold Fin technology. A specialized gold coating covers the condenser coils to stop corrosion before it starts. Rain and salt spray slide right off the surface.
You get a reliable machine that lasts much longer than unprotected models. The permanently lubricated fan motor blocks out dirt to reduce maintenance needs.
Take Total Control from Anywhere
You do not need to leave the couch to change the temperature. The SmartHVAC module connects your system to Wi-Fi instantly. You can adjust the heat or AC settings using your smartphone app on iOS or Android.
It also pairs with Amazon Alexa and Google Assistant for simple voice commands. You manage your home climate exactly how you want it from any location.
Technical Specifications
- Brand Name: MRCOOL
- Series: Advantage 5th Gen
- Unit Type: Air Condenser (Outdoor Unit)
- Capacity: 36,000 BTU (3 Ton)
- Voltage: 208-230V / 1 Phase / 60 Hz
- SEER2 Efficiency: 18.0
- Refrigerant: R-454B (Pre-charged)
- Max Fuse Breaker: 35 A
- Min Circuit Ampacity: 33 A
- Compressor Type: Rotary (DC Inverter)
- Condenser Protection: Gold Fin™ Coating
- Liquid Line Size: 3/8 inch
- Suction Line Size: 5/8 inch
- Max Line Set Length: 213 ft
- Net Dimensions (WxHxD): Approx. 37.24" x 31.89" x 16.14"
- Net Weight: Approx. 150 lbs
- Installation: Licensed HVAC Technician Required
Frequently Asked Questions
Can I install this 36k condenser with a smaller indoor unit?
No. You must match the tonnage. A 36k air condenser requires a 36k indoor air handler. Mismatching components will lead to compressor failure and void the warranty.
What size line set does this unit requires?
This 3-ton unit uses a 3/8" Liquid Line and a 5/8" Suction Line. (Note: This is larger than the 1/4" x 1/2" lines used on the 18k/24k models).
What breaker size do I need?
This unit draws significantly more power than smaller models. It requires a dedicated circuit with a 35 Amp breaker and a Minimum Circuit Ampacity (MCA) of 33 Amps.
Is this compatible with the DIY series?
No. The Advantage Series is a standard split system requiring professional installation (flaring, vacuuming, charging). It is not compatible with MRCOOL DIY air handlers or pre-charged Quick Connect® line sets.
