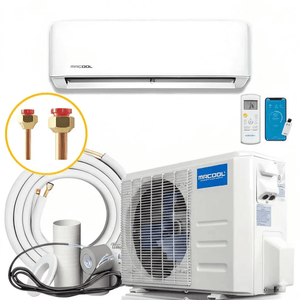

MRCOOL Advantage Series - R454B 9K BTU Heat Pump 115V Complete System
$895.00$1,136.65
Have Questions?
Chat, Call, or Text a Specialist
Found a better price? We will match or beat it! 1-844-945-3625
- Description
- Best Price Guarantee!
- Why Buy From Us
Description
Efficient Comfort for Small Spaces with a 115V Ductless Mini Split
The MRCOOL Advantage Series 5th Gen 9K BTU Ductless Mini Split delivers efficient heating and cooling using standard 115V power. Designed for bedrooms, offices, and small living areas, it provides quiet, reliable performance without ductwork. This complete system uses R-454B refrigerant and requires professional installation.
⚠️ Important Installation Notice
Note: The MRCOOL® Advantage Series is not DIY-installable. This system must be installed by a licensed HVAC professional to ensure proper operation, safety, and full warranty coverage.
Key Features and Benefits
- 9,000 BTU Heating & Cooling Capacity -Sized for rooms up to approximately 400 sq. ft., ideal for bedrooms, offices, and small living spaces.
- 115V Power Requirement - Operates on standard household voltage, making it suitable for homes without 230V service.
- R-454B Refrigerant - Lower Global Warming Potential than R-410A while maintaining strong efficiency and performance.
- High Energy Efficiency Ratings - SEER2 up to 21.5 and ENERGY STAR® certified for reduced energy consumption.
- DC Inverter Technology - Adjusts output automatically for consistent temperatures and improved efficiency.
- Built-In Wi-Fi Control - Manage settings through the SmartHVAC app on iOS or Android devices.
- Quiet Indoor Operation - Indoor sound levels as low as 18 dBA for comfortable everyday use.
- Single-Zone System - Designed to condition one dedicated space with precise temperature control.
- Professional Installation Required - Ensures proper operation, safety, and warranty eligibility.
Smart Control from Anywhere
Control your MRCOOL® Advantage ductless mini split remotely using your smartphone or voice commands. The system is fully compatible with Amazon Alexa and Google Assistant, allowing temperature adjustments, mode changes, and scheduling through the SmartHVAC app or supported voice devices.

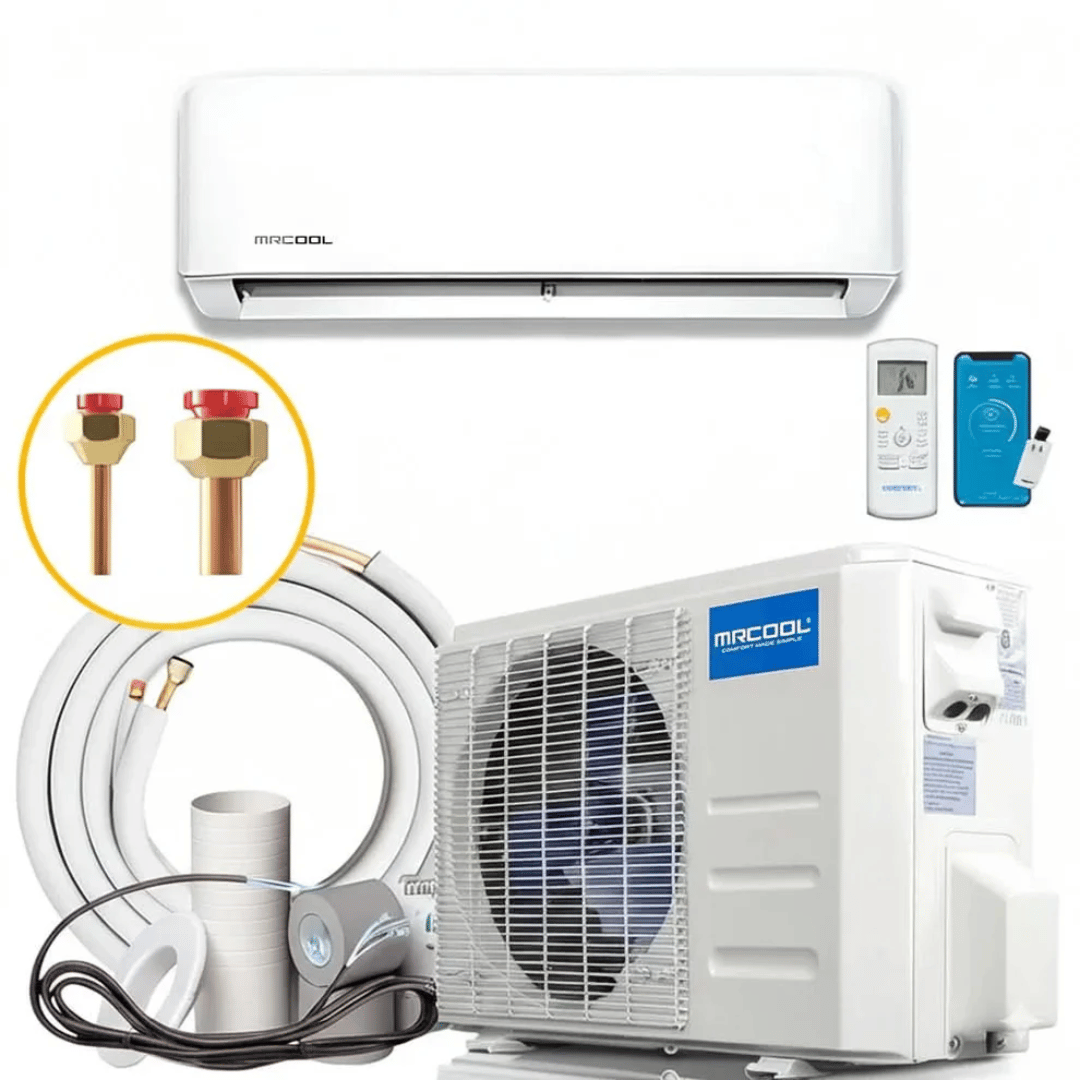

Complete 16-ft Installation Kit Included
Each MRCOOL® Advantage system includes a complete 16-ft installation kit designed for accurate, professional setup. The kit includes:
- Pre-flared refrigerant line sets
- Communication cable
- Condensate drain line
- Drain joint and seal
- Indoor unit mounting plate
- Cardboard wall template
Everything needed for a clean, efficient installation is included for the installer.
Gold Fin® Condenser Protection
Built for long-term outdoor performance, the MRCOOL® Advantage condenser features Gold Fin® coil coating for enhanced durability.
- Resists moisture, salt, and airborne chemicals
- Hydrophilic coating helps repel water droplets
- Designed for harsh and coastal environments
Benefits:
- Up to 5× corrosion resistance
- Approximately 20% longer condenser lifespan
- Maintains efficiency over time
Install Almost Anywhere
Ductless mini split systems offer flexible installation without ductwork or structural disruption.
- Wall-mounted indoor unit preserves windows and floor space
- Ideal for spaces without existing ducts
- Suitable for garages, sunrooms, additions, offices, and remodeled rooms
The Advantage Series brings efficient heating and cooling to spaces traditional HVAC systems can’t easily reach.
Specifications

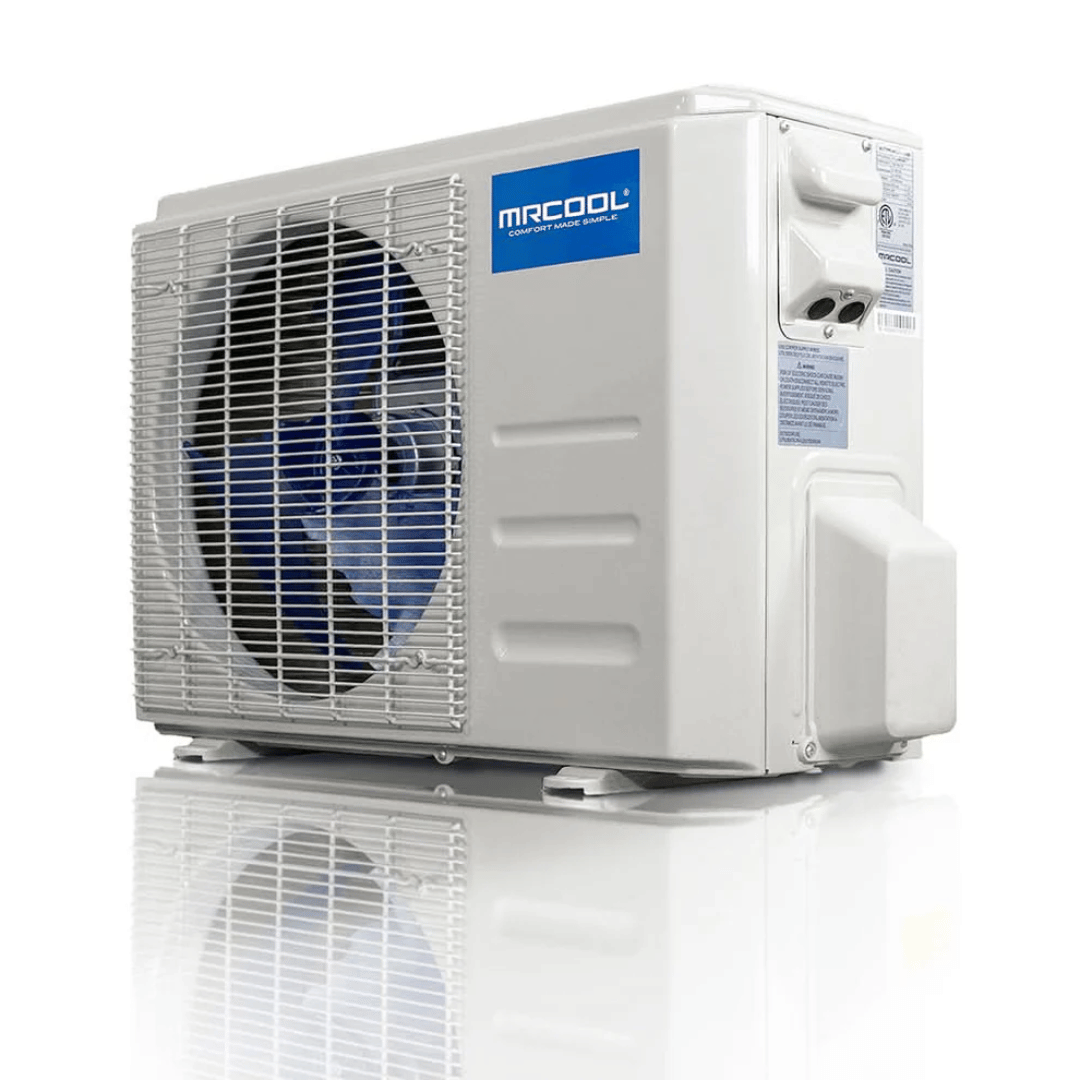

Condenser Specifications
- Model: A-09-HP-C-115D-O
- Cooling Capacity: 9,000 BTU
- Heating Capacity: 10,000 BTU
- SEER2: 21.5
- EER2: 12.5
- HSPF2-4: 9
- HSPF2-5: 7
- Voltage: 115V
- Phase: 1
- Cycle: 60 Hz
- Minimum Circuit Ampacity: 18 A
- Maximum Fuse Breaker: 20 A
- Refrigerant Type: R-454B
- Refrigerant Volume: 21.52 oz
- Inverter Type: DC
- Decibel Rating: 52.5 dBA
- Maximum Line Set Length: 82 ft
- Liquid Line Size: 1/4"
- Suction Line Size: 3/8"
- ENERGY STAR® Certified
- AHRI Certified
- ETL / UL / CSA Listed
- Net Weight: 56.66 lbs

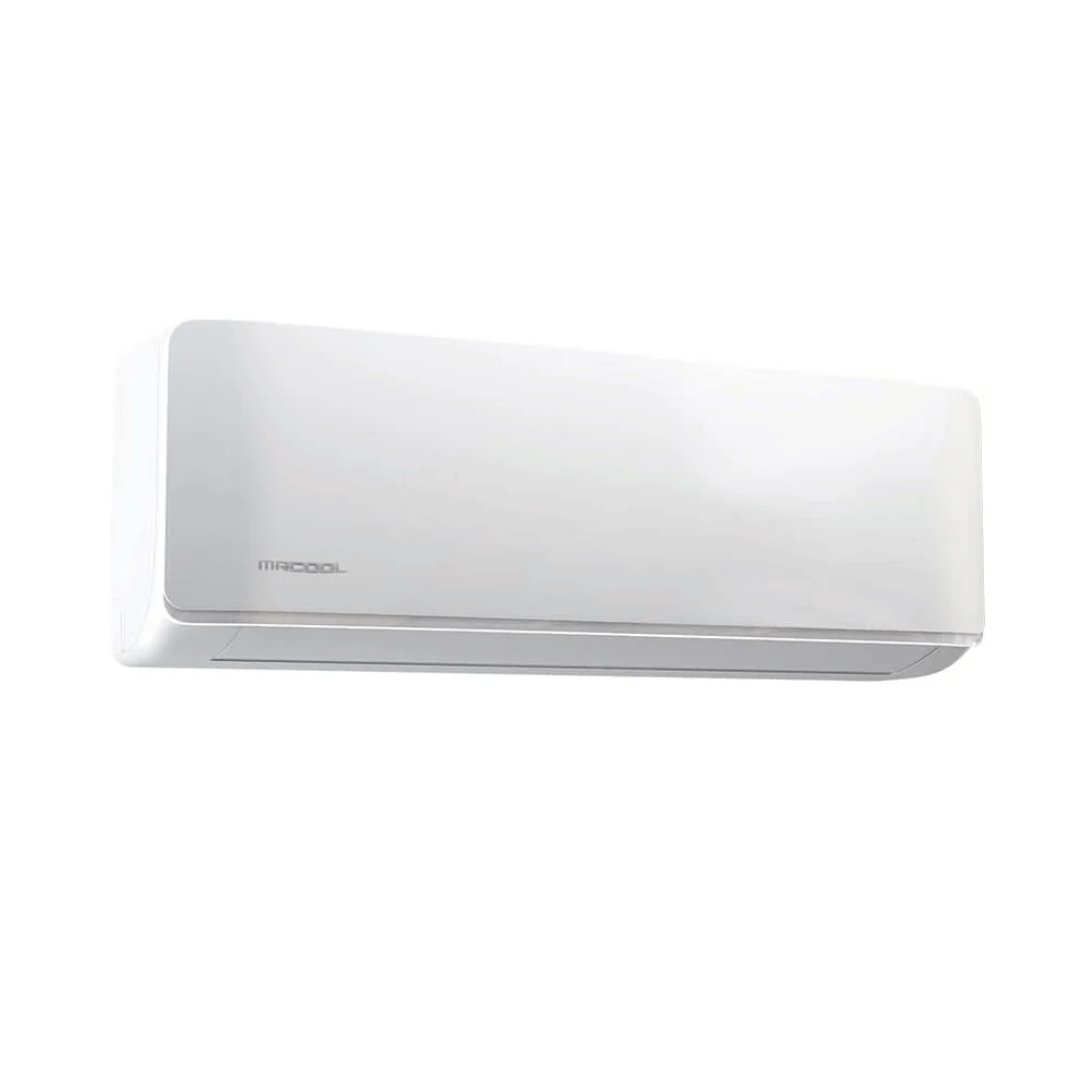

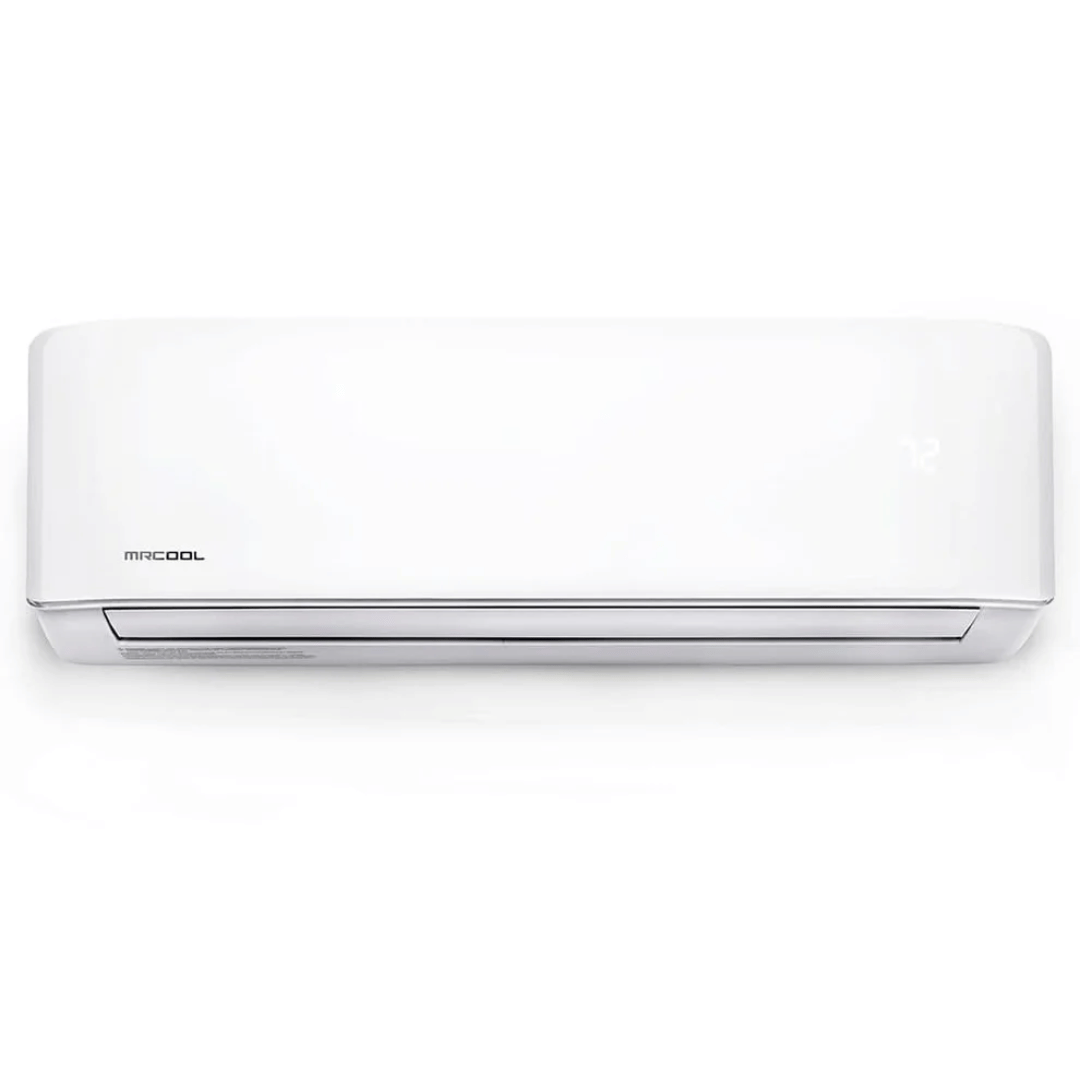

Air Handler Specifications
- Model: A-09-HP-WMAH-115D-O
- Cooling Capacity: 9,000 BTU
- Voltage: 115V
- Phase: 1
- Cycle: 60 Hz
- Airflow (CFM): 282.5 / 235.4 / 206.0 / 164.8 / 117.7
- Sound Level: 18–43 dBA
- Number of Fan Speeds: 5
- Mount Type: Wall-mounted
- Filter Type: Reusable
- Wi-Fi Compatible
- Remote Control Included
- AHRI Certified
- ETL / UL / CSA Listed
- Net Weight: 17.42 lbs
Warranty Coverage
- 2-Year Parts Warranty
- 1-Year Compressor Warranty
- 1-Year Remote Control Warranty
- Limited Lifetime Coverage available with MRCOOL® Care Program enrollment
Frequently Asked Questions
Is this ductless mini split DIY installable?
No. The MRCOOL Advantage Series must be installed by a licensed HVAC professional.
What size space can this system handle?
It is designed for rooms up to approximately 400 square feet.
Does this system require 230V power?
No. It operates on standard 115V household power.
Is this system ENERGY STAR® certified?
Yes. It is ENERGY STAR® and AHRI certified for efficiency and performance.
