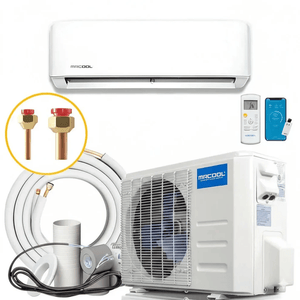

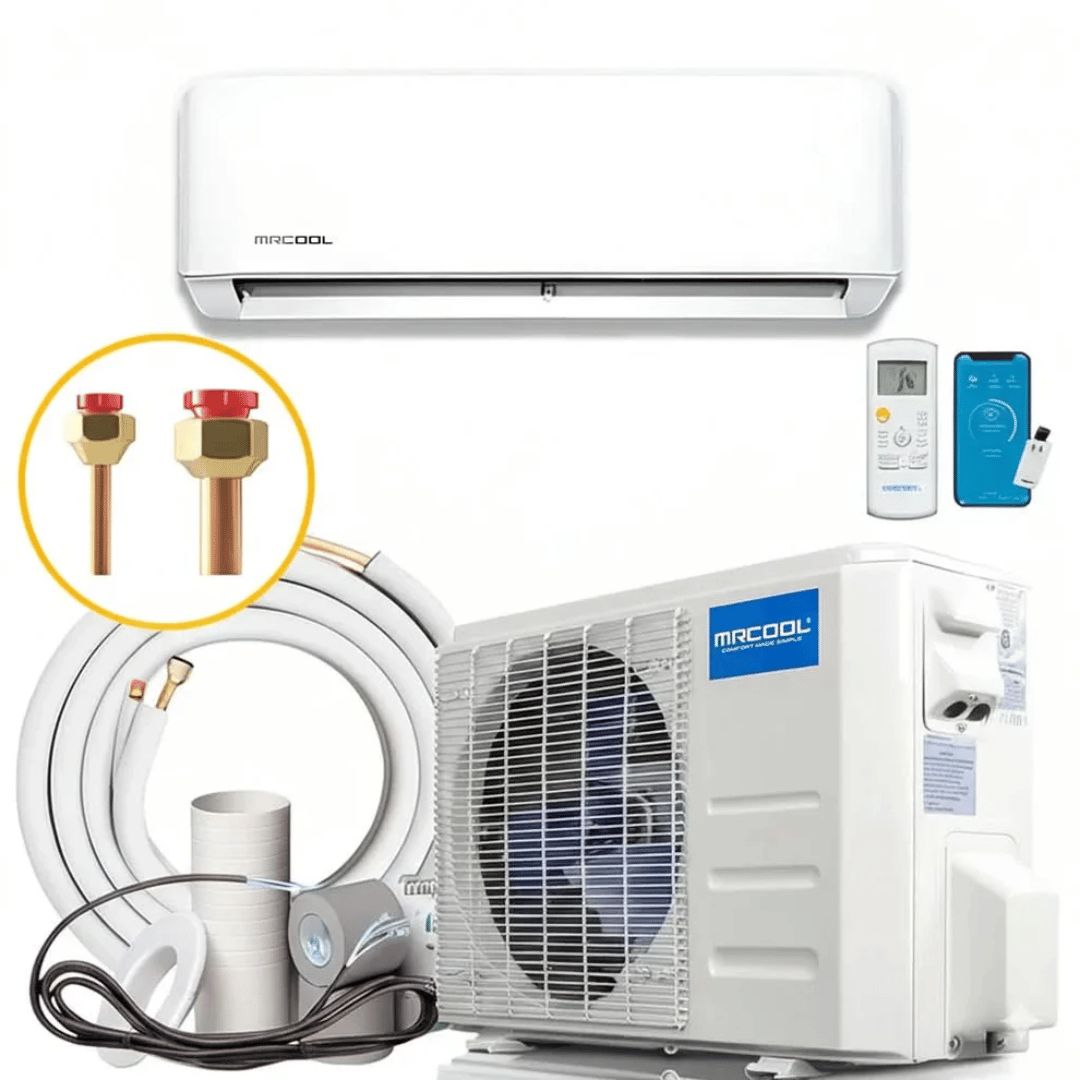

MRCOOL Advantage Series - R454B 9K BTU Heat Pump 230V Complete System
$879.00$1,116.33
Have Questions?
Chat, Call, or Text a Specialist
Found a better price? We will match or beat it! 1-844-945-3625
- Description
- Best Price Guarantee!
- Why Buy From Us
Description
Efficient 230V Ductless Mini Split Heating & Cooling for Small Spaces
The MRCOOL Advantage Series 5th Gen 9K BTU 230V Ductless Mini Split Heat Pump delivers reliable, energy-efficient heating and cooling for rooms up to 400 sq. ft. Designed for professional installation, this system uses R-454B refrigerant for improved efficiency and lower environmental impact while maintaining quiet, consistent comfort year-round.
⚠️ Important Installation Notice
Note: The MRCOOL® Advantage Series is not DIY-installable. This system must be installed by a licensed HVAC professional to ensure proper operation, safety, and full warranty coverage.
Key Features and Benefits
- 9,000 BTU Cooling / 10,000 BTU Heating – Ideal for bedrooms, offices, and small living spaces
- 230V Power Supply – Supports efficient, consistent performance
- R-454B Refrigerant – Lower GWP and improved efficiency compared to older refrigerants
- Ductless Design – No ductwork required, reducing installation complexity
- Built-In WiFi – Control temperature remotely via the SmartHVAC app
- Quiet Operation – Low indoor sound levels for comfortable daily use
- DC Inverter Technology – Maintains steady temperatures while optimizing energy use
- ENERGY STAR® & AHRI Certified – Verified efficiency and performance standards
Smart Control from Anywhere
Control your MRCOOL® Advantage ductless mini split remotely using your smartphone or voice commands. The system is fully compatible with Amazon Alexa and Google Assistant, allowing temperature adjustments, mode changes, and scheduling through the SmartHVAC app or supported voice devices.
Complete 16-ft Installation Kit Included
Each MRCOOL® Advantage system includes a complete 16-ft installation kit designed for accurate, professional setup. The kit includes:
- Pre-flared refrigerant line sets
- Communication cable
- Condensate drain line
- Drain joint and seal
- Indoor unit mounting plate
- Cardboard wall template
Everything needed for a clean, efficient installation is included for the installer.
Gold Fin® Condenser Protection
Built for long-term outdoor performance, the MRCOOL® Advantage condenser features Gold Fin® coil coating for enhanced durability.
- Resists moisture, salt, and airborne chemicals
- Hydrophilic coating helps repel water droplets
- Designed for harsh and coastal environments
Benefits:
- Up to 5× corrosion resistance
- Approximately 20% longer condenser lifespan
- Maintains efficiency over time
Install Almost Anywhere
Ductless mini split systems offer flexible installation without ductwork or structural disruption.
- Wall-mounted indoor unit preserves windows and floor space
- Ideal for spaces without existing ducts
- Suitable for garages, sunrooms, additions, offices, and remodeled rooms
The Advantage Series brings efficient heating and cooling to spaces traditional HVAC systems can’t easily reach.
Specifications

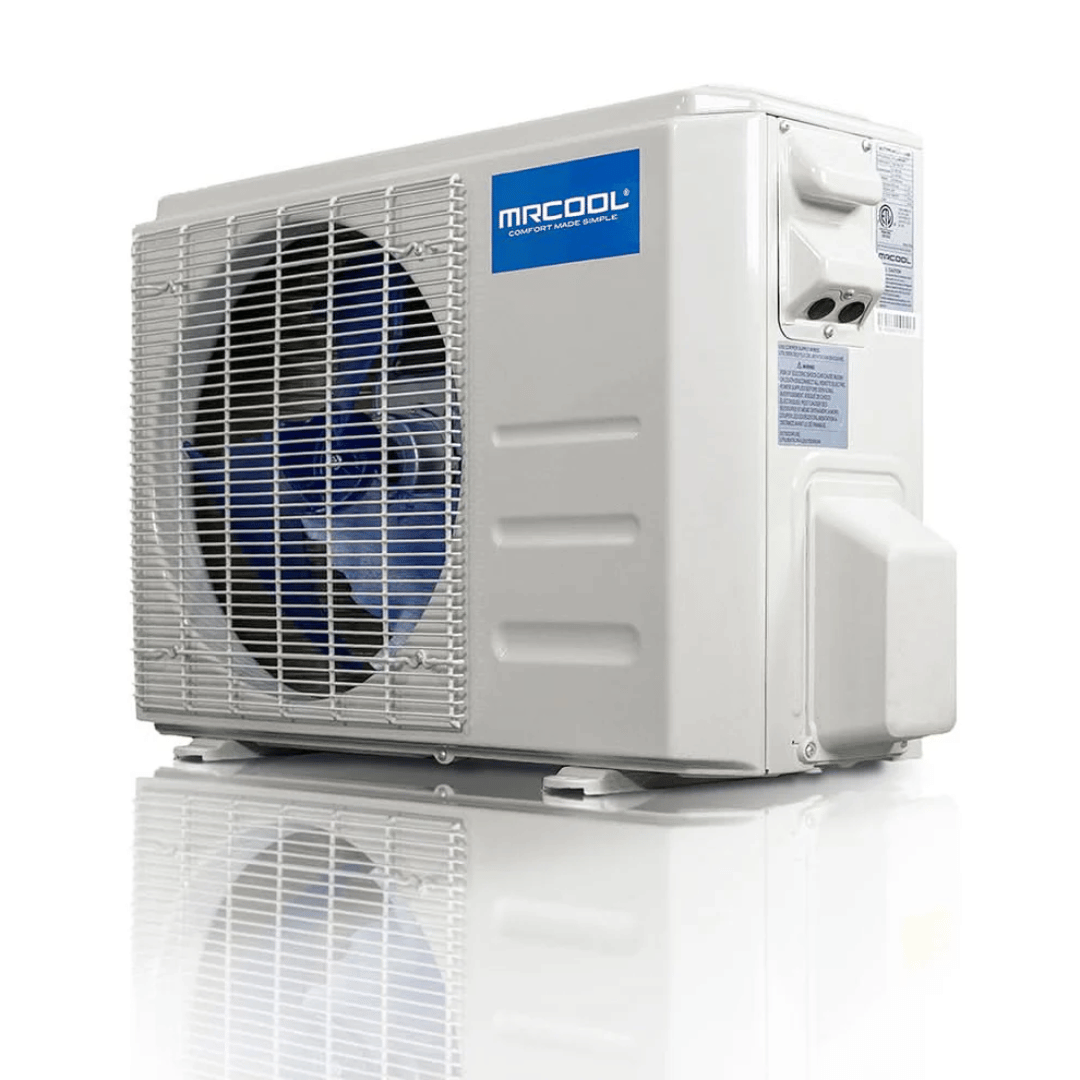

Condenser Specifications
- Brand Name: MRCOOL
- Series: Advantage 5th Gen
- Model: A-09-HP-C-230D-O
- Unit Type: Mini-Split
- Equipment Type: Condenser
- Cooling Capacity (BTU): 9000
- Heating Capacity (BTU): 10000
- Tonnage: 0.75
- SEER2: 21.2
- EER2: 12.6
- HSPF2-4: 9.1
- HSPF2-5: 7
- Voltage (V): 208–230
- Phase: 1
- Cycle: 60
- Max Fuse Breaker (A): 15
- Min Circuit Ampacity (A): 12
- Zone Capacity: 1
- Refrigerant Type: R-454B
- Refrigerant Volume (oz): 21.52
- Decibel Rating (dBA): 53.5
- Inverter: DC
- Max Lineset Length (ft): 82
- Liquid Line Size: 1/4"
- Suction Line Size: 3/8"
- Compressor Motor Type: Rotary
- Overload Protection: Yes
- ENERGY STAR Certified: Yes
- AHRI Certified: Yes
- Net Dimensions (WxHxD): 30.12" x 21.85" x 11.93"
- Net Weight: 54.23 lbs

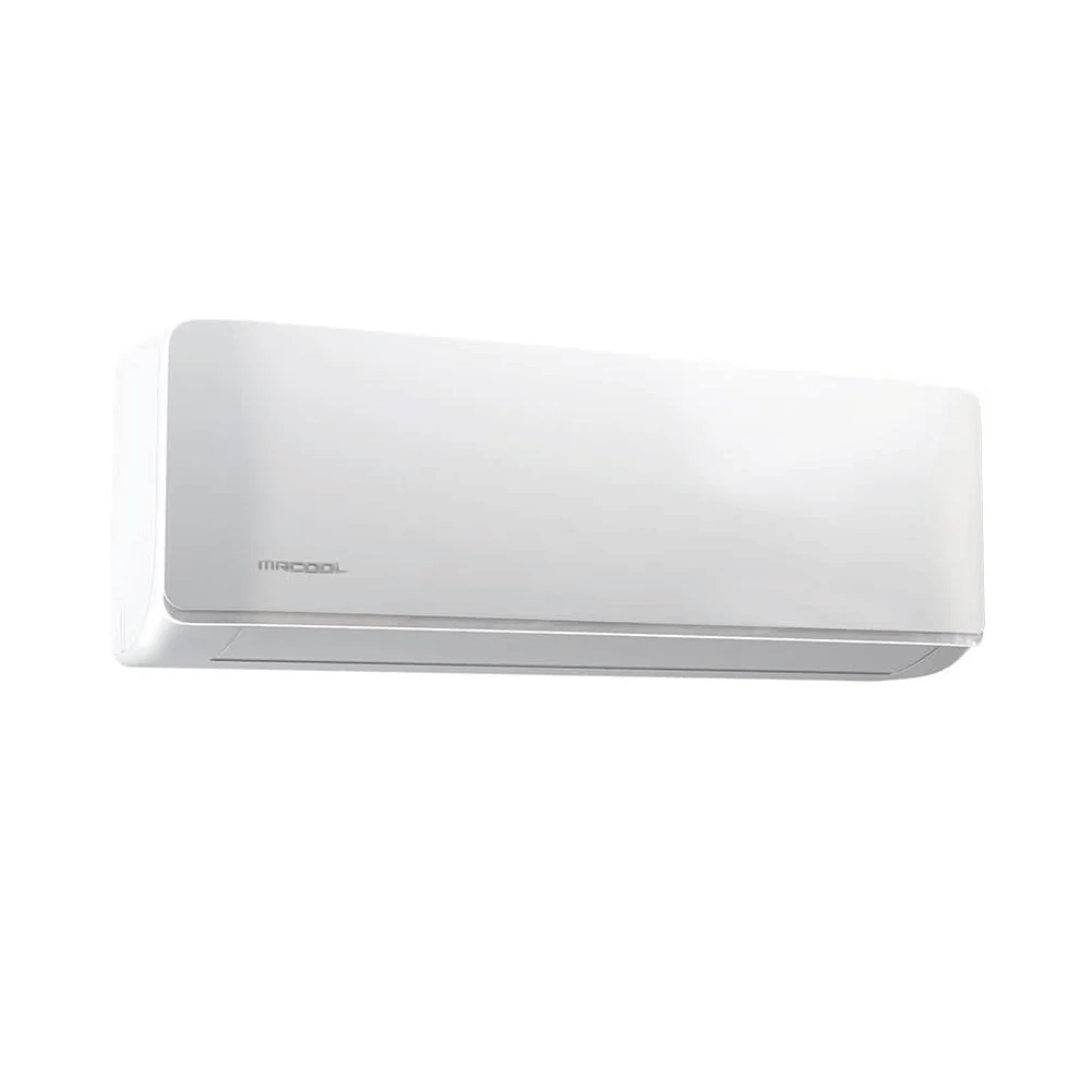

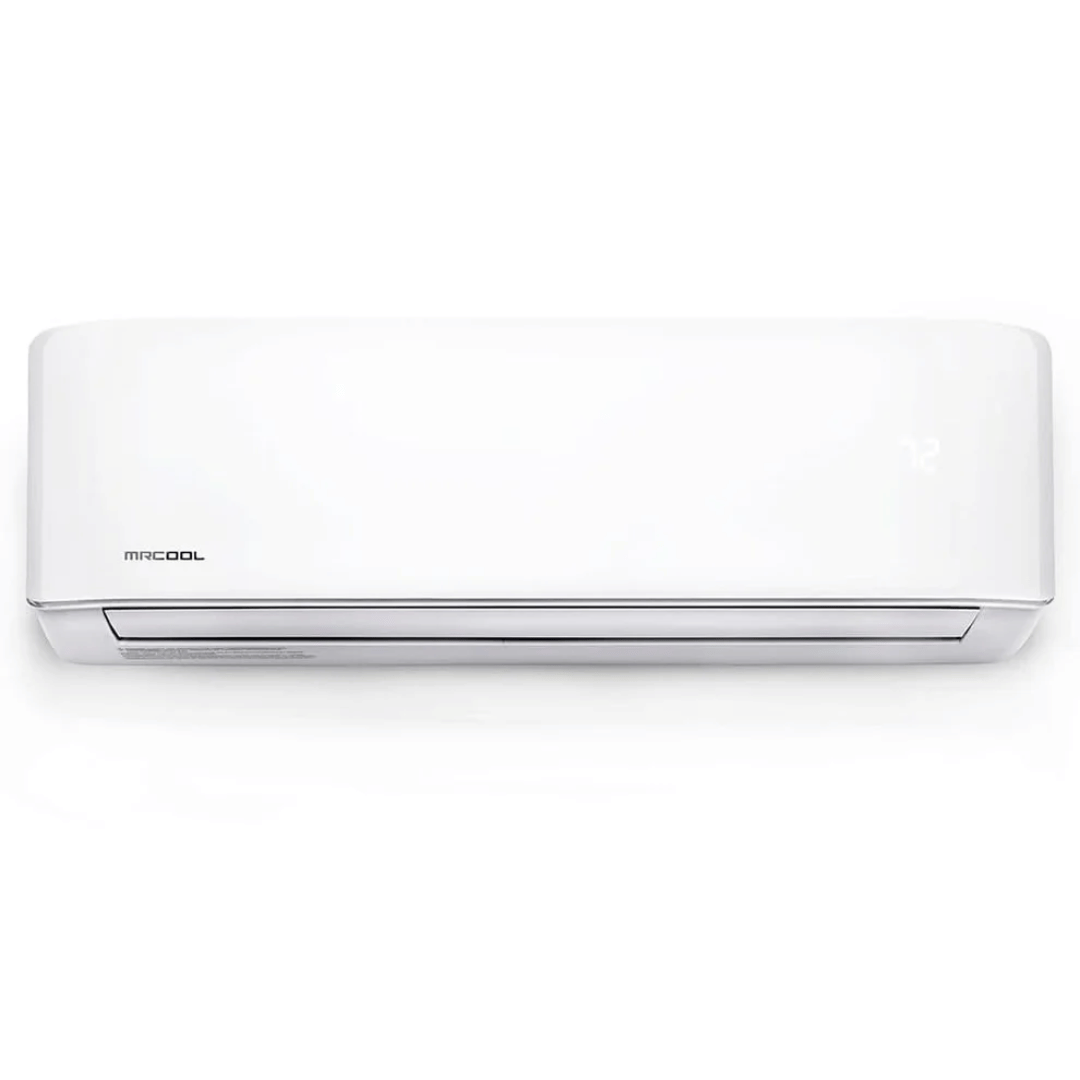

Air Handler Specifications
- Brand Name: MRCOOL
- Series: Advantage 5th Gen
- Model: A-09-HP-WMAH-230D-O
- Unit Type: Mini-Split
- Equipment Type: Air Handler
- Cooling Capacity (BTU): 9000
- Tonnage: 0.75
- Voltage (V): 208–230
- Phase: 1
- Cycle: 60
- Mount Type: Wall
- Color: White
- CFM: 312.0 / 264.9 / 194.2 / 153.0 / 105.9
- Number of Speeds: 5
- Decibel Rating (dBA): 31.5
- Decibel Rating Low (dBA): 18.5
- Decibel Rating High (dBA): 40.5
- Filter Type: Reusable
- Max Lineset Length (ft): 82
- Liquid Line Size: 1/4"
- Suction Line Size: 3/8"
- App Compatibility: Yes
- Works With iOS: Yes
- Works With Android: Yes
- Remote Control Included: Yes
- Net Dimensions (WxHxD): 28.43" x 11.42" x 7.36"
- Net Weight: 16.98 lbs
Warranty Coverage
- 2-Year Parts Warranty
- 1-Year Compressor Warranty
- 1-Year Remote Control Warranty
- Limited Lifetime Coverage available with MRCOOL® Care Program enrollment
Frequently Asked Questions
Is this ductless mini split DIY-installable?
No. The MRCOOL Advantage Series must be installed by a licensed HVAC professional for proper operation and warranty coverage.
What size room is the 9K BTU system designed for?
It is recommended for spaces up to approximately 400 square feet, depending on insulation and layout.
Does this system support WiFi control?
Yes. Built-in WiFi allows remote control through the SmartHVAC app on iOS and Android devices.
What refrigerant does this system use?
This unit uses R-454B refrigerant, which has a lower Global Warming Potential and improved efficiency compared to older refrigerants.
