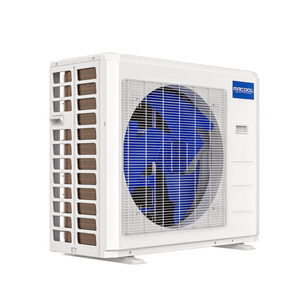

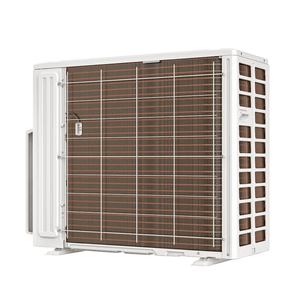

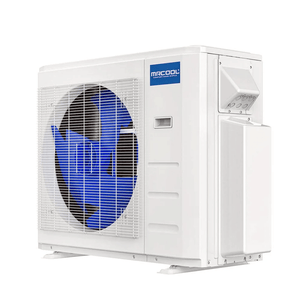

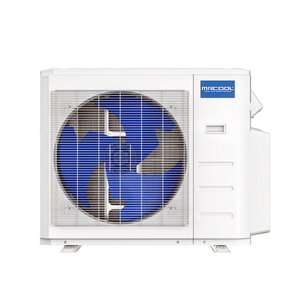

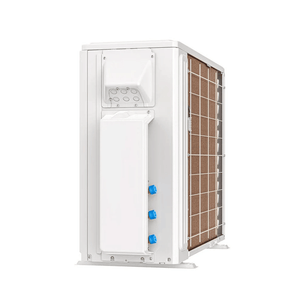

MRCOOL DIY® 5th Gen 36,000 BTU Multi-Zone Mini Split Condenser 230V
$2,543.00$3,229.61
Have Questions?
Chat, Call, or Text a Specialist
Found a better price? We will match or beat it! 1-844-945-3625
- Description
- Best Price Guarantee!
- Why Buy From Us
Description
Power Up to 5 Zones With a High-Efficiency Mini Split Condenser Built for DIY Installation
The MRCOOL DIY® 5th Gen 36,000 BTU Multi-Zone Mini Split Condenser is designed for homeowners who want flexible, whole-home comfort without hiring an HVAC contractor. This high-capacity outdoor unit supports up to five indoor air handlers, allowing you to heat and cool multiple rooms independently from a single condenser.
Pre-charged with R-454B refrigerant and compatible with MRCOOL’s DIY® Quick Connect® line sets, this condenser delivers powerful performance, strong efficiency ratings, and a straightforward installation process. A minimum of two indoor units is required, with support for up to 39,000 BTU total indoor capacity.
Important Notes and Recommended Coverage Area
- This listing includes the outdoor mini split condenser only. Indoor air handlers and line sets are sold separately.
- Designed to serve Up to 1,550 sq. ft., depending on insulation quality, ceiling height, and climate zone.
Whole-Home Comfort with a Flexible Ducted Mini Split Solution
Designed to work seamlessly with MRCOOL DIY® condensers, this hybrid ducted air handler delivers efficient heating and cooling throughout your main living space while allowing additional zones to be served separately. Pair it with a wall-mounted air handler or an OuttaSight® Ceiling Cassette to independently condition a garage, office, or bonus room, giving you more control, better efficiency, and a cleaner installation without sacrificing comfort anywhere in your home.
Key Features & Benefits
- DIY Installation With No Special Tools -Pre-charged Quick Connect® line sets eliminate vacuuming and specialized HVAC tools, making installation accessible for confident DIY homeowners.
- Supports Up to Five Zones -Connect 6K, 9K, 12K, 18K, or 24K air handlers to customize comfort across bedrooms, offices, garages, or additions using one outdoor unit.
- Energy-Efficient Performance With R-454B Refrigerant - Uses a lower-GWP refrigerant that meets updated EPA standards while maintaining strong heating and cooling efficiency.
- Smart Climate Control Built In - Adjust temperatures by zone using the SmartHVAC app, wireless remote, or voice commands with Amazon Alexa and Google Assistant.
- Gold Fin® Corrosion-Resistant Condenser - Protective coating helps resist rust and salt air, extending service life in coastal and humid environments.
- DIYPRO® Armored Communication Cable - Heavy-duty cable removes the need for exterior conduit while protecting wiring from weather and pests.
- Industry-Leading Warranty Coverage - Includes a 7-year compressor warranty, 5-year parts warranty, and optional Limited Lifetime Replacement with MRCOOL Care registration.
Compatible Air Handler Combinations
(Maximum total indoor capacity: 39,000 BTU | Minimum of 2 air handlers required)
- 18K + 12K + 9K = 39K
- 12K + 12K + 12K = 36K
- 9K + 9K + 9K + 9K = 36K
- 24K + 12K = 36K
- 18K + 9K + 6K + 6K = 39K
📌 Always verify total connected BTU capacity before purchasing.
Recommended Wire Size
- 8 AWG (Recommended): Supports 33A load and 35A max fuse safely
- 10 AWG (Smaller): Not recommended—may overheat or trip breakers
- 6 AWG (Larger): Ideal for long runs and reduced voltage drop
Specifications
- Model Number: DIY-MULTI5-36HP230D-O
- Cooling Capacity: 36,000 BTU/h
- Heating Capacity: 36,000 BTU/h
- Recommended Coverage Area: Up to 1,550 sq. ft.
- SEER2: 18.0
- EER2: 8.5
- HSPF2-4: 8.5
- HSPF2-5: 6.5
- Power Supply: 208–230V, 60Hz, 1 Phase
- Minimum Circuit Ampacity: 33 A
- Maximum Fuse: 35 A
- Refrigerant Type: R-454B
- Refrigerant Charge: 109.70 oz

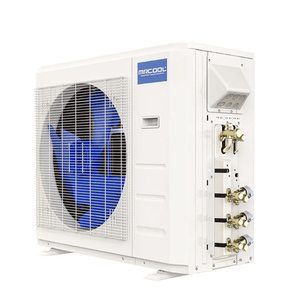

- Line Set Sizes: 3/8" Liquid x 5/8" Gas
- Net Dimensions (W × D × H): 37.24" × 16.14" × 31.89"
- Net Weight: 152.12 lbs
Frequently Asked Questions
How many indoor units can this mini split condenser support?
This condenser supports up to five indoor air handlers, with a minimum of two required for operation.
What refrigerant does this system use?
It is pre-charged with R-454B refrigerant, which has a lower global warming potential than R-410A.
Is professional installation required?
No. When paired with MRCOOL DIY® Quick Connect® line sets, installation is designed for DIY homeowners.
What size wire is recommended for installation?
8 AWG copper wire is recommended to safely support the 33A load and 35A maximum fuse rating.
