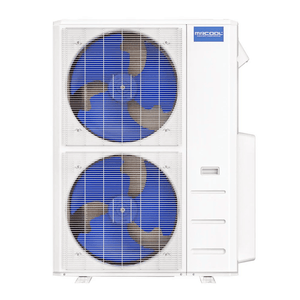

MRCOOL DIY® 5th Gen 48,000 BTU Multi-Zone Mini Split Condenser 230V
$3,228.00$4,099.56
Have Questions?
Chat, Call, or Text a Specialist
Found a better price? We will match or beat it! 1-844-945-3625
- Description
- Best Price Guarantee!
- Why Buy From Us
Description
Power Six Zones With One High-Capacity Mini Split Condenser Built for DIY Control
The MRCOOL DIY® 5th Gen 48,000 BTU Multi-Zone Mini Split Condenser is engineered for large homes, offices, and multi-room layouts that demand maximum flexibility and independent temperature control. Supporting up to six indoor air handlers, this condenser allows you to manage comfort room by room from a single outdoor unit.
Designed for straightforward DIY installation, this 230V system is pre-charged with R-454B refrigerant and pairs with MRCOOL DIY® Quick Connect® line sets, no vacuum pump or specialized HVAC tools required. A minimum of two indoor units is required, with support for up to 54,000 BTU total indoor capacity.
Important Notes and Recommended Coverage Area
- This listing includes the outdoor mini split condenser only. Indoor air handlers and line sets are sold separately.
- Designed to serve 2,000–2,500 sq. ft., depending on insulation quality, ceiling height, and climate zone.
Whole-Home Comfort with a Flexible Ducted Mini Split Solution
Designed to work seamlessly with MRCOOL DIY® condensers, this hybrid ducted air handler delivers efficient heating and cooling throughout your main living space while allowing additional zones to be served separately. Pair it with a wall-mounted air handler or an OuttaSight® Ceiling Cassette to independently condition a garage, office, or bonus room, giving you more control, better efficiency, and a cleaner installation without sacrificing comfort anywhere in your home.
Key Features & Benefits
- DIY Installation With No HVAC Tools Required -Pre-charged Quick Connect® line sets eliminate vacuuming and specialized equipment, making installation approachable for experienced DIY homeowners.

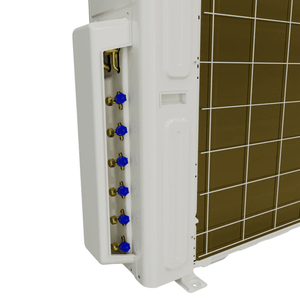

- Supports Up to Six Independent Zones - Connect 6K, 9K, 12K, 18K, 24K, or 36K air handlers to customize heating and cooling across bedrooms, offices, garages, or additions.
- Energy-Efficient Performance With R-454B Refrigerant - Uses a lower-GWP refrigerant that meets updated EPA standards while maintaining strong heating and cooling efficiency.
- Smart Climate Control by Zone - Manage temperatures through the SmartHVAC app, wireless remote, or voice commands with Amazon Alexa and Google Assistant.

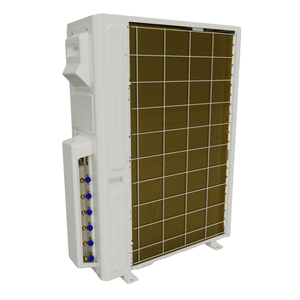

- Gold Fin® Corrosion-Resistant Condenser - Protective coating helps resist rust and salt air, extending lifespan in coastal and humid environments.
- DIYPRO® Armored Communication Cable - Heavy-duty cable removes the need for exterior conduit while protecting wiring from weather exposure and pests.
- Industry-Leading Warranty Coverage - Includes a 7-year compressor warranty, 5-year parts warranty, and optional Limited Lifetime Replacement with MRCOOL Care registration.
Compatible Air Handler Combinations
(Maximum total indoor capacity: 54,000 BTU | Minimum of 2 air handlers required)
- 12K + 12K + 12K + 12K + 6K = 54K
- 18K + 12K + 9K + 9K + 6K = 54K
- 24K + 18K + 12K = 54K
- 36K + 12K + 6K = 54K
📌 Always verify total connected BTU capacity before purchasing.
Recommended Wire Size
- 6 AWG (Recommended): Safely supports 44–48A load and reduces voltage drop
- 8 AWG (Smaller): May overheat or fall out of code on longer runs
- 4 AWG (Larger): Ideal for long-distance runs and maximum electrical safety
Specifications
- Model Number: DIY-MULTI6-48HP230D-O
- Cooling Capacity: 48,000 BTU/h
- Heating Capacity: 48,000 BTU/h
- Recommended Coverage Area: 2,000–2,500 sq. ft.
- SEER2: Approx. 17.5–18.5 (configuration dependent)
- HSPF2-4: Approx. 8.5–9.0
- HSPF2-5: Approx. 6.5–7.5
- Power Supply: 208–230V, 60Hz, 1 Phase
- Minimum Circuit Ampacity: Approx. 44–48 A
- Maximum Fuse: Approx. 50 A
- Refrigerant Type: R-454B
- Refrigerant Charge: Approx. 115 oz
- Line Set Sizes: 3/8" Liquid x 5/8" Gas
- Net Dimensions (W × D × H): Approx. 42.91" × 19.88" × 37.01"
- Net Weight: Approx. 175–185 lbs
Frequently Asked Questions
How many indoor units can this mini split condenser support?
This condenser supports up to six indoor air handlers, with a minimum of two required for operation.
What refrigerant does this system use?
It comes pre-charged with R-454B refrigerant, which has a lower global warming potential than R-410A.
Is professional HVAC installation required?
No. When paired with MRCOOL DIY® Quick Connect® line sets, installation is designed for DIY homeowners.
What wire size is recommended for installation?
6 AWG copper wire is recommended to safely support the system’s amperage and reduce voltage drop.
