DIYS-24-HP-230A11-O
MRCOOL DIY® Select 24K BTU Single Zone Mini Split Heat Pump 230V
$1,899.00 - $2,199.00
✅ Authorized Dealer for MRCOOL®
Availability: In Stock. Secure Your Order TODAY!
📦
SKU: DIYS-24-HP-230A11-O
- ❄️ Free Shipping & No Tax!
- 🚚 Ships in 1-5 Business Days
- 🛠️ Easy DIY Install — No Special Tools Required
- ⚡ Energy Star® Efficient Heating & Cooling
Have Questions?
Chat, Call, or Text a Specialist
Found a better price? We will match or beat it! 1-844-945-3625
- Description
- Best Price Guarantee!
- Why Buy From Us
Description
Maximized Comfort for Expansive Spaces Without the Contractor Fees
When you need to heat and cool a massive room, professional HVAC quotes can easily run into the thousands. The MRCOOL DIY Select 24K 230V Mini Split changes the game by delivering ultra-powerful, commercial-grade climate control that you can install entirely on your own. Capable of regulating temperatures in expansive areas up to 1,050 square feet, this high-performance system completely eliminates the need for expensive technician labor, vacuum pumps, or specialized refrigerant training.
Whether you are finishing an oversized basement, conditioning a large commercial workspace, or maintaining the perfect temperature in a great room, this heavy-duty 24000 BTU DIY Mini Split Heat Pump provides unparalleled 230V performance, smart home capabilities, and the eco-friendly benefits of R-454B refrigerant.
Customize Your Space: Classic White or Striking Black
Because this unit is designed for larger, highly trafficked areas of your home or business, aesthetics matter. The DIY Select 24K offers two distinct indoor air handler finishes, allowing you to seamlessly integrate the system into your current decor. Keep in mind, both units house the exact same high-powered hardware, only the exterior color is different:

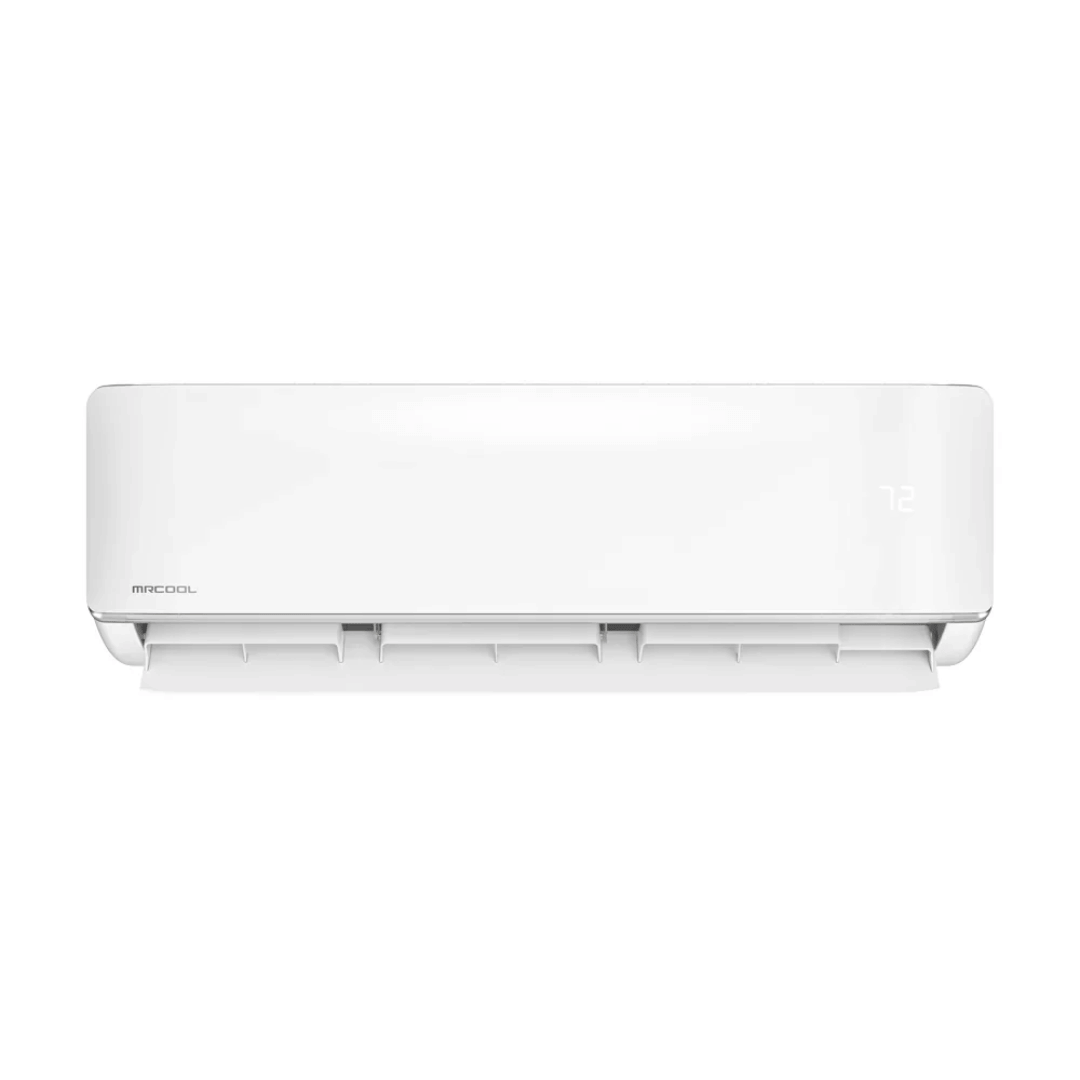

Classic White Air Handler
The industry standard for a clean, unassuming appearance. It blends effortlessly into traditional living spaces, large bedrooms, and rooms with lightly colored walls or ceilings.

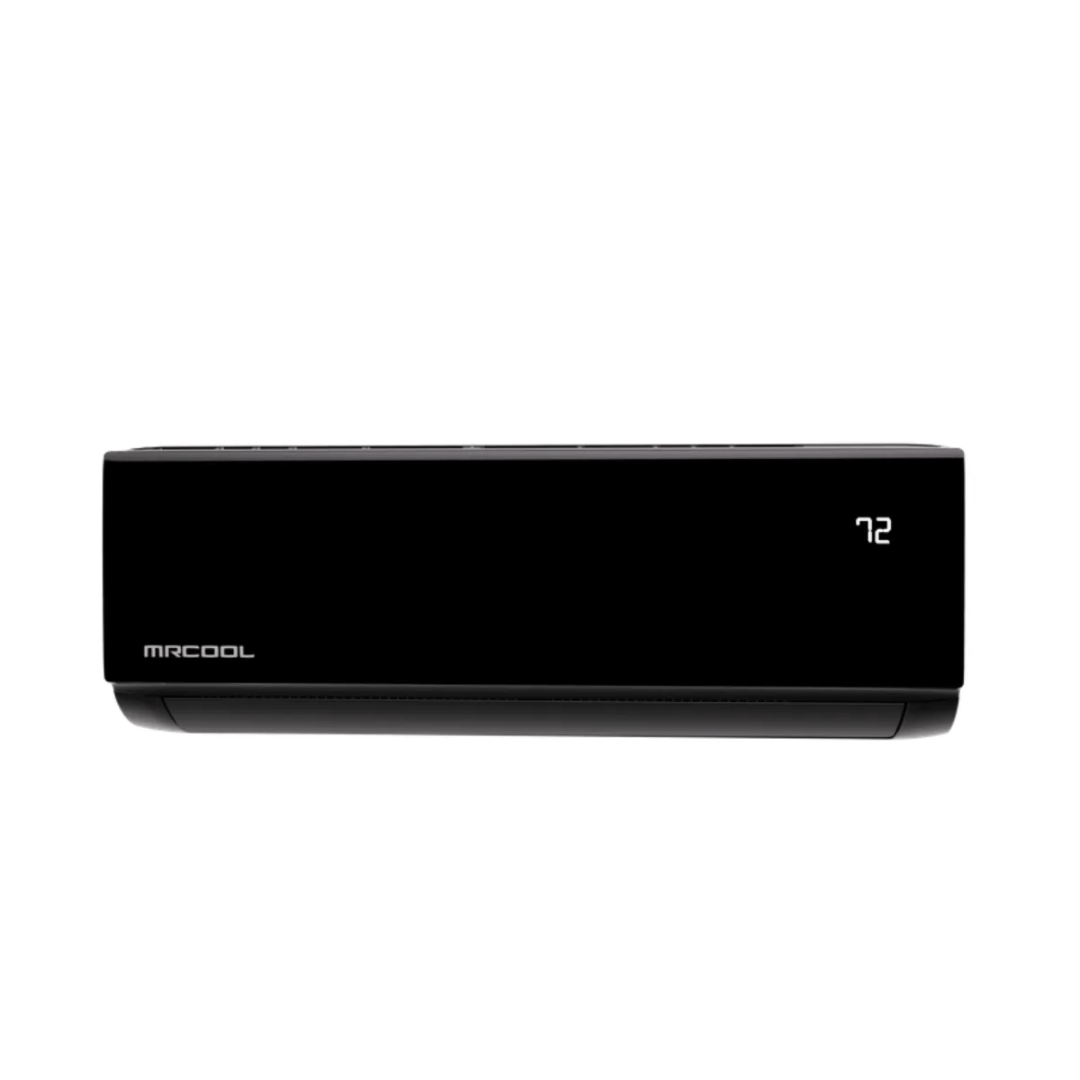

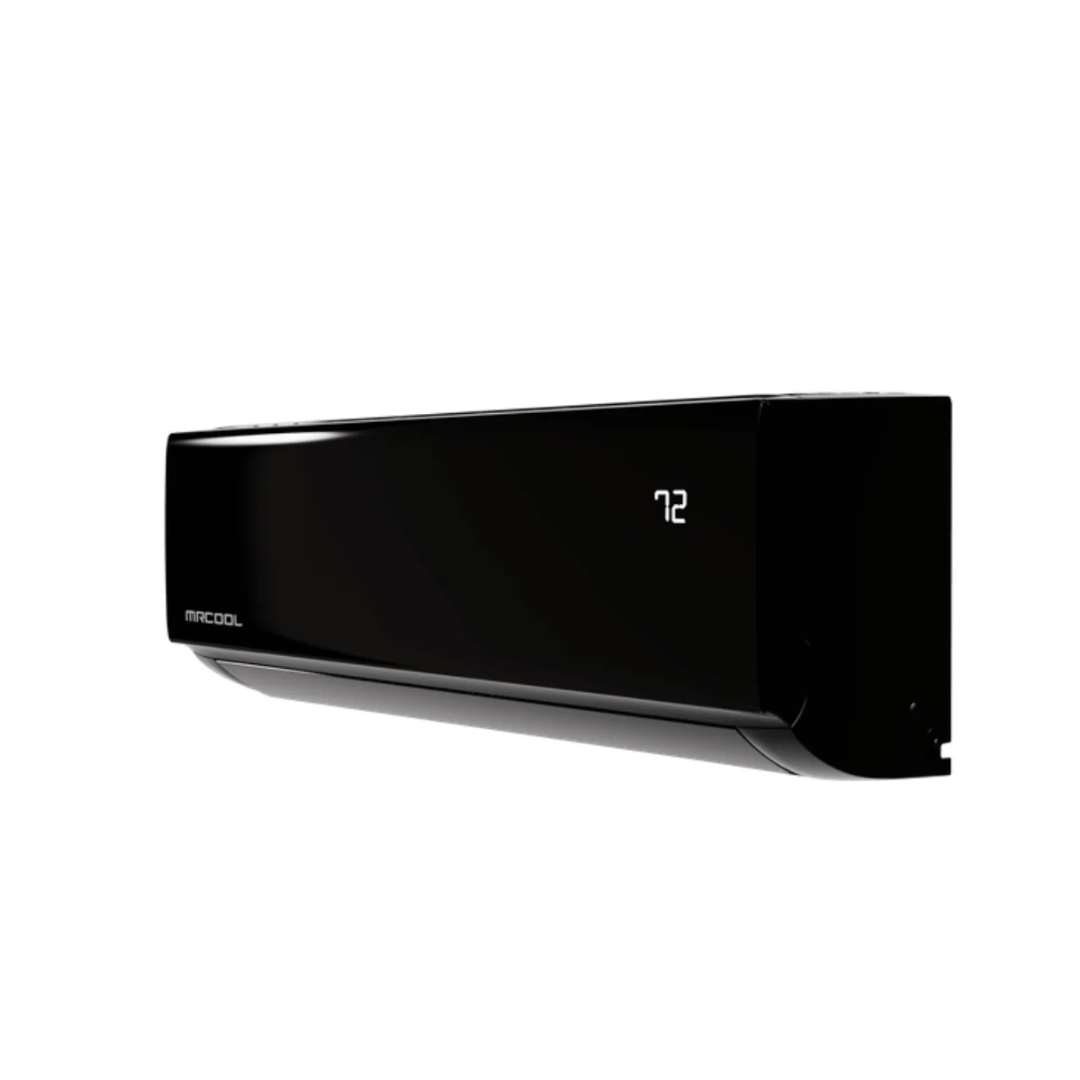

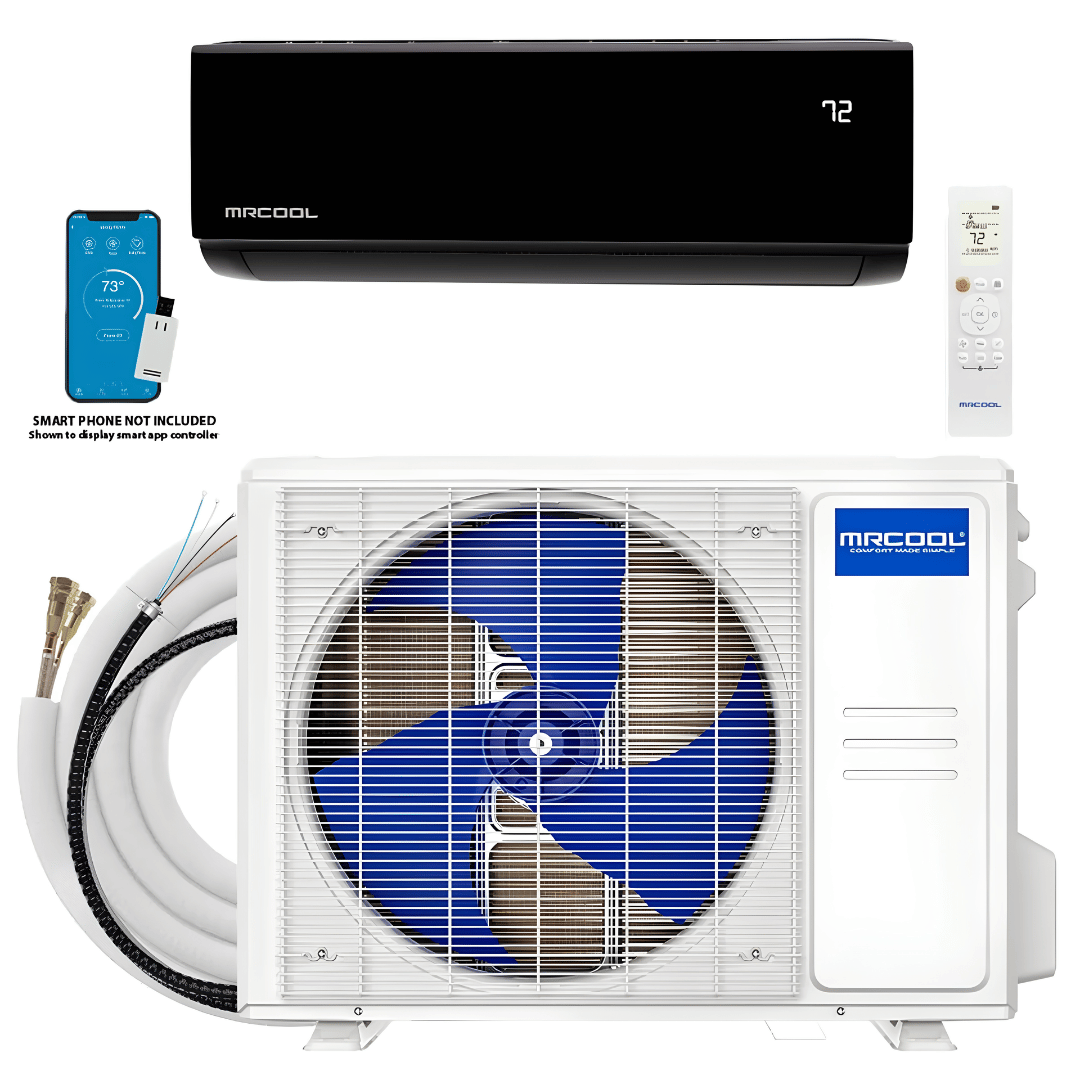

Modern Black Air Handler
A bold, architectural choice that makes a statement. The black casing looks incredibly sleek in modern, industrial, or design-focused spaces like home theaters, commercial garages, and modern man caves.

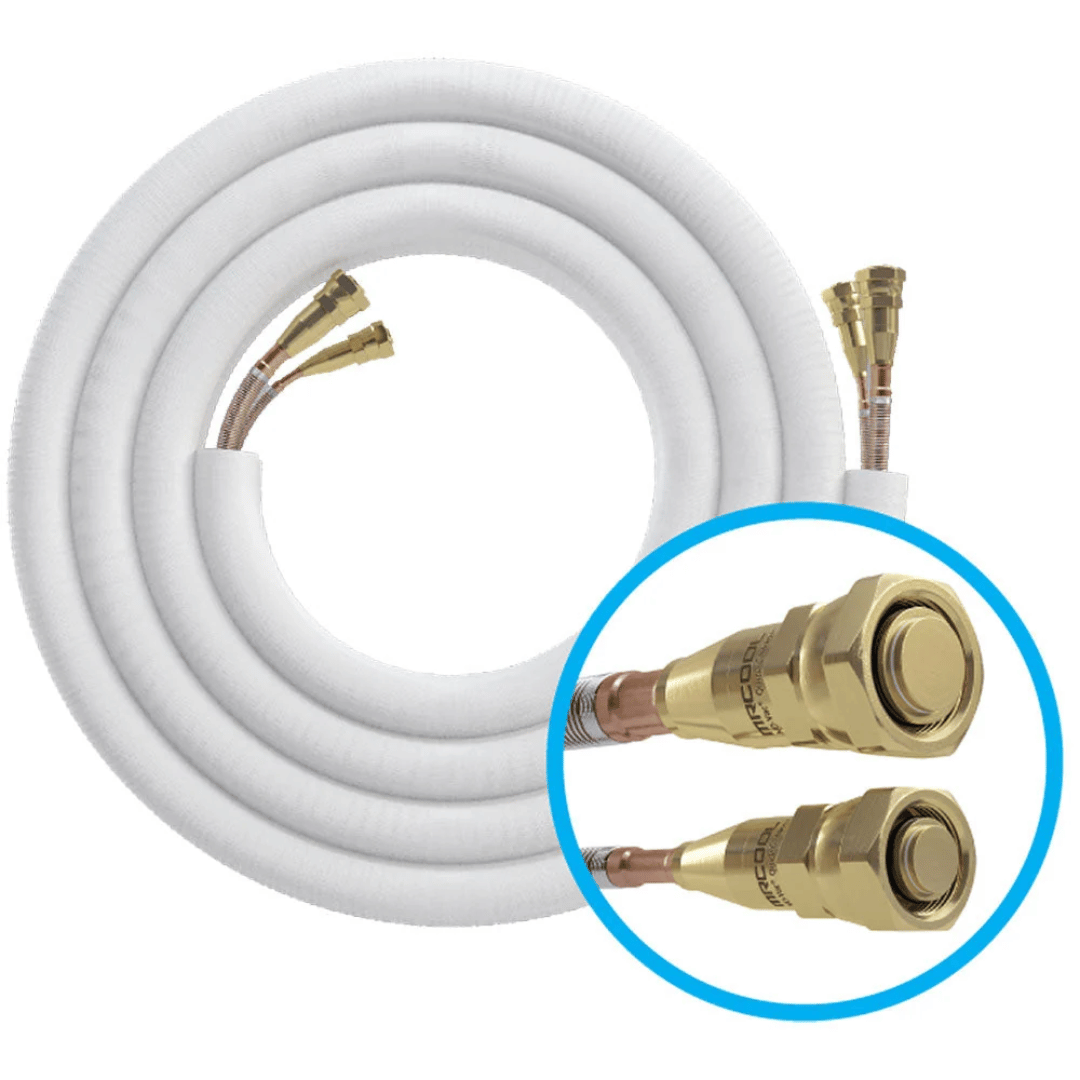

The Secret to True DIY: The Quick Connect® System
What makes this massive 24,000 BTU system manageable for the average DIYer? The patented, pre-charged Quick Connect® line set.

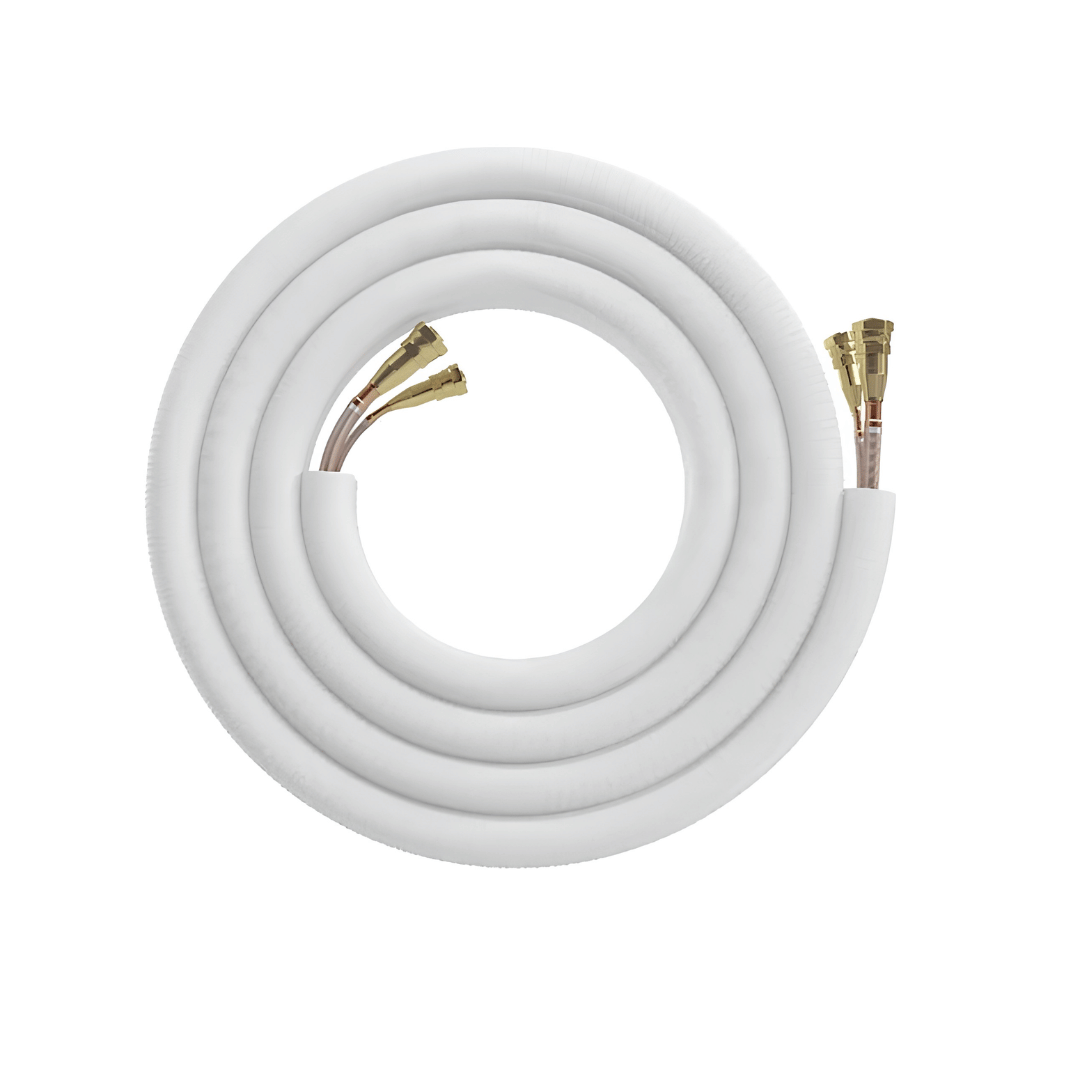

While other "DIY" systems still require you to hire a pro to vacuum the lines and release the refrigerant, the DIY Select series is completely self-contained. The included 11.5-foot line set comes pre-sealed with refrigerant. All you have to do is mount your units, run the line set, and tighten the connections with basic hand tools. Furthermore, the tailored 11.5-foot length prevents the messy look of excess coiled tubing on the exterior of your building, resulting in a clean, professional-grade finish.
Key Features & Benefits
- 100% DIY Installation: No HVAC technician or special tools are required, thanks to the pre-charged 11.5 ft Quick Connect® lines.
- Massive Coverage Area: The high-capacity 24,000 BTU system effectively heats and cools large, open spaces up to 1,050 sq. ft.
- Heavy-Duty 230V Power: Operates on a dedicated 230V electrical circuit, providing the sustained power needed for large-scale climate control.
- Cost-Saving Efficiency: Delivers an impressive 16.5 SEER2 for cooling and 8.3 HSPF2-4 for heating, keeping your utility bills manageable.
- Eco-Conscious Refrigerant: Pre-loaded with R-454B, a modern refrigerant designed for superior performance and reduced environmental impact.
- Total Smart Integration: Control your room's temperature from your smartphone using the free MRCOOL® Comfort App, or use hands-free voice commands via Amazon Alexa and Google Assistant.
- Unobtrusive Operation: Despite its massive power, the indoor air handler features multiple fan speeds, operating as quietly as 21.5 dB(A) on low.

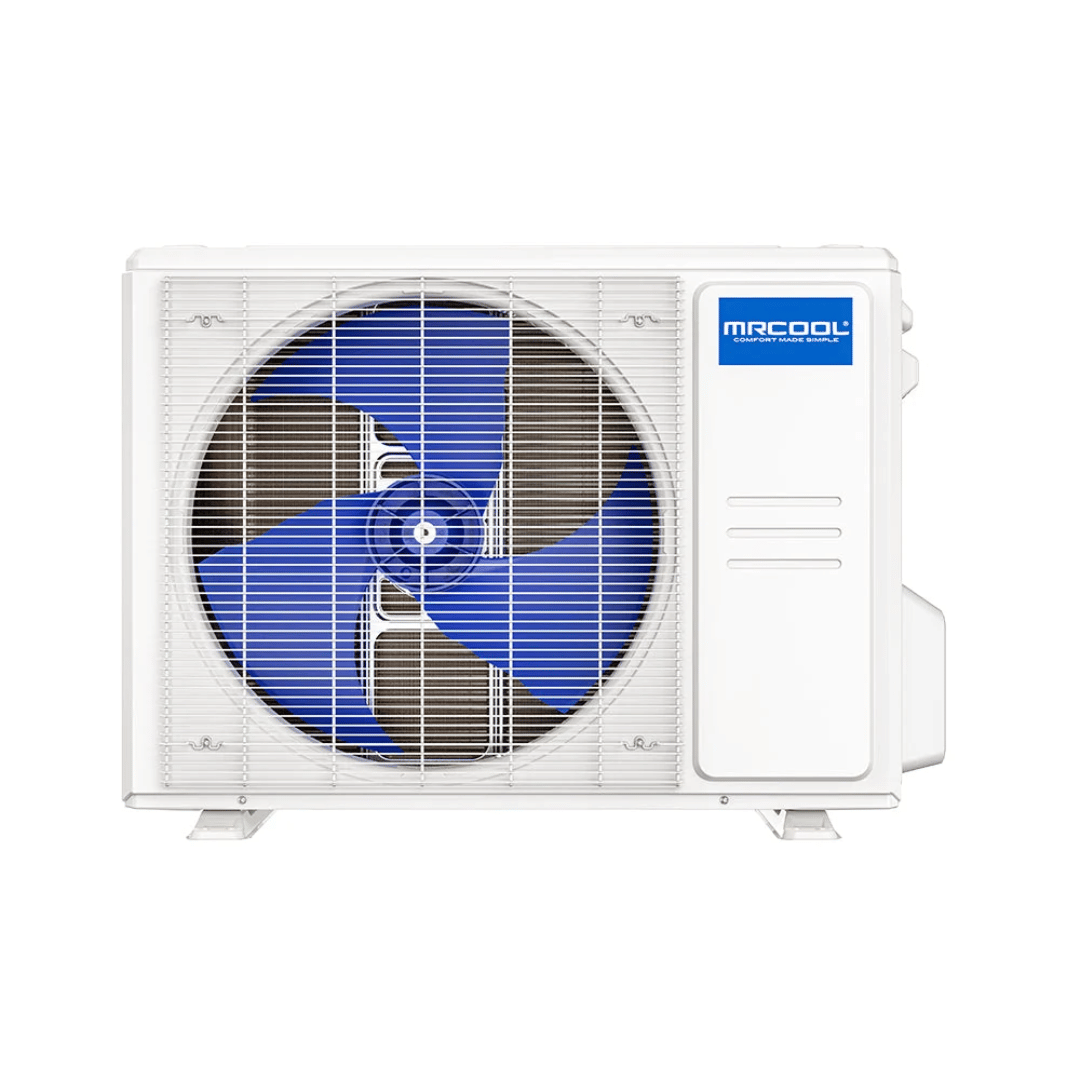

- Weather-Resistant Build: The outdoor condenser features a Gold Fin® coating to protect against rust, corrosion, and harsh environmental elements.
Technical Specifications
- System Type: Single Zone Mini Split Heat Pump
- Cooling / Heating Capacity: 23,000 BTU / 23,000 BTU
- Coverage Area: Up to 1,050 sq. ft.
- Power Supply: 208-230V, 60Hz, 1 Phase
- Efficiency: 16.5 SEER2 / 8.3 HSPF2-4
- Refrigerant: R-454B
- Indoor Noise Level: 48 / 43 / 38 / 32 / 21.5 dB(A)
- Outdoor Noise Level: 61 dB(A)
- Indoor Unit Dimensions: 42.6" W × 9.21" D × 13.27" H
- Outdoor Unit Dimensions: 35.04" W × 13.46" D × 26.5" H

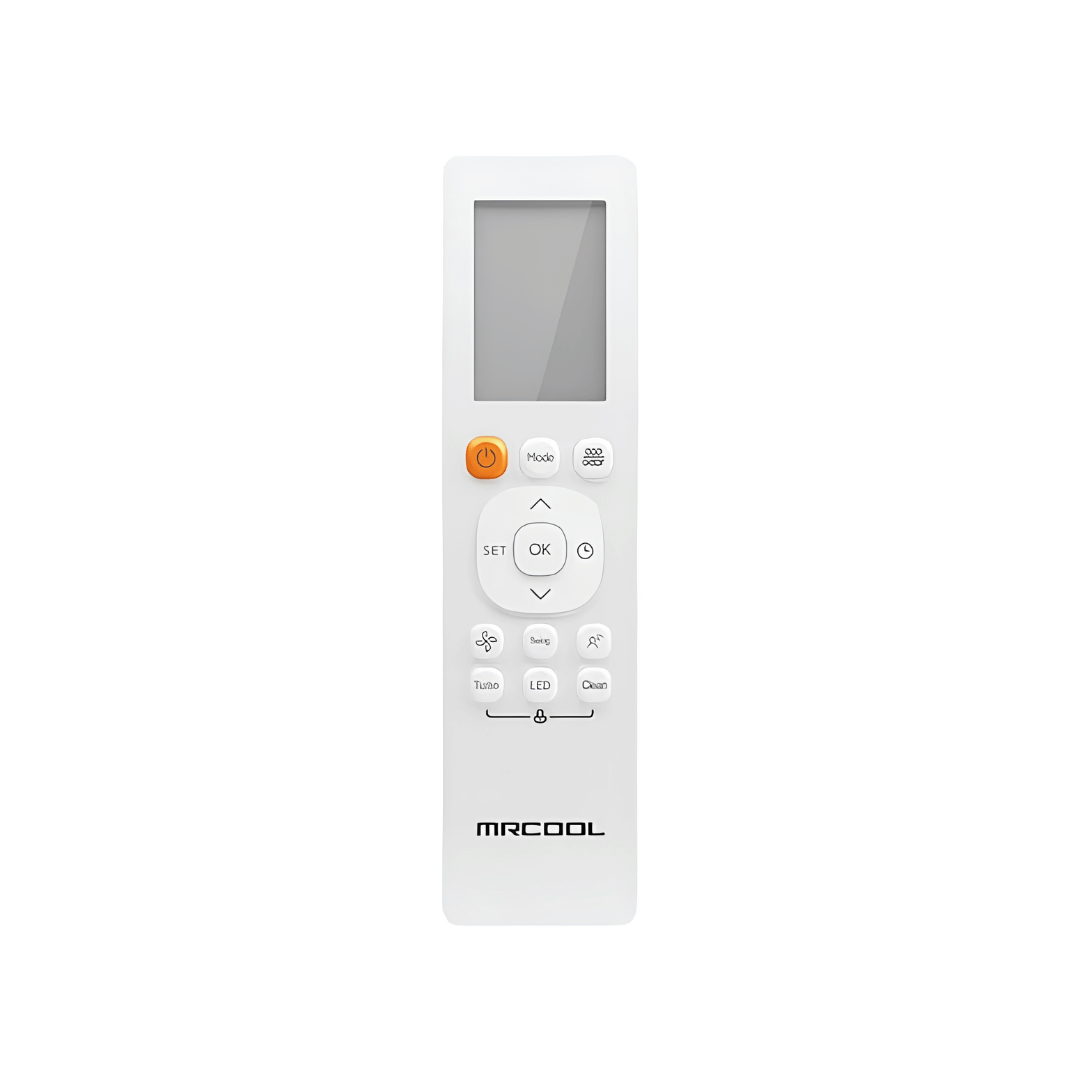

- Warranty: 2-Year Compressor / 1-Year Parts / 1-Year Remote
Electrical Note: Always size your electrical circuit based on the outdoor condenser specifications. This unit requires a 230V setup. Minimum Circuit Ampacity: Outdoor 18A / Indoor 3A. Max Breaker: Outdoor 25A / Indoor 15A. Please consult a licensed electrician if you are unsure about high-voltage wiring and follow all local codes.
Have Questions? Chat, Call, or Text a Specialist Found a better price? We'll match or beat it! 1-844-945-3625
Frequently Asked Questions
How large of a room can the 24K MRCOOL system heat and cool?
This is one of the largest single-zone DIY systems available. The 24,000 BTU capacity provides enough power to comfortably regulate temperatures in massive spaces up to 1,050 square feet. It is perfect for large open-concept basements, workshops, and great rooms.
Do I need a special electrical outlet for the 24K model?
Yes. Because of its massive heating and cooling capacity, the 24K unit requires a dedicated 230V electrical circuit, unlike the smaller 9K or 12K models that run on standard 115V. You will need the appropriate 230V breaker installed in your electrical panel.
Is there any performance difference between the Black and White versions?
No, there is absolutely no difference in performance. Both color options feature the exact same 24,000 BTU hardware, 16.5 SEER2 efficiency rating, and internal components. You are only choosing the exterior color of the indoor wall unit.
Can I still install this large system by myself?
Yes! Even though this is a commercial-sized unit, it belongs to the MRCOOL DIY Select series. It includes the exact same foolproof 11.5-foot pre-charged Quick Connect® line set as the smaller models, meaning you do not need an HVAC technician to handle the refrigerant or vacuum the lines.
