Rich Solar - 100 Watt 12V Portable Solar Panel Briefcase

This Product ships in 2-5 business days.


100 Watt Portable Solar Panel Briefcase by Rich Solar

Charge rich solar portable power stations and solar generators.

Product Overview

FEATURES

  • High efficient 100-watt monocrystalline solar panel

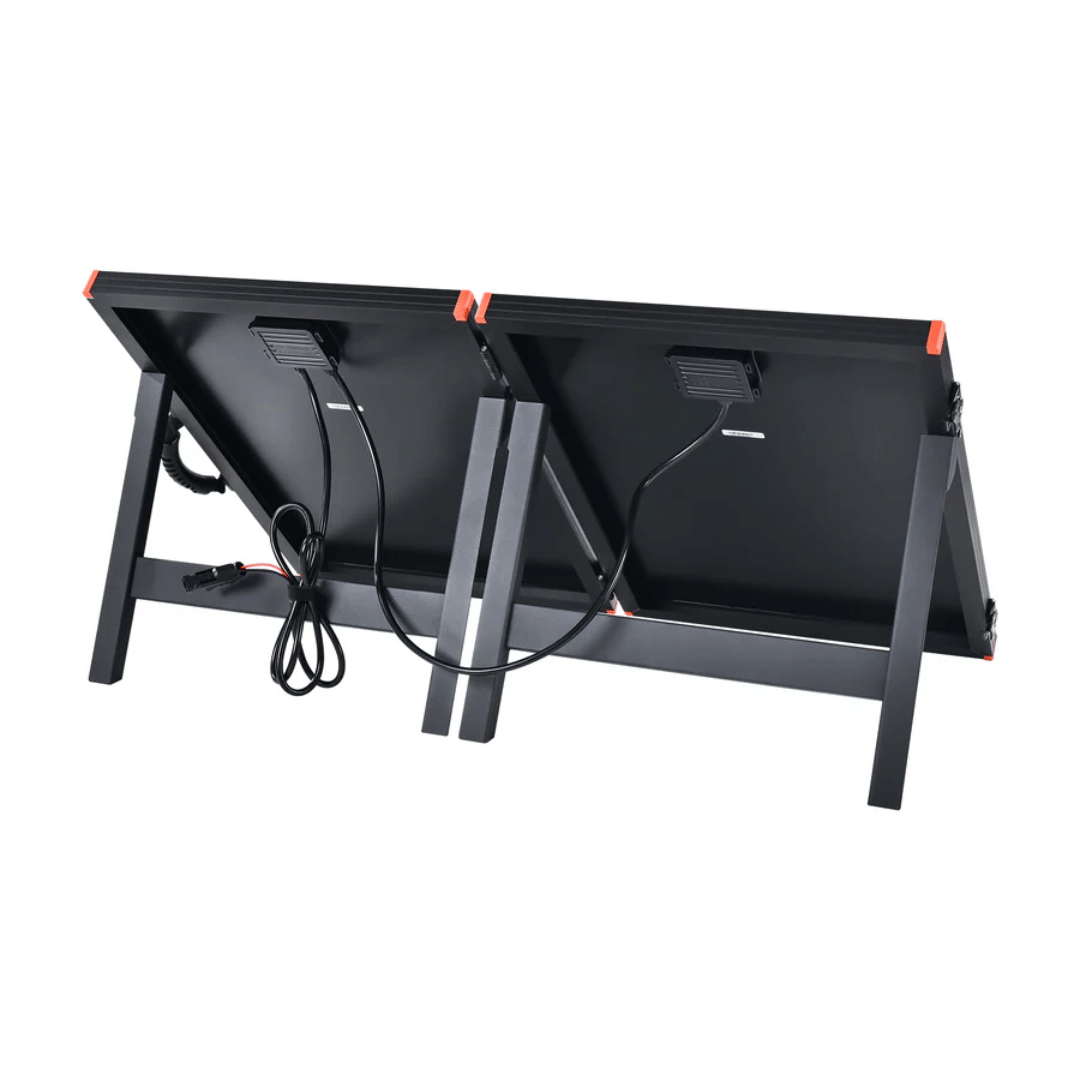

  • Kickstand for better angle placement
  • Corner protection
  • Strong tempered glass and aluminum frame

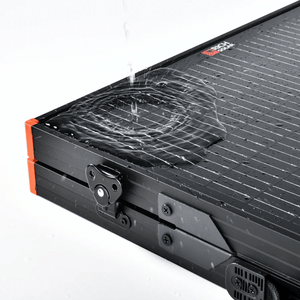

  • Fully weatherproof
  • Monocrystalline solar cells

IDEAL FOR

  • Solar generators
  • Portable power stations
  • Emergency backup or remote power

TECH SPECS

  • Maximum Power(Pmax): 100W
  • Maximum Power Voltage(Vmp): 18.4V
  • Maximum Power Current(Imp): 5.43A
  • Open Circuit Voltage(Voc): 22.6V
  • Short Circuit Current(Isc): 5.72A
  • Maximum System Voltage(Vmax): 1000V DC
  • Weight: 21.5 lbs

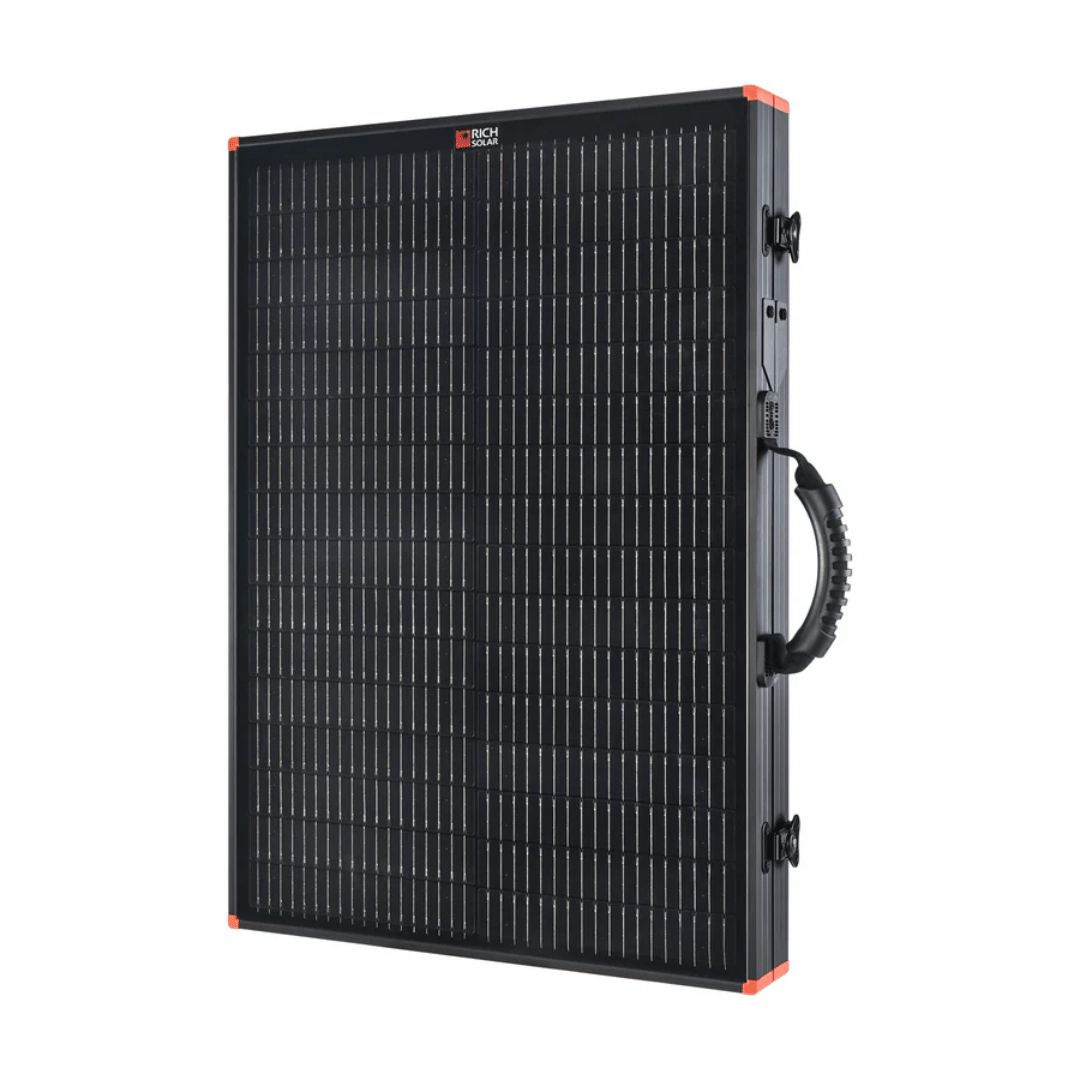

  • Dimensions(folded): 27.0 x 22. x 2.8 in
  • Dimensions(unfolded): 43.3 x 27.0 x 1.4 in



Which Rich Solar Panel Suits Your Needs Best?

When it comes to harnessing the power of the sun, choosing the correct solar panel type for your set-up is certainly crucial for optimal performance and efficiency.

Rich Solar, one of the industry's leading provider of high-quality solar panels, manufactures a great range of solar panel options to align with your requirements. A superior solar generator power set-up requires an equally superior solar panel array. Rich Solar offers high quality solar panels in three distinct types that are designed to complement any solar generator or portable power station.

The Flex, Rigid, and the Portable solar panels.

As you begin your journey to off-grid living or start assembling your emergency power source, We understand how having three different options may be overwhelming. This is why we have put together this guide which will help you through selecting the best solar panels that would match your needs and your lifestyle.

Gain valuable information about the differences in specifications and the advantages of each solar panel type offered by Rich Solar. You'll easily understand what makes Rich Solar a premier choice for your solar panel needs.

FLEXIBLE SOLAR PANELS BY RICH SOLAR

For those seeking flexibility and versatility in their solar setup, Rich Solar's Flex Solar Panels offer a compelling solution. These panels are lightweight, thin, and highly flexible, allowing for easy installation on curved or uneven surfaces. Flex Panels are particularly suitable for applications where rigid panels are impractical or when portability is a key factor, such as RVs, boats, or camping setups. With Rich Solar's Flex Panels, you can enjoy the benefits of solar power even in unconventional settings.



100W FLEX PANELS

FLEX PANELS

  • MONOCRYSTALLINE
  • Lightweight: 4.8 lb / 2.2 kg
  • Thickness: 1/8 in / 3 mm
  • Weight: 4.8 lb
  • Dimensions: 41.1 x 27.2 x 0.11 in.
  • Flexible and Portable
  • Lighter and More Portable than Rigid.

Features

  • Flexing up to 30 degrees
  • Stainless steel grommets in the panel, easy and low-cost installation
  • 25 year limited power output warranty
  • Ideal for Trailers, long-haul, and heavy-duty trucks, Utility service vehicles, RV/Marine, Curved roofs, Outdoors, Backup power, Built-in Components.

Specifications

  • Maximum Power(Pmax): 100W
  • Maximum Power Voltage(Vmp): 18.7V
  • Maximum Power Current(Imp): 5.35A
  • Open Circuit Voltage(Voc): 22.3V
  • Short Circuit Current(Isc): 5.70A
  • Maximum System Voltage(Vmax): 600VDC
  • Temperature Range: -40°C ~ 85°C
  • Maximum Series Fuse Rating(A): 15A.

Panel Rating

  • Panel leads (pair): 24 inches each
  • IP67 Rated waterproof junction box
  • IP67 Rated waterproof MC4 connectors
  • Bypass diodes built-in the junction box.

RIGID SOLAR PANELS BY RICH SOLAR

Rich Solar's Rigid Solar Panels are designed to provide robust and reliable power generation. These panels are known for their durability and excellent performance in diverse environmental conditions. Rigid panels are typically mounted on fixed structures such as rooftops or ground-mounted arrays, making them ideal for residential or commercial installations. With Rich Solar's Rigid Panels, you can expect consistent energy production and long-term reliability.

100W RIGID PANELS

RIGID SOLAR PANELS

  • MONOCRYSTALLINE
  • Weight: 13 lbs
  • Dimensions: 39.2 x 21.25 x 1.4 in
  • Durability and Longevity
  • Certified to withstand challenging environmental conditions.
  • Rigid panels on the stand are much more wind resistant than the Flex.

Features

  • Built with strong tempered glass and aluminum frame.
  • Excellent low light performance on cloudy days, mornings and evenings. Easy installation and handling for various applications.
  • Pre-drilled holes compatible with ground mounts, Z-brackets, pole mounts and tilt mounts.
  • Compatible with on-grid and off-grid inverters.

Specifications

  • Maximum Power(Pmax): 100W
  • Maximum Power Voltage(Vmp): 18.15V
  • Maximum Power Current(Imp): 5.51A
  • Open Circuit Voltage(Voc): 21.4V
  • 12V off-grid solar panel.
  • IP 65 or IP 67 rated.

Panel Rating

  • Panel Leads (Pair): 12AWG, 3FT each
  • IP65 Rated waterproof junction box
  • IP67 Rated waterproof MC4 connectors.

200W RIGID PANELS

RIGID SOLAR PANELS

  • MONOCRYSTALLINE
  • Weight: 26.5 lbs
  • Thickness: 45/32 in / 36 mm
  • Dimensions: 58.7 x 26.8 x 1.4 in.
  • Durability and Longevity
  • Certified to withstand challenging environmental conditions.
  • Rigid panels on the stand are much more wind resistant than the Flex.

Features

  • 5 buss bar solar cell configuration
  • Mono PERC Technology
  • Lightweight anodized aluminum frame
  • High Transmission, AR (anti-reflective) Coated Tempered Glass
  • Plug and play junction box
  • Industry standard quick connect cables work in series or in parallel
  • Excellent low light performance on cloudy days, mornings and evenings

Specifications

  • Maximum Power(Pmax): 200W
  • Maximum Power Voltage(Vmp): 20.4V
  • Maximum Power Current(Imp): 9.80A
  • Open Circuit Voltage(Voc): 24.3V
  • Short Circuit Current(Isc): 10.2A
  • Maximum System Voltage(Vmax): 1000VDC
  • Temperature Range: -40°C ~ 90°C
  • Max Series Fuse Rating: 15A

Panel Rating

  • RICH SOLAR 200 watt monocrystalline solar panel
  • Panel leads (pair): 3 feet each
  • IP65 rated waterproof junction box
  • IP67 rated waterproof solar connectors
  • Bypass diodes built-in the junction box

BRIEFCASE SOLAR PANELS BY RICH SOLAR

Rich Solar's Portable Solar Panels are designed for on-the-go power generation. These compact and foldable panels are perfect for outdoor enthusiasts or emergency backup situations. Portable panels are lightweight, easy to transport, and often come with built-in features like USB ports for convenient charging of devices. Whether you are hiking, camping, or facing a power outage, Rich Solar's Portable Panels provide a convenient and reliable source of energy.

100W BRIEFCASE SOLAR PANELS

BRIEFCASE SOLAR PANELS

  • MONOCRYSTALLINE
  • Weight: 21.5 / 9.7 kg
  • Dimensions(folded): 27.0 x 22.0 x 2.8 in
  • Dimensions(unfolded): 43.3 x 27.0 x 1.4 in
  • Very easy to carry around and convenient built-in stands.

Features

  • High efficient 100-watt monocrystalline solar panel
  • Kickstand for better angle placement
  • Corner protection
  • Strong tempered glass and aluminum frame.
  • Fully weatherproof

Specifications

  • Maximum Power(Pmax): 100W
  • Maximum Power Voltage(Vmp): 18.4V
  • Maximum Power Current(Imp): 5.43A
  • Open Circuit Voltage(Voc): 22.6V
  • Short Circuit Current(Isc): 5.72A
  • Maximum System Voltage(Vmax): 1000V DC

Ideal For

  • Solar generators
  • Portable power stations
  • Emergency backup or remote power

200W BRIEFCASE SOLAR PANELS

BRIEFCASE SOLAR PANELS

  • MONOCRYSTALLINE
  • Weight: 33 lbs
  • Dimensions(folded): 27 x 31 x 3 in
  • Dimensions(unfolded): 54 x 31 x 1.5 in
  • Very easy to carry around and convenient built-in stands.

Features

  • High efficient 200-watt monocrystalline solar panel
  • Kickstand for better angle placement
  • Corner protection
  • Strong tempered glass and aluminum frame.
  • Fully weatherproof

Specifications

  • Maximum Power(Pmax): 200W
  • Maximum Power Voltage (Vmp): Parallel- 18.3 V Series- 36.6 V
  • Maximum Power Current(Imp): Parallel- 10.9A  Series- 5.46 A
  • Open Circuit Voltage(Voc): Parallel- 21.8 V Series- 43.6 V
  • Short Circuit Current(Isc): Parallel- 12.76 A Series- 6.38 A
  • Maximum System Voltage(Vmax): 1000V DC

Ideal For

  • Solar generators
  • Portable power stations
  • Emergency backup or remote power

Selecting the right Rich Solar panel type is essential for maximizing the benefits of solar power in your specific situation. Whether you require the durability and performance of Rigid Panels, the flexibility and versatility of Flex Panels, or the portability and convenience of Portable Panels, Rich Solar has you covered. By assessing your energy needs, installation requirements, and usage scenarios, you can make an informed decision and select the Rich Solar panel type that best suits your solar power needs.

To explore the full range of Rich Solar panel options and learn more about their features and specifications, click here.

Empower yourself with clean and renewable energy by choosing the perfect Rich Solar panel type for your solar power journey.

1. What is the warranty on Rich Solar Panels?

Rich Solar Panels come with a 25-year limited power output warranty and a 5-year limited product warranty.

2. Are Rich Solar Panels waterproof?

Yes, Rich Solar Panels are waterproof and can withstand rain, snow, and other outdoor conditions.

3. Do Rich Solar Panels work in cloudy weather?

Yes, Rich Solar Panels can still produce energy even in cloudy weather, although their efficiency may be lower compared to sunny days.

4. How do I install Rich Solar Panels?

You can either hire a professional to install your Rich Solar Panels or install them yourself by following the installation manual provided with the panels.

5. Can I use Rich Solar Panels for my home?

Yes, Rich Solar Panels can be used for residential homes, as well as commercial and industrial buildings.

6. How long do Rich Solar Panels last?

Rich Solar Panels have a lifespan of 25 to 30 years.

7. Can I connect Rich Solar Panels to my existing electrical system?

Yes, you can connect Rich Solar Panels to your existing electrical system, but it is recommended to consult with a professional electrician.

8. What is the efficiency rating of Rich Solar Panels?

Rich Solar Panels have an efficiency rating of up to 23%, depending on the model.

9. Can I use Rich Solar Panels in off-grid applications?

Yes, Rich Solar Panels can be used in off-grid applications, such as for RVs, boats, and cabins.

10. How many solar panels do I need for my home?

The number of solar panels you need for your home depends on your energy consumption and the size of your roof. A solar professional can help you determine the exact number of panels needed.

11. What is the difference between monocrystalline and polycrystalline solar panels?

Monocrystalline solar panels are made from a single crystal of silicon, while polycrystalline solar panels are made from multiple crystals. Monocrystalline panels are generally more efficient, but also more expensive.

12. Do Rich Solar Panels come with a monitoring system?

Rich Solar Panels do not come with a monitoring system, but a monitoring system can be installed separately to track your energy production and usage.

13. How do I clean my Rich Solar Panels?

You can clean your Rich Solar Panels with a soft brush and soapy water. Avoid using abrasive materials or high-pressure washers, as they can damage the panels.

14. Can Rich Solar Panels withstand hail?

Yes, Rich Solar Panels are designed to withstand hail up to 1 inch in diameter.

15. How much do Rich Solar Panels cost?

The cost of Rich Solar Panels varies depending on the model and size. You can contact a Rich Solar dealer for a price quote.

16. What is the output voltage of Rich Solar Panels?

The output voltage of Rich Solar Panels ranges from 12V to 24V, depending on the model.

17. Can I use Rich Solar Panels for off-grid applications?

Yes, Rich Solar Panels are designed for off-grid applications and are commonly used for RVs, boats, cabins, and other remote locations where access to traditional power sources may be limited.

18. Can I connect Rich Solar Panels in parallel?

Yes, Rich Solar Panels can be connected in parallel to increase the current output. However, it is important to ensure that the panels have the same specifications and are connected properly to prevent damage to the panels or other equipment.

19. How do I clean my Rich Solar Panels?

You can clean your Rich Solar Panels using a soft cloth or sponge and a mild soap solution. It is important to avoid using abrasive materials or harsh chemicals that may damage the surface of the panels. It is also recommended to clean the panels regularly to ensure optimal performance.

20. How long do Rich Solar Panels last?

Rich Solar Panels are designed to last for 25 years or more with proper maintenance and care. They are built with high-quality materials and undergo rigorous testing to ensure durability and reliability in a range of environments.

21. Are Rich Solar Panels weather-resistant?

Yes, Rich Solar Panels are designed to withstand a range of weather conditions, including rain, snow, wind, and hail. They are built with tempered glass and a sturdy aluminum frame to protect against damage from the elements.

22. What is the warranty on Rich Solar Panels?

Rich Solar Panels come with a 25-year power output warranty and a 5-year workmanship warranty. This covers defects in materials and workmanship and ensures that the panels will perform as advertised for the duration of the warranty period.

23. What is the efficiency of Rich Solar Panels?

The efficiency of Rich Solar Panels varies depending on the model and specifications. Most panels have an efficiency rating of around 19-21%, which is above average for solar panels in the industry.

24. Can I use Rich Solar Panels to charge a battery?

Yes, Rich Solar Panels can be used to charge a battery directly or through a charge controller. This makes them a popular choice for off-grid applications where access to traditional power sources may be limited.

25. What is the weight of Rich Solar Panels?

The weight of Rich Solar Panels varies depending on the model and specifications. Most panels weigh between 15-20 pounds, which makes them lightweight and easy to install on a range of surfaces.

A Brief Overview of the U.S. Home Energy Tax Credit

Discover the financial advantages of the U.S. federal solar tax credit for homeowners considering installing a solar system in their main residence. This incentive provides a 30% discount on the current cost of a solar system. If you've set up a system in 2022, it's advisable to speak with your tax consultant to see if you're eligible for a higher credit rate.

Understanding the U.S. Federal Solar Tax Credit:

This tax credit is tailored for homeowners and applies to solar systems installed in primary homes. The credit covers a percentage of qualifying expenses, and thanks to the recent Inflation Reduction Act, the scope of the Investment Tax Credit (ITC) has broadened. Solar systems installed from 2022 to 2032 are eligible for a 30% tax credit, which will drop to 26% in 2033 and 22% in 2034. There's no cap on the amount you can claim.

What Expenses Are Eligible:

Qualifying expenses include solar photovoltaic panels, attic fan power systems (except for the fan itself), labor costs for installation and setup, balance-of-system components, and applicable sales taxes. Standalone batteries with a capacity of 3 kWh or more may also be eligible! For instance, if the solar system you initially purchase includes a single battery with a capacity of less than 3 kWh, but you also buy extra batteries during the installation process that bring the total capacity to more than 3 kWh, then the entire setup may be eligible for the tax credit.

How to Determine Your Eligibility:

To confirm your eligibility for this federal solar credit, review the guidelines set forth by the U.S. Department of Energy and consult your tax advisor.

Steps to Claim the U.S. Federal Solar Tax Credit:

  1. Verify Eligibility: Speak with your tax advisor to confirm your eligibility and to understand how to make the most of the credit.

  2. Fill Out IRS Form 5695: This form, available online, is specifically for claiming renewable energy credits. Guidelines for completing the form are provided.

  3. Apply Credits on Your 1040: Use the total credit amount from Form 5695 to lessen your tax liability on your Form 1040.

Disclaimer:

Always consult your tax expert to fully understand your eligibility for tax credits based on your unique situation. Wild Oak Trail offers this guide for educational purposes and does not assure tax credits based on the information given. This resource should not replace professional tax or financial advice and should not be the only factor in your purchasing, investment, or tax choices. Consult a tax expert for a personalized evaluation.

Additional Resources:

Free shipping on a variety of products!

As soon as your product is on its way out of the warehouse, we will email you the tracking number for your shipment.

Free Shipping on a variety of products! If the product you're interested includes free shipping, it will be indicated on the product page. Otherwise, shipping costs will be calculated based on the size of the package and your location.

No Risk Damage Policy

Easy Returns

For more information about Shipping and Returns CLICK HERE

Price Guarantee

We care about our customers and want to offer the best prices available for our top notch products.

Conditions of our 100% Price Match Guarantee:

  • The item must be purchased from us before we can match it

  • Buy one, get one free offers and Rebates are not eligible

  • The item must be in stock on the competitors website

  • The competitor must be an online store, not a retail location

  • The website can't be a discounter or auction website ( such as eBay, overstock, etc.)

  • The company must be an Authorized Retailer of the product in question

  • The Price Match Guarantee is based on the final price of the product including shipping and taxes

  1. We care about you. We don't want to just sell you something and never hear from you again. We know that in order to get return business, we need to provide not only good products, but good customer service.
  2. We're a family owned business! My wife and I run Wild Oak Trail, and when you buy from our store, you're actually making a difference to our family!
  3. We LOVE being prepared. In uncertain times, it feels really good knowing that we have backup power, food and water ready to go!
  4. We source QUALITY. We expect every one of our customers to be happy with their purchase and tell their friends and family about it!
