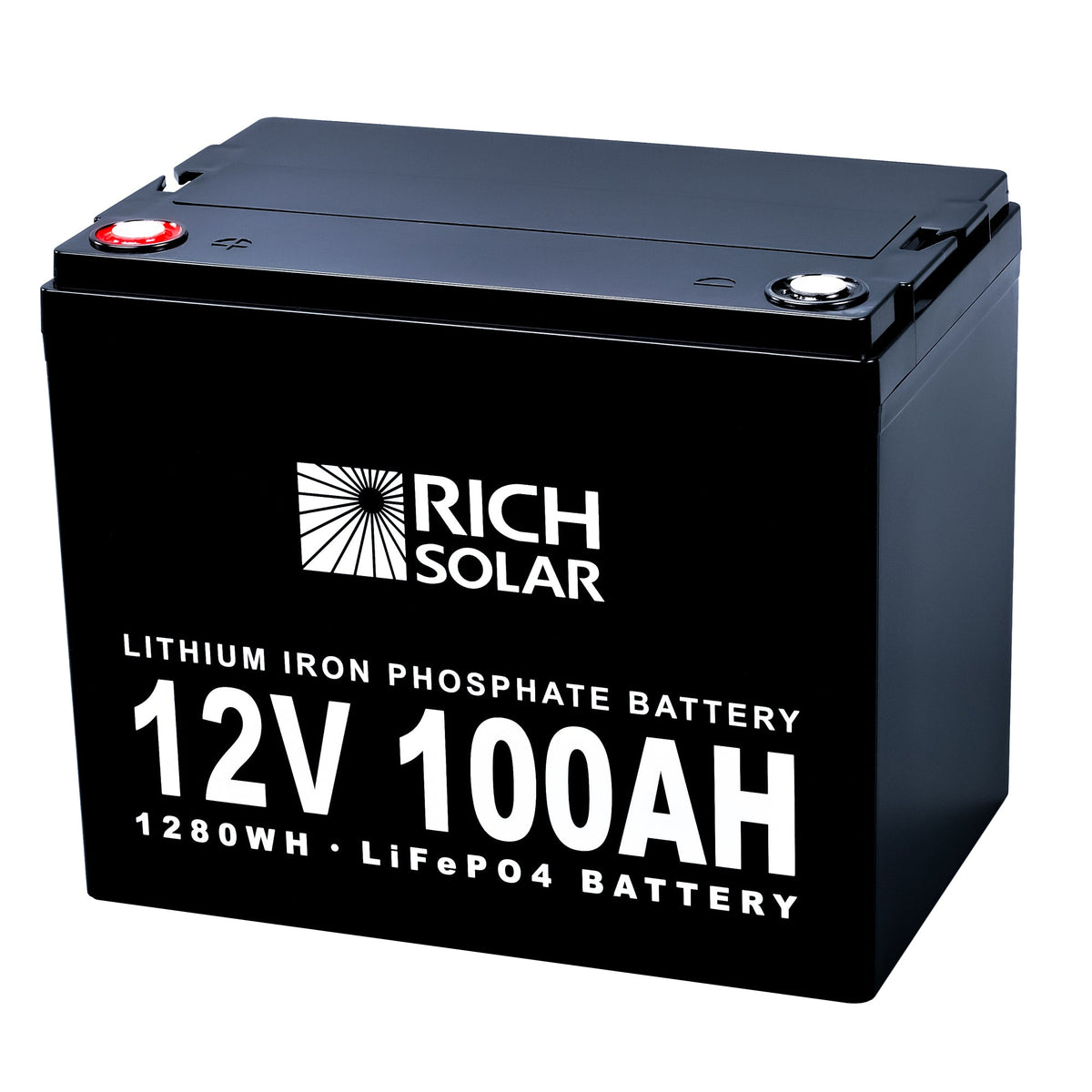

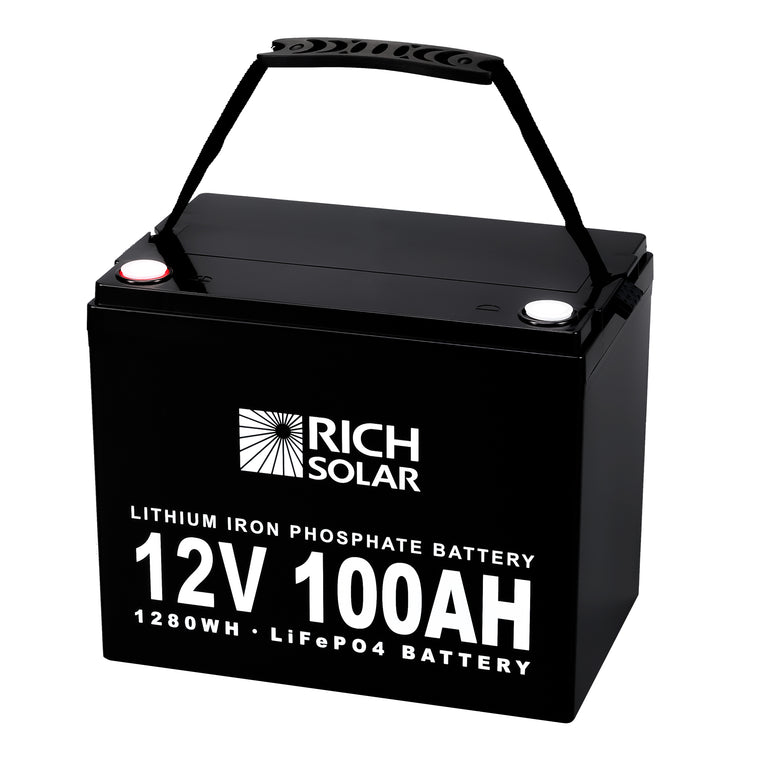

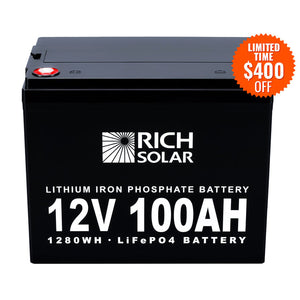

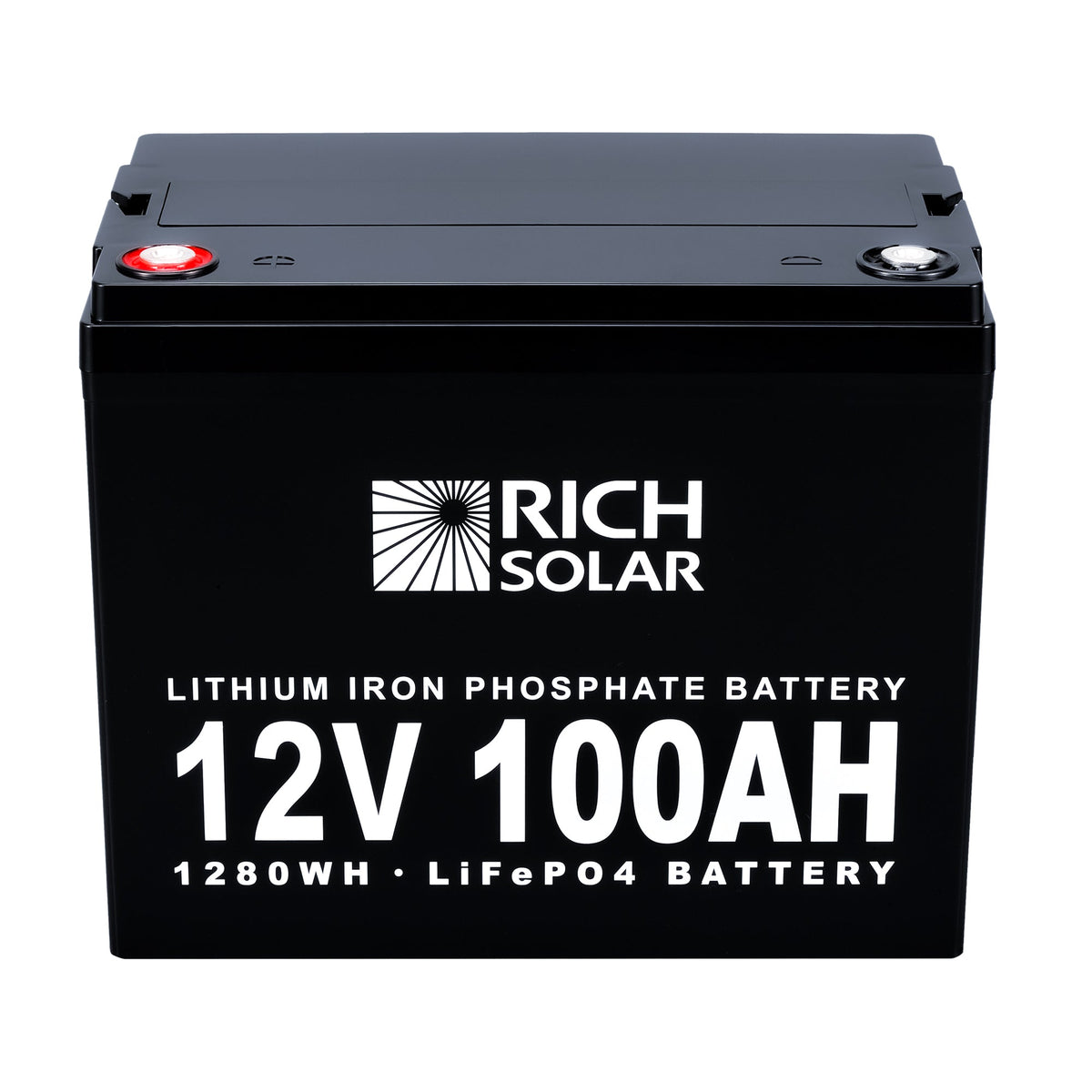

12V 100Ah LiFePO4 Lithium Iron Phosphate Battery by Rich Solar

5,000 Cycles. LiFePO4. 10+ Year Lifespan

When compared to other battery technologies, such as LiFePO4, the RICH SOLAR 12V lithium battery has a much longer cycle life capacity and is easier to maintain. The LiFePO4 technology has improved thermal and chemical stability, which improves battery safety and packs power into a small and lightweight footprint. It easily fits in the same space as your existing 12V battery and replaces lead acid, AGM or Gel battery applications, making it ideal for RVs, boats, commercial vehicles, off-grid backup power, and more. It is not intended to replace starting batteries.

12V 100Ah LiFePO4 Lithium Iron Phosphate Battery

Specifications

Electrical Specifications

• Nominal Voltage: 1000W
• Nominal Capacity(at .5C, 77°F): 100Ah
• Minimum Capacity (at .5C, 77°F): 95Ah
• Expected Cycle Life: >3000 cycles w/1C charge and discharge rate, at 77°F, 80% DOD

Operating Specifications

• Charge Method: Smart charger, constant current, constant voltage
• Operating Voltage: 12.8 V
• Capacity: 100 Ah
• Energy: 1280 Watt Hours
• Charge Voltage Range (Max 14.6V): 14.4 -14.6V
• Continuous Charge Current: 50A
• Continuous Discharge Current: 100A
• Over Voltage Shutdown: 15.6 +/-0.2V
• Discharge Cut-off Voltage: 8V =/- 0.5V
• Self Discharge (stored at 50% SOC): < 3%/month
• Waterproof: IP65

• Charge Temperature: 32° F to 140° F
• Discharge Temperature: -4° F to 140° F
• Storage Temperature: -4° F to 140° F
• BMS High Temperature Cut-off: 149°F
• BMS Low Temperature Cut-off: 32°F

Physical Specifications

• Battery Dimensions: 12.8″L x 6.6″W x 8.5″H
• Weight: 21.8 lb
• Group Size: 31
• Battery post size: 5/16″

BMS Operation

Over Charge Protection

• Over charge detection voltage: 3.9 +/- 0.05V
• Over charge detection delay time: 0.96 – 1.4s
• Over charge release voltage: 3.80 +/-0.05V
• Maximum charge voltage: 3.65 +/-0.05V

Over Discharge Protection

• Over discharge detection voltage: 2.0V +/- 0.05V
• Over discharge detection delay time: 115-173ms
• Over discharge release voltage: 2.3V +/- 0.10V
• Over Current Protection Over current detection delay time: 9 +/- 2ms
• Over current release condition: Cut load

Polarity Reverse Protection: Yes
Short Circuit Protection: Yes

Warranty

3 Year Manufacturer Defect
