20 AMP MPPT Solar Charge Controller by Rich Solar

PRODUCT OVERVIEW

Features

  • Automatically detects 12V or 24V DC system voltages
  • Compatible with various deep cycle battery options: Sealed, Gel, Flooded, and Lithium
  • Innovative MPPT technology with high tracking efficiency of up to 99% and peak conversion efficiency of 98%
  • Electronic protection against reverse polarity, overcharging, over-discharging, overload, short-circuiting, and reverse current

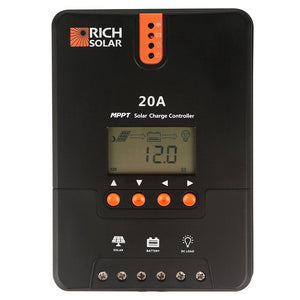

  • LCD screen and multiple LED indicators for displaying system operation information, customizable parameters, and error codes
  • Features diverse load control; also capable of charging over-discharged lithium batteries

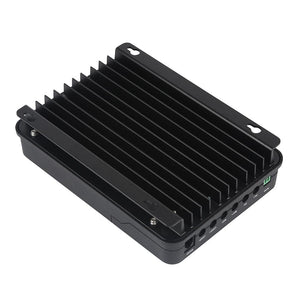

  • Die-cast aluminum design allows for efficient heat dissipation
  • RS232 port to communicate with BT-1 Bluetooth module.

Specifications

  • Nominal System Voltage: 12V/24V Auto Recognition
  • Rated Battery Current: 20A
  • Rated Load Current: 20A
  • Max. PV Input Short Current: 25A
  • Max. Battery Voltage: 32V
  • Max Solar Input Voltage: 100 VDC
  • Mounting Oval: 0.30 x 0.18 in
  • Net Weight: 3.08 lb
  • Discharge Circuit Voltage Drop: ≤ 0.15V
  • Overall Dimension: 8.27 x 5.94 x 2.34 in

Rich Solar - 20 AMP MPPT Solar Charge Controller User Manual
