Rich Solar - 30 AMP Solar Charge Controller Flush Mount

This Product ships in 2-5 business days.

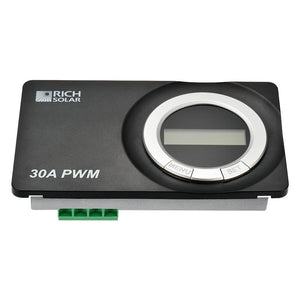

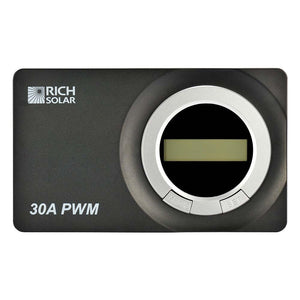

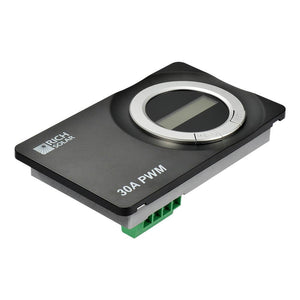

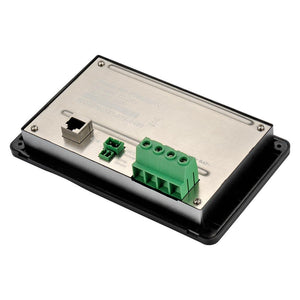

30 AMP Solar Charge Controller Flush Mount by Rich Solar



    Electrical Parameters

    Nominal System Voltage: 12/24VDC or AutoBattery Input Voltage Range: 8V~32VRated Charge Current: 30AMax. PV Short Circuit Current: 30AMax. PV Open Circuit Voltage: 50VBattery Type: Sealed(default)/Gel/Flooded/LithiumSelf-consumption: ≤4.2mA/12V;≤2.6mA/24VTemperature Compensation Coefficient: -3mV/°C/2V(Default)Charge Circuit Voltage Drop: 0.21V

    Environmental Parameters

    Storage Temperature Range: -30°C~+80°CWorking Environment Temperature: -20°C~+55°C(100% input and output)Relative Humidity: ≤95%, N.C.Enclosure: IP30Grounding: Common negativeAltitude: 5000mPollution Degree: PD2

    Mechanical Parameters

    Dimension(L×W×H): 178.5×105.5×48.3mmMounting Dimension: 166.5×93.5mmMounting Hole Size: Φ5mmTerminal: 16mm2/6AWGRecommended Cable: 6mm2/10AWGNet Weight: 0.31kg


    • Flush mounted and embedded installation design
    • High quality and low failure rate components (ST/IR) to ensure the product lifetime
    • 3-Stage Intelligent PWM charging: Bulk, Boost/Equalize, and Float
    • Battery Type: Sealed, Gel, Flooded, Lithium
    • Real-time energy statistics feature
    • Battery temperature compensation feature
    • Digital LCD monitor for informative display of operational parameters and fault messages
    • Voltage drop and temperature compensation sampling interface design
    • RS485 communication port with Modbus protocol, and short circuit protection for 5V/200mA power supply
    • Multiple communication peripherals
    • Rated charging current at working temperature without de-rating
    • Extensive electronic protections
    • Monitor and set the parameters via PC software or APP
