Rich Solar - Alpha 5 Server Lithium Iron Phosphate Battery
$1,599.99$2,999.99
Authorized Dealer
Official Manufacturer Warranty
- Availability: Out Of Stock
- SKU: RS-B48100SR
- Free Shipping within the lower 48 states!
- Engineered in the USA using high-efficiency solar technology.
- 25-Year Power Output Warranty on panels and 5-Year on electronics.
- Trusted by thousands of off-grid homeowners and RV travelers.
Have Questions?
Chat, Call, or Text a Specialist
Found a better price? We will match or beat it! 1-844-945-3625
- Description
- Best Price Guarantee!
- Why Buy From Us
Description

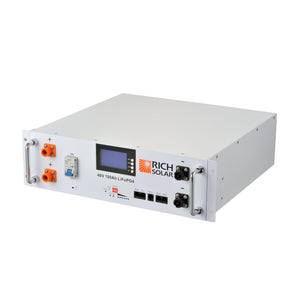

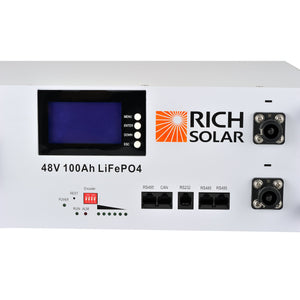

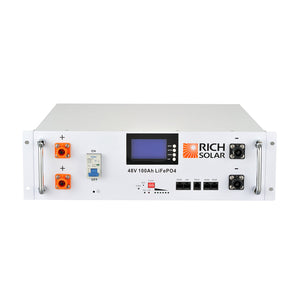

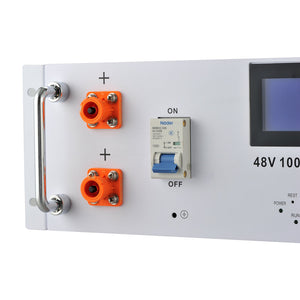

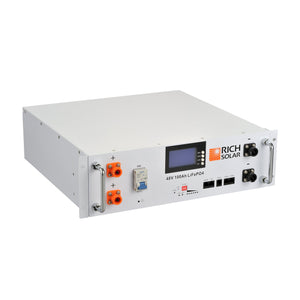

Alpha 5 Server Lithium Iron Phosphate Battery by Rich Solar
7,000 Cycles. LiFePO4 Lithium Battery. 20 Year Lifespan
The RICH SOLAR 48V 100Ah lithium iron phosphate battery (Alpha 5 Server) has a much longer cycle life capacity and is easier to maintain than other battery technologies. This LiFePO4 technology improves battery safety and packs more power into a small and lightweight footprint.
Features:
- Extremely high number of charge/discharge cycles
- 20 Year lifespan with proper maintenance
- Built-in smart battery management system
- Wide operating temperature range
- Unsurpassed high temperature performance
- Green energy without metal contaminant
- Low maintenance
- High amp capacity
- Stable output voltage
- Little self-discharge
- Lifetime customer support
- Over charging or discharging protection.
- Over current & short circuit protection.
- High & low temperature disconnects
- Charge Voltage: 52.5V
- Max Charge Current: 100 A
- Max Discharge Current: 100 A
- Battery Dimensions: 19″L x 18 3/4″W x 5 1/4″H
- Weight: 130 lb
- Connect in Parallel for Larger Capacity
BMS Safety Protection
48V 100Ah LiFePO4 Deep Cycle Lithium Iron Phosphate Battery (Alpha 5 Server)
Specifications
Electrical Specifications
- Nominal Voltage: 48V
- Nominal Capacity(at .5C, 77°F): 100Ah
- Minimum Capacity (at .5C, 77°F): 95Ah
- Expected Cycle Life: >7000 cycles w/1C charge and discharge rate, at 77°F, 80% DOD
Operating Specifications
- Charge Method: Smart charger, constant current, constant voltage
- Operating Voltage: 48 V
- Capacity: 100 Ah
- Energy: 5000 Watt Hours
- Charge Voltage Range (Max 52.5V): 52.0 -52.5V
- Continuous Charge Current: 100A
- Continuous Discharge Current: 100A
- Over Voltage Shutdown: 52.5 +/-0.2V
- Discharge Cut-off Voltage: 42V =/- 0.5V
- Self Discharge (stored at 50% SOC): < 3%/month
Temperature Performance
- Charge Temperature: 32° F to 113° F
- Discharge Temperature: -4° F to 122° F
- Storage Temperature: -4° F to 122° F
- BMS High Temperature Cut-off: 149°F
- BMS Low Temperature Cut-off: 32°F
Physical Specifications
- Battery Dimensions: 19″L x 18 3/4″W x 5 1/4″H
- Weight: 130 lb
- Group Size: 15
BMS Operation
Over Charge Protection
- Over charge detection voltage: 3.9 +/- 0.05V
- Over charge detection delay time: 0.96 – 1.4s
- Over charge release voltage: 3.80 +/-0.05V
- Maximum charge voltage: 3.65 +/-0.05V
Over Discharge Protection
- Over discharge detection voltage: 2.0V +/- 0.05V
- Over discharge detection delay time: 115-173ms
- Over discharge release voltage: 2.3V +/- 0.10V
- Over Current Protection Over current detection delay time: 9 +/- 2ms
- Over current release condition: Cut load
Polarity Reverse Protection: Yes
Short Circuit Protection: Yes
Communication Ports: RS485/CAN
Warranty
10 Year Manufacturer Defect
Included:
- 1 foot RS485 communication cable
- Set of parallel cables per battery
- 4.8kWh (48V 100Ah) lithium iron phosphate battery
