Description

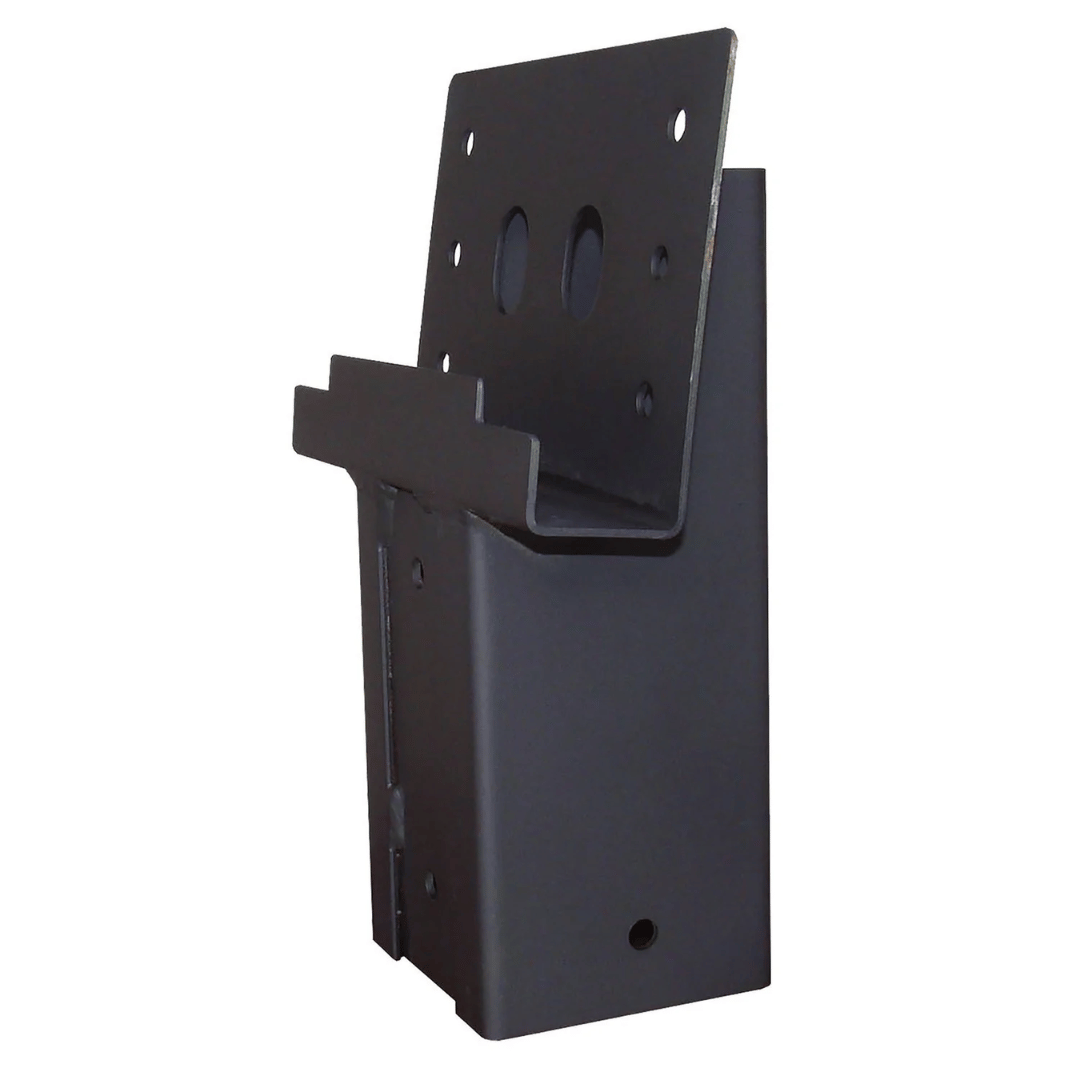

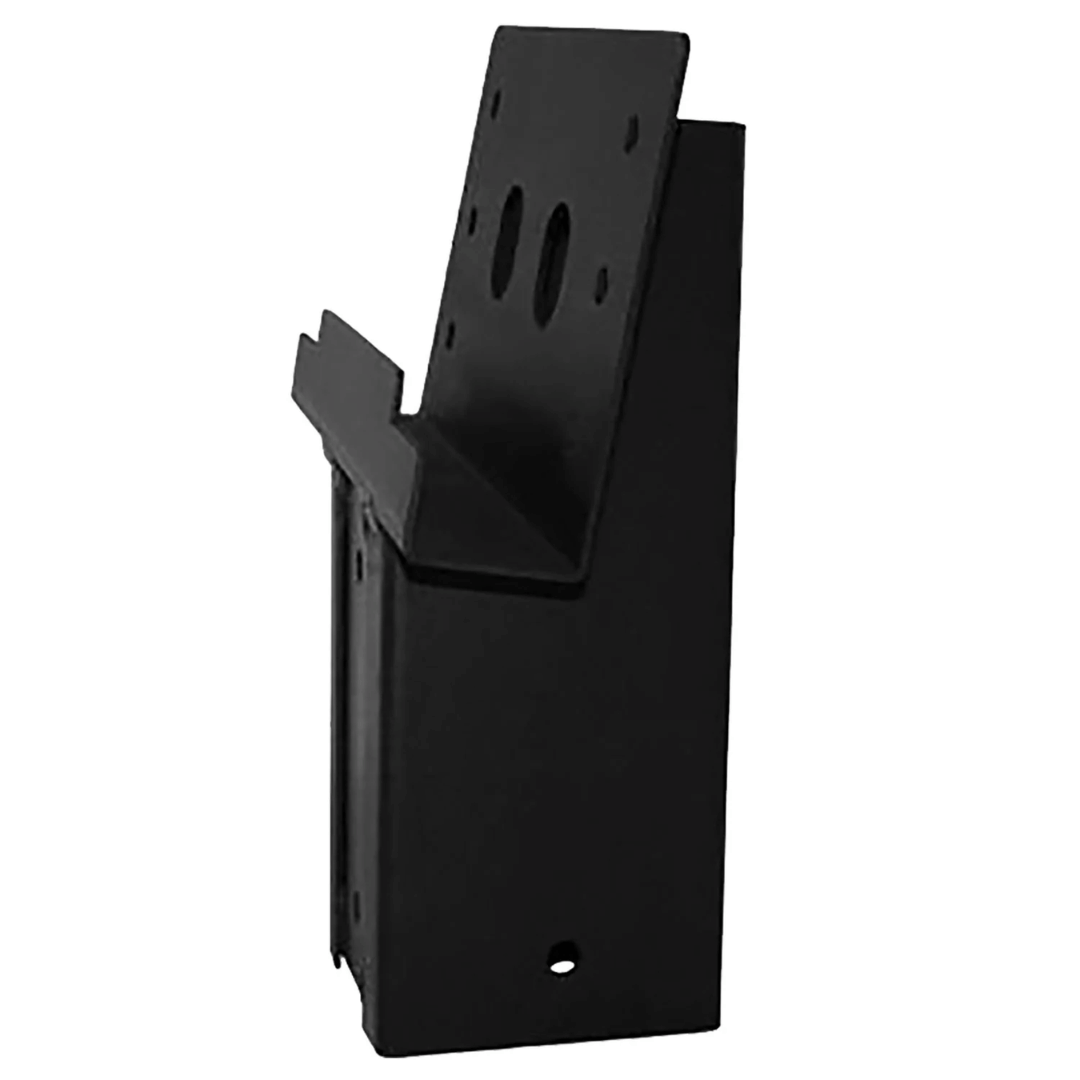

Single Angle Elevator Brackets: 4x4 US Steel Hardware for Ladder Stands & Benches
If you are building a ladder stand, a shooting bench, or a two-leg elevated structure where you need vertical offset without horizontal skew, the Single Angle Elevator Brackets are the ideal choice. When lateral wind load isn't your main concern, this streamlined bracket set delivers the same robotically welded, steel-grade hardware as our flagship tower brackets at a lighter weight and lower price point.

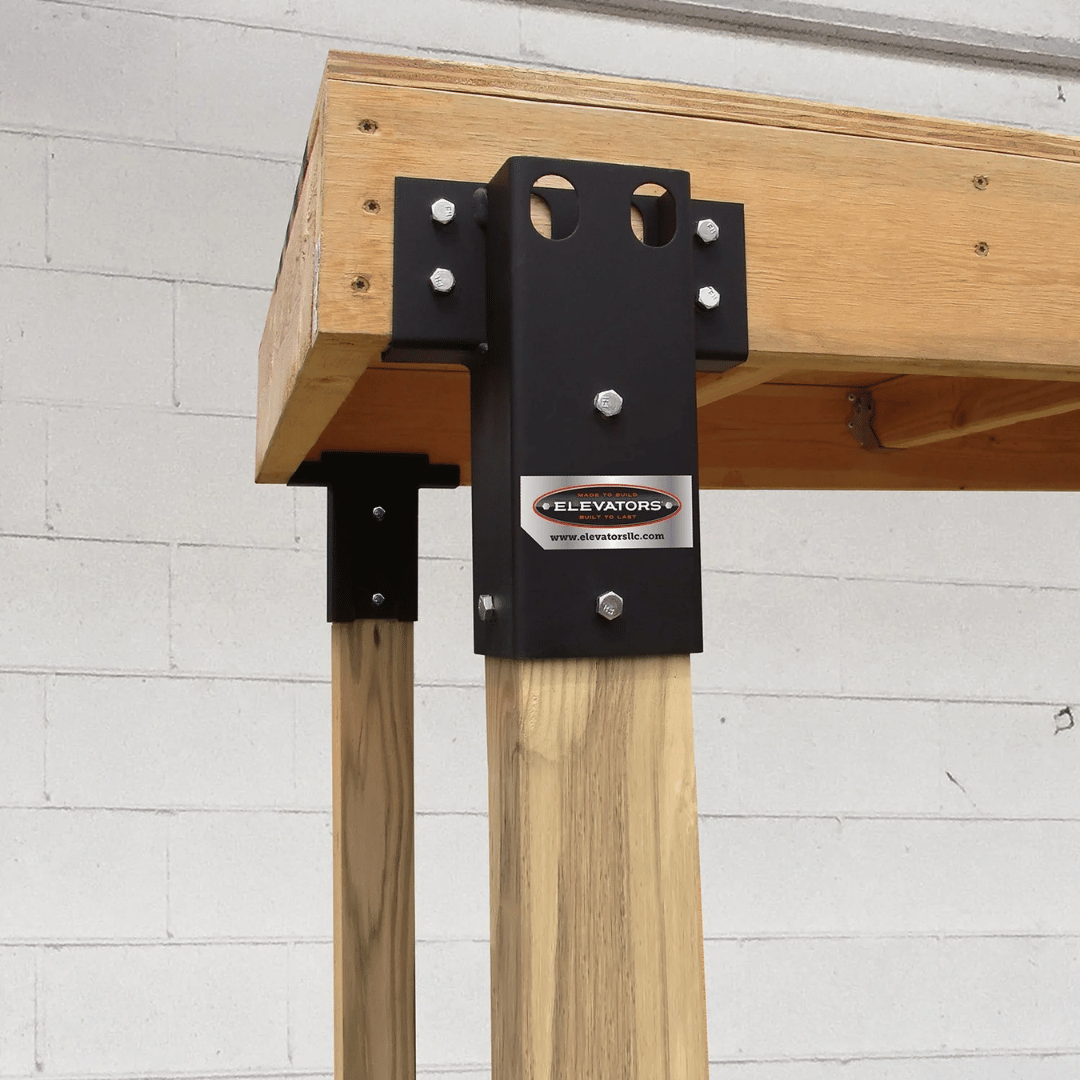

Bench rest builders love using them to set the front legs of a shooting platform at a true 8° forward lean, significantly improving stability when leaning into a shot. For anyone constructing an elevated structure on standard 4x4 lumber, this is the simplest, strongest, and most reliable option in the Elevators® lineup.
Premium USA-Made Construction & Engineered Slope
Generic hardware-store brackets simply cannot compete with the long-term resilience of properly engineered steel. These brackets are the gold standard for builders who prioritize no-compromise, rock-solid construction.
Key Features and Benefits
- 100% Certified US Steel: Precision hot-rolled to increase strength and durability. These brackets use premium domestic steel, verified for chemical composition and thickness.
- Robotically Welded: Every joint is robotically welded for consistent, code-strength performance that resists the flexing and settling of elevated builds.
- 8° Vertical Slope: The sleeve is scientifically optimized with an 8° slope angle. This offset distributes vertical load down through the post perfectly, reducing stress on your fasteners.
- Weatherproof Protection: Finished with an anti-corrosion powder coating to prevent rust and resist extreme temperatures.
Specifications & Installation
- Sleeve Dimensions: 4" x 4" x 5.25" (featuring an 8° vertical slope).
- Lumber Compatibility: Engineered to snugly fit standard nominal 4x4 pressure-treated lumber (actual dimensions 3.5" x 3.5").

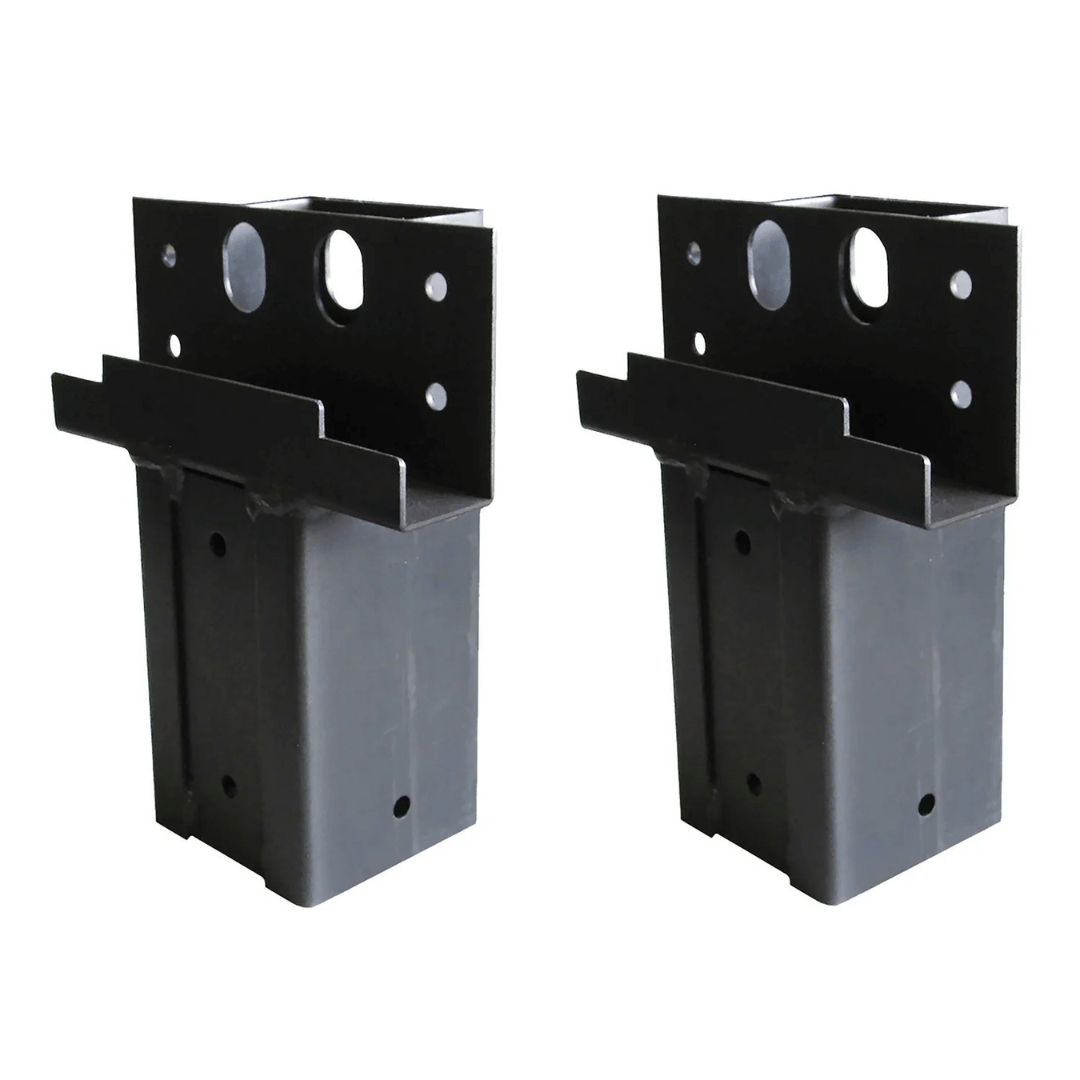

- Included: Set of two (2) single-angle brackets.

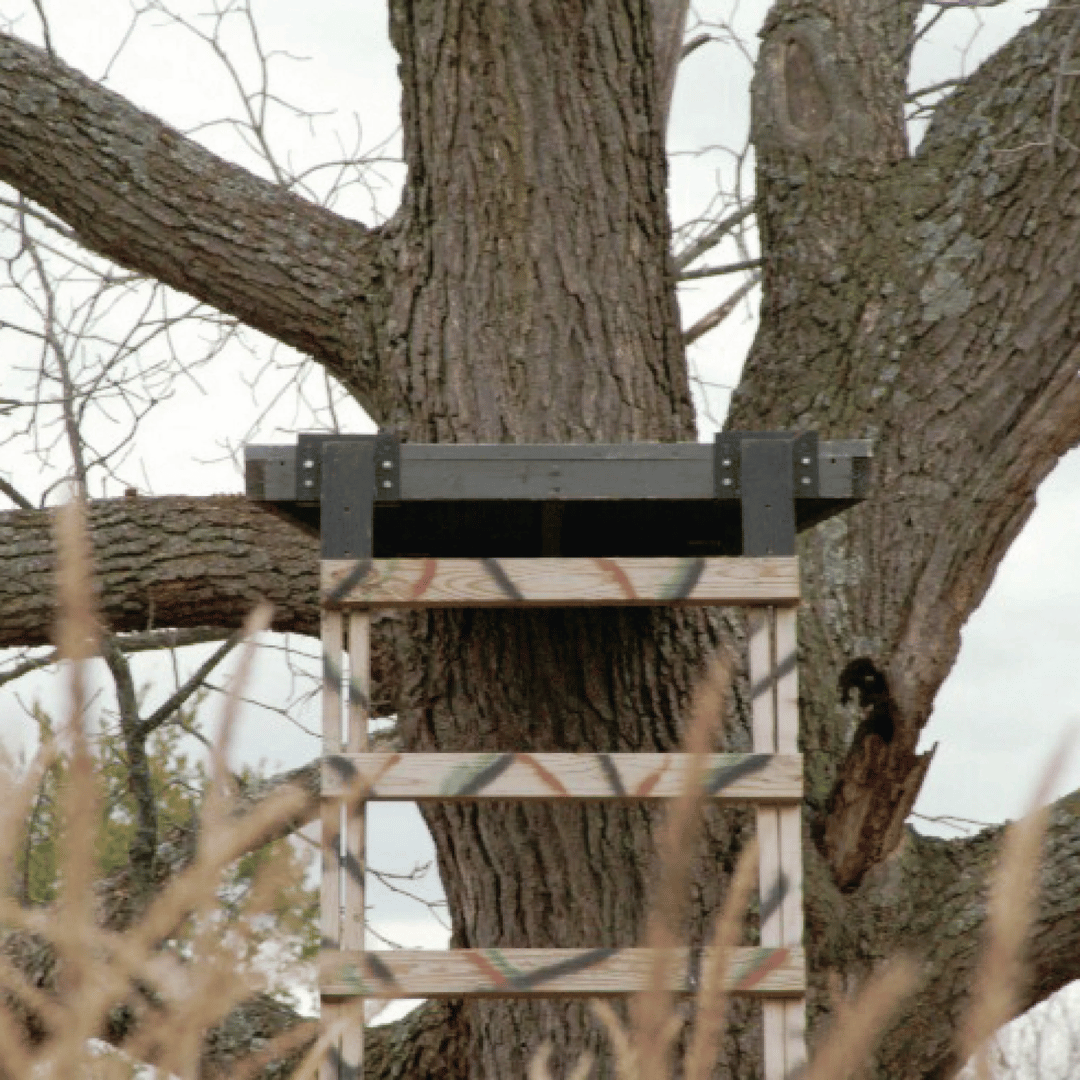

- Best For: Ladder stands, shooting benches, and two-leg elevated builds.
Have Questions? Chat, Call, or Text a Specialist Found a better price? We'll match or beat it!
1-844-945-3625
Frequently Asked Questions
What is the 8° slope angle for?
The 8° vertical offset scientifically distributes the load down through the post. This prevents the structure from settling unevenly over time and greatly reduces vertical stress on the fasteners.
Can I build a full hunting tower with just Single Angle brackets?
No. For a true 4-leg tower with a heavy box blind on top, you need the anti-sway geometry of our Double Angle Brackets. Single-angle brackets lack horizontal skew and are engineered specifically for ladder stands and shooting benches.
What size lumber fits these brackets?
The sleeves measure 4" x 4" x 5.25" and are designed to accept standard nominal 4x4 pressure-treated lumber (which measures 3.5" x 3.5" in actual dimensions).
How many brackets are included in this set?
Each set includes two (2) single-angle brackets, which is exactly the amount needed for a standard two-leg ladder stand or the front legs of a shooting bench.
