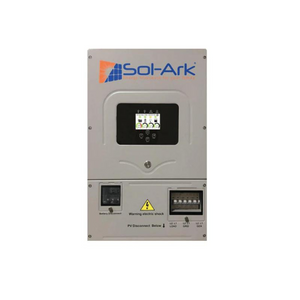

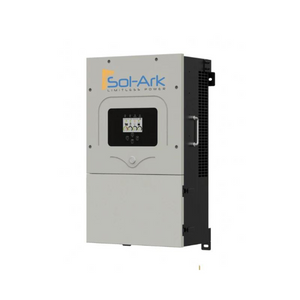

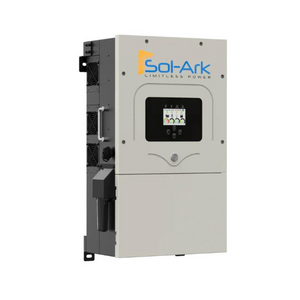

SOL-ARK 12K HYBRID SOLAR BATTERY SYSTEM


 12K HYBRID SOLAR BATTERY SYSTEM by SOL-ARK

The SOL-ARK 12K hybrid solar battery system combines the versatility of a standalone solar battery array with the convenience and flexibility of a home power grid. This intuitively designed system allows you to set your own electricity consumption levels while allowing you to monitor the status and performance of your battery efficiently through Wifi. It's also crucial that your battery saves sufficient power output to both recharge your home appliances and supply backup power when grid support is disrupted.

This powerful battery inverter is capable of powering up to 12000 Watts of solar power. It comes with a 10-year warranty.

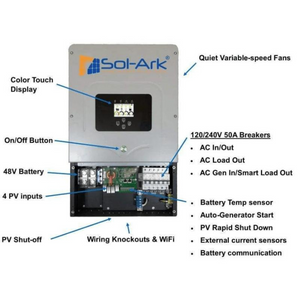

Sol-Ark 12K Hybrid Inverter Features:

  • 2 Built-In 500V Charge Controllers
  • 1 – 6 PV Strings
  • Battery Disconnect
  • 48V Battery Input
  • Auto-Generator Start
  • Rapid Shutdown Signal
  • Built-in Arc Fault and Ground Fault detection
  • Current Sensors Included
  • Battery Communication
  • PV Disconnect
  • Wiring Knockouts and & WiFi
  • 50A Breakers:
  • AC In/Out, AC Load Out
  • AC Gen In/Smart Load Out
  • 13kw Solar input (6500 per MPPT)
  •

    Titan Solar Generator User ManualSOL- ARK 12K USER MANUAL
    Titan Solar Generator User ManualSOL-ARK 12K SPECS SHEET
    Titan Solar Generator User ManualSOL-ARK 15K BROCHURE

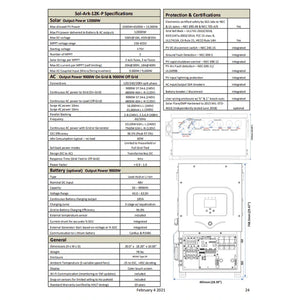

    SOL-ARK 12K HYBRID Specs

  • Max allowed PV DC Capacity - 6,500W+6,500W= 13,000W
  • Max PV power delivered to Battery & AC outputs -12,000 Watts
  • Max DC voltage - 500V@18A, 450V@20A
  • MPPT voltage range -150-425V
  • MPPT Starting Voltage -175V
  • Number of MPPT -2
  • Nominal AC Output Voltage -120/240/208V split phase
  • Peak Inverter Efficiency -97.5%
  • Continuous AC power to Grid (On-Grid) -9000W 37.5A L-L (255 V), 4800W 40A L-N (120V)
  • Continuous AC power to Loads (Off-Grid) - 8000W 33A L-L (240V ), 4800W 40A L-N (120V)
  • Battery Type -Lead-Acid or Li-Ion
  • Nominal DC  -Input 48V
  • Capacity -50 – 9900Ah
  • Grid to Battery Charging Efficiency -96.0%
  • Dimensions (H x W x D) -30.0” x 18.3” x 10.00”
  • Weight -78 lbs
  •

     Check out all our Sol-Ark Products here

    1. What is the Sol-Ark 12K Hybrid Solar Battery System?

    The Sol-Ark 12K Hybrid Solar Battery System is an all-in-one energy management system that combines solar power, battery storage, and backup power in a single unit. It is designed for residential and commercial applications and can provide reliable power during grid outages.

    2. What are the key features of the Sol-Ark 12K Hybrid Solar Battery System?

    The key features of the Sol-Ark 12K Hybrid Solar Battery System include advanced MPPT solar charge controllers, lithium iron phosphate battery technology, a built-in backup generator, and multiple AC and DC inputs and outputs. It also comes with a comprehensive monitoring and control system.

    3. What is the maximum power output of the Sol-Ark 12K Hybrid Solar Battery System?

    The Sol-Ark 12K Hybrid Solar Battery System has a maximum power output of 12,000 watts, which makes it suitable for powering a range of household and commercial appliances and equipment.

    4. How does the Sol-Ark 12K Hybrid Solar Battery System work?

    The Sol-Ark 12K Hybrid Solar Battery System works by converting solar energy into usable electricity through its MPPT solar charge controllers. The electricity is stored in the lithium iron phosphate battery bank and can be used to power appliances and equipment or to charge other devices. During grid outages, the system can switch to backup power mode and draw power from the built-in generator.

    5. What types of batteries are used in the Sol-Ark 12K Hybrid Solar Battery System?

    The Sol-Ark 12K Hybrid Solar Battery System uses high-quality lithium iron phosphate batteries, which are known for their safety, durability, and long lifespan. They are also more energy-efficient than traditional lead-acid batteries and require less maintenance.

    6. What is the capacity of the battery bank in the Sol-Ark 12K Hybrid Solar Battery System?

    The Sol-Ark 12K Hybrid Solar Battery System has a battery capacity of 48 volts and 100 ampere-hours, which provides ample energy storage for residential and commercial applications.

    7. How long does it take to install the Sol-Ark 12K Hybrid Solar Battery System?

    The installation time for the Sol-Ark 12K Hybrid Solar Battery System varies depending on the complexity of the installation and the experience of the installer. However, most installations can be completed in a day or two.

    8. Is the Sol-Ark 12K Hybrid Solar Battery System easy to operate?

    Yes, the Sol-Ark 12K Hybrid Solar Battery System is designed to be user-friendly and intuitive. It comes with a comprehensive monitoring and control system that allows users to monitor their energy usage and manage their power output with ease.

    9. What is the warranty on the Sol-Ark 12K Hybrid Solar Battery System?

    The Sol-Ark 12K Hybrid Solar Battery System comes with a 10-year warranty on the inverter and charge controllers and a 7-year warranty on the battery. This ensures that the system will perform as advertised for the duration of the warranty period.

    10. Can the Sol-Ark 12K Hybrid Solar Battery System be used in off-grid applications?

    Yes, the Sol-Ark 12K Hybrid Solar Battery System can be used off-grid, as it has the ability to store energy in its battery system for use during times when the solar panels are not producing energy.

    11. How long will the Sol-Ark 12K Hybrid Solar Battery System last?

    The Sol-Ark 12K Hybrid Solar Battery System is designed to last for 20-25 years with proper maintenance and care. It is built with high-quality components and undergoes rigorous testing to ensure durability and reliability.

    12. How is the Sol-Ark 12K Hybrid Solar Battery System installed?

    The Sol-Ark 12K Hybrid Solar Battery System is installed by a qualified electrician or solar installer. The system is designed to be easy to install, with step-by-step instructions provided in the manual. However, it is important to ensure that the system is installed correctly to prevent damage or safety hazards.

    13. What type of batteries are used in the Sol-Ark 12K Hybrid Solar Battery System?

    The Sol-Ark 12K Hybrid Solar Battery System uses lithium-ion batteries, which are known for their high energy density, long lifespan, and low maintenance requirements. They are also safer and more environmentally friendly than traditional lead-acid batteries.

    14. Can I add more solar panels to the Sol-Ark 12K Hybrid Solar Battery System?

    Yes, the Sol-Ark 12K Hybrid Solar Battery System can accommodate additional solar panels, up to a maximum of 12kW. This allows for greater flexibility in system design and the ability to expand the system as needed.

    15. How does the Sol-Ark 12K Hybrid Solar Battery System handle power outages?

    The Sol-Ark 12K Hybrid Solar Battery System has the ability to provide backup power during a power outage, as it can store energy in its battery system for use when the grid is down. This ensures that critical loads, such as medical equipment or refrigerators, can continue to operate even when the power is out.

    16. How does the Sol-Ark 12K Hybrid Solar Battery System compare to other solar systems?

    The Sol-Ark 12K Hybrid Solar Battery System is considered to be one of the most advanced and versatile solar systems on the market. It combines the benefits of a solar panel system, battery storage, and backup power in one compact and easy-to-use package.

    17. Is the Sol-Ark 12K Hybrid Solar Battery System compatible with other solar panels?

    Yes, the Sol-Ark 12K Hybrid Solar Battery System is compatible with most solar panels on the market. This allows for greater flexibility in system design and the ability to choose the solar panels that best meet your needs and budget.

    18. How can I monitor the performance of my Sol-Ark 12K Hybrid Solar Battery System?

    The Sol-Ark 12K Hybrid Solar Battery System comes with a monitoring system that allows you to track its performance in real-time. The system includes a web-based portal that displays detailed information about your energy usage, battery status, solar production, and more. You can access the portal from any device with an internet connection and monitor your system's performance from anywhere in the world. In addition, the system also sends alerts via email or text message if any issues arise with your system's performance.
