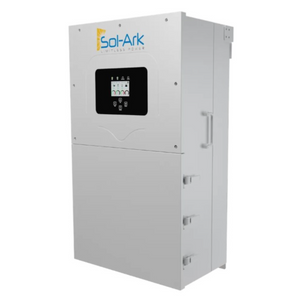

SOL-ARK 15K HYBRID SOLAR BATTERY SYSTEM


 12K HYBRID SOLAR BATTERY SYSTEM by SOL-ARK

The SOL-ARK 15K hybrid solar battery system combines the versatility of a standalone solar battery array with the convenience and flexibility of a home power grid. This intuitively designed system allows you to set your own electricity consumption levels while allowing you to monitor the status and performance of your battery efficiently through Wifi. It's also crucial that your battery saves sufficient power output to both recharge your home appliances and supply backup power when grid support is disrupted.

This powerful battery inverter is capable of powering up to 17000 Watts of solar power. It also comes with a 10-year warranty.

Sol-Ark 12K Hybrid Inverter Features:

  • Transformerless inverter
  • Pure sine wave
  • 120/240/208V
  • Grid-tie, off-grid, or hybrid applications (can be with or without batteries)
  • Wide variety of 48V battery chemistries, from lead to lithium
  • Simultaneously manages power to battery, loads, and grid
  • Expandable
  • Highly efficient
  • Color touch screen
  • Remote monitoring from a smart device
  • Battery disconnect
  • Battery temp sensor
  • Auto-generator start
  • Rapid shut down signal
  • Current sensors
  • Battery communication
  • PV Disconnect
  • Wiring knockouts
  • WiFi
  • Titan Solar Generator User ManualSOL-ARK 15K USER MANUAL
    Titan Solar Generator User ManualSOL-ARK 15K SPECS SHEET
    Titan Solar Generator User ManualSOL-ARK 15K BROCHURE


    SOL-ARK 15K HYBRID Specs

  • Max allowed PV DC Capacity -17,000W
  • Max PV power delivered to Battery & AC outputs -15,000 Watts
  • Max DC voltage - 500V@26A
  • MPPT voltage range -125-425V
  • MPPT Starting Voltage -125V
  • Number of MPPT -3
  • Max Solar Strings Per MPPT - 2
  • Max DC Current per MPPT (Self Limiting) -26A
  • Max AC Coupled Input (Micro/String Inverters) -19,200W
  • Nominal AC Output Voltage -120/240/208V split phase
  • Continuous AC Power from PV -15,000W 62.5A-L (240V)
  • Continuous AC Power from Batteries -12,000W 50A-L (240V)
  • Surge AC Power 10 seconds - 24,000VA L-L (240V)
  • Surge AC Power 100ms - 30,000VA L-L (240V)
  • Parallel Stacking -Yes - Up to 12
  • Frequency -60/50Hz
  • Continuous AC Power with Grid or Generator - 48,000 W 200A L-L(240V), 24,000 W 200A L-L (120V)
  • CEC Efficiency - 96.5% (Peak 97.5%)
  • Idle Consumption Typical - No Load -90W
  • Sell Back Power Modes -Limited to Household / Fully-Grid-Tied
  • Battery Type -Lead-Acid or Li-Ion
  • Communication to Lithium Battery -CanBus & RS485
  • Nominal DC Input -48V
  • Capacity -50 – 9900Ah
  • Voltage Range -43.0 - 63.0V
  • Continuous Battery Charging Output -275A
  • Charging Curve -3-Stage w/ Equalization
  • Grid to Battery Charging Efficiency - 96.0%
  • Dimensions (H x W x D) - 31.8” x 183” x 10.9”
  • Weight -85 lbs
  •

     Check out all our Sol-Ark Products here

    A Brief Overview of the U.S. Home Energy Tax Credit

    Discover the financial advantages of the U.S. federal solar tax credit for homeowners considering installing a solar system in their main residence. This incentive provides a 30% discount on the current cost of a solar system. If you've set up a system in 2022, it's advisable to speak with your tax consultant to see if you're eligible for a higher credit rate.

    Understanding the U.S. Federal Solar Tax Credit:

    This tax credit is tailored for homeowners and applies to solar systems installed in primary homes. The credit covers a percentage of qualifying expenses, and thanks to the recent Inflation Reduction Act, the scope of the Investment Tax Credit (ITC) has broadened. Solar systems installed from 2022 to 2032 are eligible for a 30% tax credit, which will drop to 26% in 2033 and 22% in 2034. There's no cap on the amount you can claim.

    What Expenses Are Eligible:

    Qualifying expenses include solar photovoltaic panels, attic fan power systems (except for the fan itself), labor costs for installation and setup, balance-of-system components, and applicable sales taxes. Standalone batteries with a capacity of 3 kWh or more may also be eligible! For instance, if the solar system you initially purchase includes a single battery with a capacity of less than 3 kWh, but you also buy extra batteries during the installation process that bring the total capacity to more than 3 kWh, then the entire setup may be eligible for the tax credit.

    How to Determine Your Eligibility:

    To confirm your eligibility for this federal solar credit, review the guidelines set forth by the U.S. Department of Energy and consult your tax advisor.

    Steps to Claim the U.S. Federal Solar Tax Credit:

    1. Verify Eligibility: Speak with your tax advisor to confirm your eligibility and to understand how to make the most of the credit.

    2. Fill Out IRS Form 5695: This form, available online, is specifically for claiming renewable energy credits. Guidelines for completing the form are provided.

    3. Apply Credits on Your 1040: Use the total credit amount from Form 5695 to lessen your tax liability on your Form 1040.

    Disclaimer:

    Always consult your tax expert to fully understand your eligibility for tax credits based on your unique situation. Wild Oak Trail offers this guide for educational purposes and does not assure tax credits based on the information given. This resource should not replace professional tax or financial advice and should not be the only factor in your purchasing, investment, or tax choices. Consult a tax expert for a personalized evaluation.

    Additional Resources:
