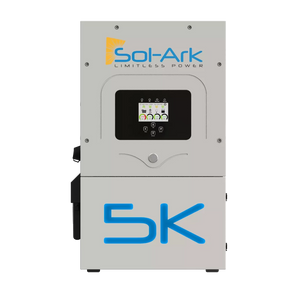

Sol-Ark 5K Hybrid Inverter

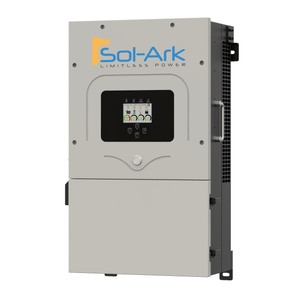

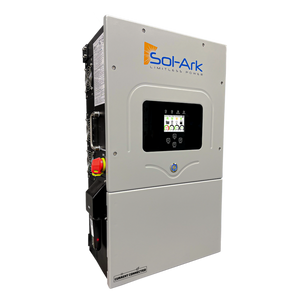

SOL-ARK 5K HYBRID SOLAR BATTERY SYSTEM
SOL-ARK 5K HYBRID SOLAR BATTERY SYSTEM
SOL-ARK 5K HYBRID SOLAR BATTERY SYSTEM

Sol-Ark

SOL-ARK 5K HYBRID SOLAR BATTERY SYSTEM

$4,850.00

FREE SHIPPING WITHIN THE LOWER 48
NO TAX! LOWEST PRICE GUARANTEED!

We're happy to hear from you! We would be glad to answer any of your questions.
Call 1-844-945-3625

Sol-Ark 5K Hybrid Solar Battery System by Sol-Ark

The SOL-ARK 5K hybrid solar battery system combines the versatility of a standalone solar battery array with the convenience and flexibility of a home power grid. This intuitively designed system allows you to set your own electricity consumption levels while allowing you to monitor the status and performance of your battery efficiently through Wifi. It's also crucial that your battery saves sufficient power output to both recharge your home appliances and supply backup power when grid support is disrupted.

This powerful battery inverter is capable of powering up to 6,500 Watts of solar power.

Features:

Solar

  • Max allowed PV Power : 6500W (2x 3250)
  • Max allowed PV Power per MPPT  : 3250W
  • Max DC voltage  : 500V
  • MPPT voltage range  : 150-425V
  • Starting voltage  : 175V
  • Number of MPPT  : 2
  • Solar Strings per MPPT  : 2
  • Max DC current per MPPT  : 10A (self limiting)
  • Max AC Coupled Input (Micro/String Inverters) : 9.600W
  • Max Combined Solar Input (DC+AC)  : 13,000W

AC Output

  • Connections  : 120/240V split phase
  • Continuous AC power to Grid (Grid-Tie)  : 5000W (240V)  / 3500W (120V)
  • Continuous AC power to Loads (Off-Grid)  : 5000W (240V)  / 3500W (120V)
  • Surge AC power 10sec  : 16,000VA (240V)  / 25,000VA (120V)
  • Frequency  : 60/50Hz
  • Continuous AC power w/ Grid or Gen  : 15,120W / 63A (240V)  / 7,560W 63A (120V)
  • CEC Efficiency  : 96.5% (Peak 97.5%)
  • Idle Consumption typical – no load  : 60W
  • Sell back power modes  : Limited to Household or Full Grid-Tied
  • Design (DC to AC)  : Transformerless DC
  • Response Time (Grid-Tied to Off-Grid)  : 4ms
  • Power Factor  : +-0.9 – 1.0

General

  • Dimensions (H x W x D) 30” x 18.3” x 10”
  • Weight : 75 lbs
  • Enclosure : NEMA type 1 (Indoor Use)
  • Ambient Temperature (4 variable speed fans) -25 to 55C, >45C derating
  • Display : Color touch screen
  • Wi-Fi Communication (monitoring or SW updates) : Integrated
  • Snap on sensors for limited selling to Household  : Included
  • Standard Warranty : 5 years
  • Optional Extended Warranty : 10 years

SOL- ARK 5K HYBRID SOLAR BATTERY SYSTEM USER MANUAL

 

SOL-ARK SPECS SHEET
