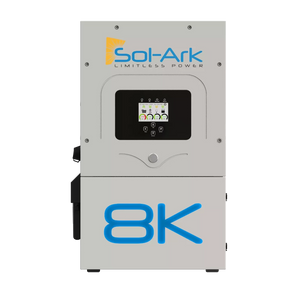

SOL-ARK 8K HYBRID SOLAR BATTERY SYSTEM


Sol-Ark 8K Hybrid Solar Battery System by Sol-Ark

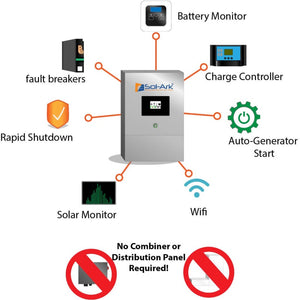

 Sol-Ark 8k Hybrid Inverter System is simple to install to a grid-tied, off-grid and battery backup solar systems. The Sol-Ark 8K retains all of the benefits of solar power and adds a feature set that allows utilities to manage power to and from Solar, Battery, Grid, Loads, and Generators.

This powerful battery inverter is capable of powering up to 8,000 Watts of solar power.

Features:

Solar

  • Max allowed PV Power : 11000W (2x 5500)
  • Max allowed PV Power per MPPT  : 8,000W
  • Max DC voltage  : 500V
  • MPPT voltage range  : 150-425V
  • Starting voltage  : 125V
  • Number of MPPT  : 2
  • Solar Strings per MPPT  : 2
  • Max DC current per MPPT  : 20A (self limiting)
  • Max AC Coupled Input (Micro/String Inverters) : 9600W

AC Output

  • Connections  : 120/240V split phase
  • Continuous AC power to Grid (Grid-Tie)  : 8000W (240V)
  • Continuous AC power to Loads (Off-Grid)  : 8000W (240V)
  • Surge AC power 10sec  : 16,000VA L-L(240V)
  • Surge AC Power 100ms : 25,000VA L-L(240V)
  • Frequency  : 60/50Hz
  • Continuous AC power w/ Grid or Gen  : 15,120W / 63A (240V)  / 7,560W 63A (120V)
  • CEC Efficiency  : 96.5% (Peak 97.5%)
  • Idle Consumption typical – no load  : 60W
  • Sell back power modes  : Limited to Household or Full Grid-Tied
  • Design (DC to AC)  : Transformerless DC
  • Response Time (Grid-Tied to Off-Grid)  : 4ms
  • Power Factor  : +-0.9 – 1.0

General

  • Dimensions (H x W x D) 30” x 18.3” x 10”
  • Weight : 75 lbs
  • Enclosure : NEMA 3R (Indoor Use)
  • Ambient Temperature : -25 to 55C, >45C derating
  • Display : Color touch screen
  • Wi-Fi Communication (monitoring or SW updates) : Integrated
  • Snap on sensors for limited selling to Household  : Included
  • Installation Style : Wall-Mounted

    SOL- ARK 8K HYBRID SOLAR BATTERY SYSTEM USER MANUAL


    SOL-ARK 8K SPEC SHEET

    A Brief Overview of the U.S. Home Energy Tax Credit

    Discover the financial advantages of the U.S. federal solar tax credit for homeowners considering installing a solar system in their main residence. This incentive provides a 30% discount on the current cost of a solar system. If you've set up a system in 2022, it's advisable to speak with your tax consultant to see if you're eligible for a higher credit rate.

    Understanding the U.S. Federal Solar Tax Credit:

    This tax credit is tailored for homeowners and applies to solar systems installed in primary homes. The credit covers a percentage of qualifying expenses, and thanks to the recent Inflation Reduction Act, the scope of the Investment Tax Credit (ITC) has broadened. Solar systems installed from 2022 to 2032 are eligible for a 30% tax credit, which will drop to 26% in 2033 and 22% in 2034. There's no cap on the amount you can claim.

    What Expenses Are Eligible:

    Qualifying expenses include solar photovoltaic panels, attic fan power systems (except for the fan itself), labor costs for installation and setup, balance-of-system components, and applicable sales taxes. Standalone batteries with a capacity of 3 kWh or more may also be eligible! For instance, if the solar system you initially purchase includes a single battery with a capacity of less than 3 kWh, but you also buy extra batteries during the installation process that bring the total capacity to more than 3 kWh, then the entire setup may be eligible for the tax credit.

    How to Determine Your Eligibility:

    To confirm your eligibility for this federal solar credit, review the guidelines set forth by the U.S. Department of Energy and consult your tax advisor.

    Steps to Claim the U.S. Federal Solar Tax Credit:

    1. Verify Eligibility: Speak with your tax advisor to confirm your eligibility and to understand how to make the most of the credit.

    2. Fill Out IRS Form 5695: This form, available online, is specifically for claiming renewable energy credits. Guidelines for completing the form are provided.

    3. Apply Credits on Your 1040: Use the total credit amount from Form 5695 to lessen your tax liability on your Form 1040.

    Disclaimer:

    Always consult your tax expert to fully understand your eligibility for tax credits based on your unique situation. Wild Oak Trail offers this guide for educational purposes and does not assure tax credits based on the information given. This resource should not replace professional tax or financial advice and should not be the only factor in your purchasing, investment, or tax choices. Consult a tax expert for a personalized evaluation.
